RIVKLE
®
– Pressure controlled installation equipment

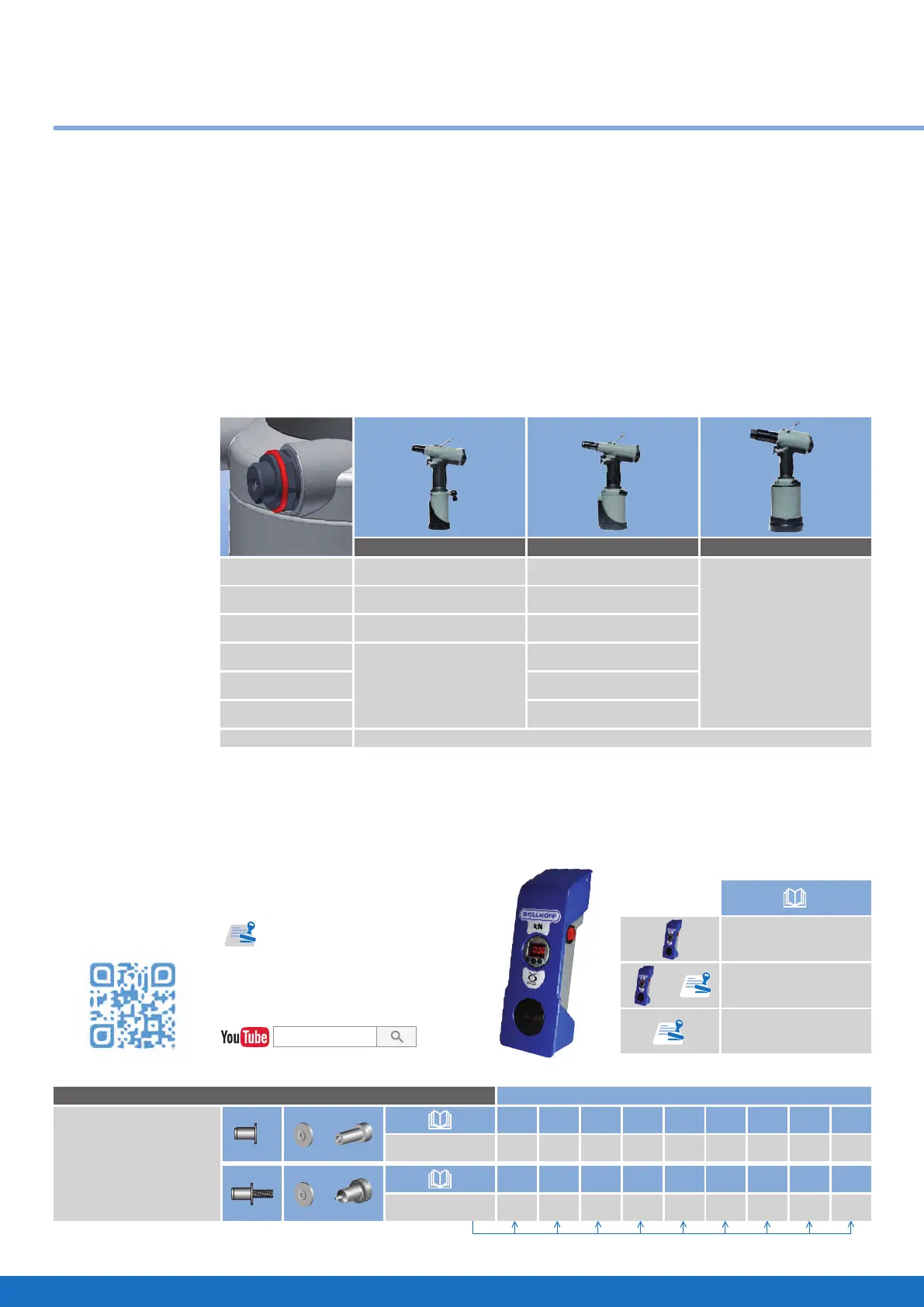

RIVKLE
®
- Force controller and cartridges
It is possible to lock the setting force at a preset value on all RIVKLE
®
PX007 & RIVKLE
®
EPX009 tools using
preset cartridge unit. We call it preset cartridge tool.
2 possibilities:
1- Order the complete tool already equipped with preset cartridge, adjusted by BÖLLHOFF using the generic code
282 52 000 005. Please indicate the type of tool you want (RIVKLE
®
P1007/P2007/P3007).
2- Order the cartridge alone and set it yourself for an existing or brand new tool, using force indicator (see page 20).
Please refer to the tab bellow to choice the adapted cartridge.
F = 3 000 N => 40 000 N (+/-3%)
282 52 214 000
282 52 214 800
282 52 214 900
+
RIVKLE FC340
RIVKLE
®
FC340 - FORCE CONTROLLER
This controller indicates the direct force the tool is actually applying to the mandrel. It allows for a very precise adjustment
for hydraulic/pneumatic installation tools, using colors (RIVKLE
®
PX007).
By frequently checking the force on the tool during production, you guarantee the quality of the setting, avoiding operator
adjustments.
= certification
Adjustment tooling kit: 236 15 600 452
4 000 N
8 000 N
12 000 N
16 000 N
19 000 N
22 000 N
236 15 700 304
RIVKLE
®
P1007 RIVKLE
®
P2007
236 15 700 303
236 15 700 302
–
–
236 15 600 309
236 15 600 308
236 15 600 306
236 15 600 307
236 15 600 305
RIVKLE
®
P3007
236 15 900 302
CARTRIDGES
03 04 05 06 08 10 12 14 16
282 52 214 1XX
M3 M4 M5 M6 M8 M10 M12 M14 M16
- 204 205 505 206 506 208 508 210
282 52 214 XXX
- M4 M5 D5 M6 D6 M8 D8 M10
Ø RIVKLE
®
+
+
Washer + Nut
TOOLING KIT
Tooling for RIVKLE
®
UNC and RIVKLE
®
UNF available on demand. Select the kit for your required size.
