21
RIVKLE
®

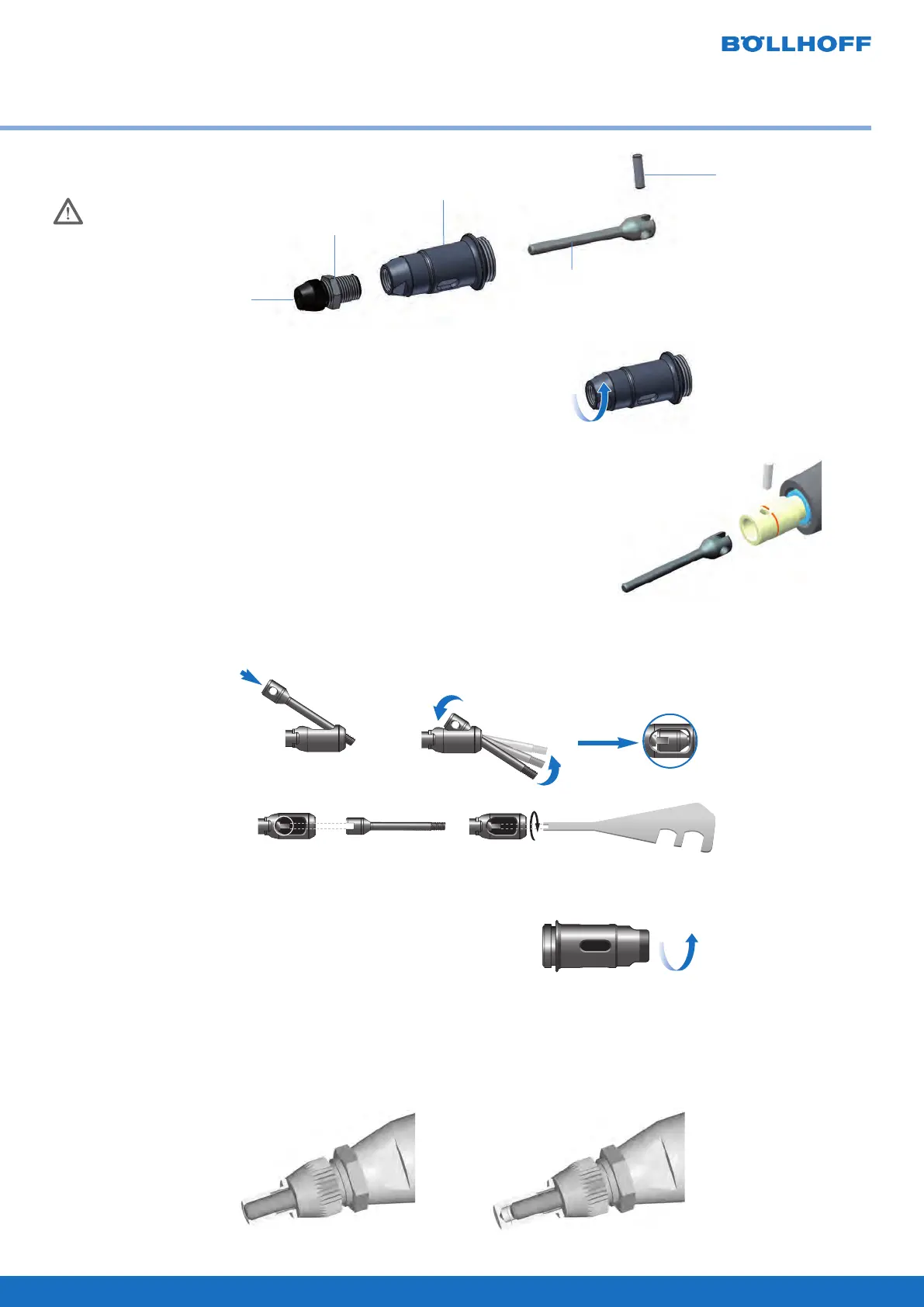

– How to?
Pin
Mandrel
Nose cone
Anvil
Lock Nut
1- Unscrew the nose cone from the tool
Use the dedicated key from the tool box if necessary
2- To install the mandrel on the tool
2.1 - For RIVKLE
®
P1007 / P2007 and P3007 (& RIVKLE
®
EPX009)
Turn the ring so that the open end is in front of the pin hole.
Insert the mandrel into the driveshaft and align both holes to push the pin in.
3- Retighten the nose
Tighten to about 15 Nm
4- Adjust the anvil according to RIVKLE
®
length
• The position of the anvil should be adjusted as shown in figures
• After adjustment, tighten the anvil locknut (2) to 10 Nm.
Tooling change
OPEN RIVKLE
®
CLOSED END RIVKLE
®
Flush mandrel on the end of the RIVKLE
®
Thread root single-turn rod
Figure 1 - Mandrel alignment
Pos. 236 16 600 213
2.2 - For RIVKLE
®
B2007
Insert mandrel in the fork aligning the back side groove with the screwing driver (see in figure 1).
CAREFULL: grease (Multipurpose grease) has to be applied between fork and mandrel.
OK
Read the safety
instruction manual.
Disconnect from
power supply
(battery or air).
RK HANDTOOLS EN:Mise en page 1 25/11/19 13:34 Page 21
