Instruction Manual for F1300/1600 Mud Pump
50
Drawing No.
Item Qty Description
F-1300 F-1600
R1
1
Gear ring (split
one)
AH1301010218 AH1601010108
R2
12
Bolt 1 1/2-8UN×
7
420501036160200000 420501036160200000

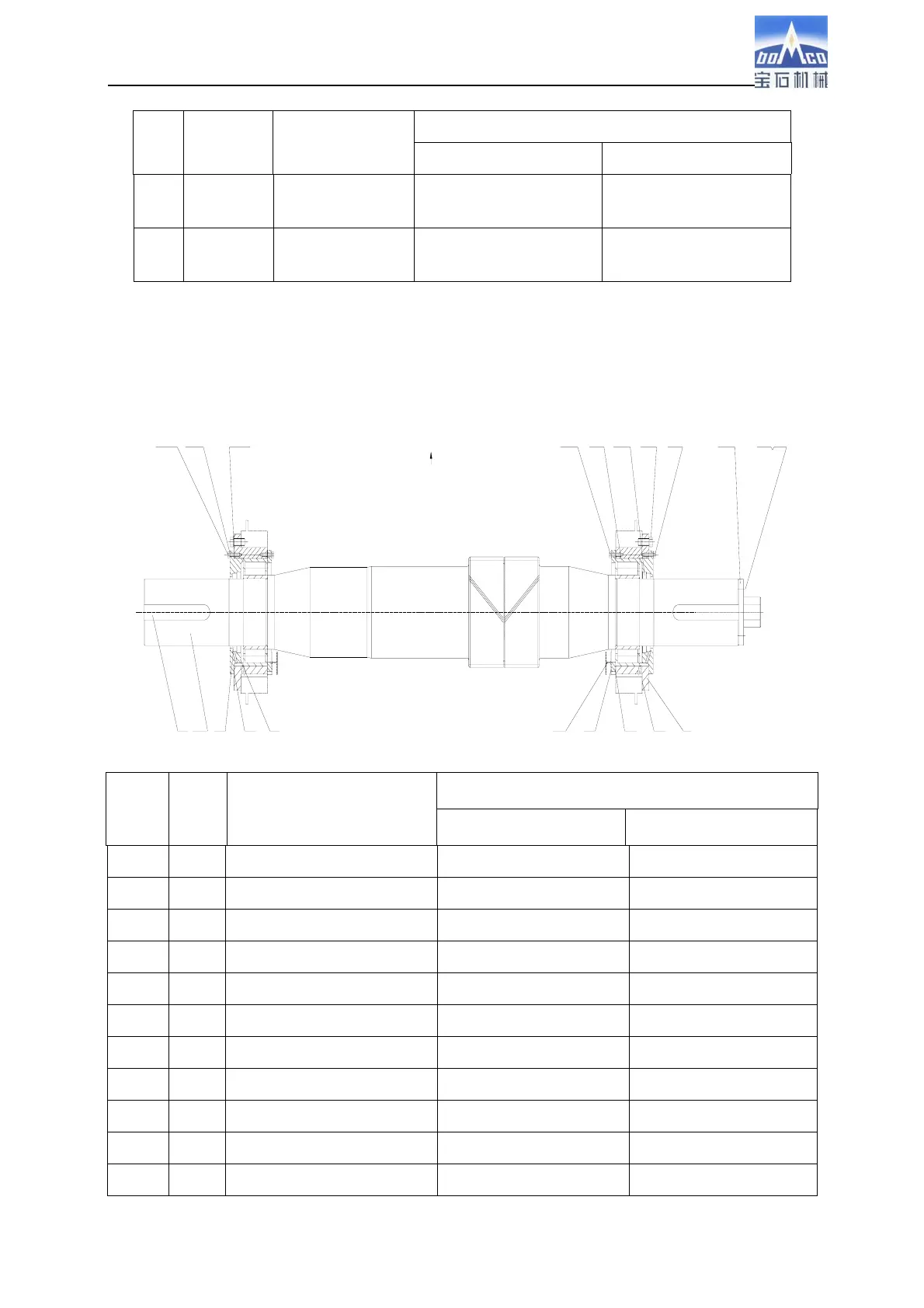

F-1300/1600 Pinion Shaft Assembly
Drawing No.
Item Qty Description
F-1300 F-1600
1
1
Key 2″×2″×11 3/8″
AH1301020301 AH1301020301
2
1
Pinion shaft
AH1301020302 AH1601020201
3
2
Wear-resisting sleeve
AH1301010303 AH1301010303
4
2
End cover
AH1301020303 AH1301020303
5
2
Gasket
AH1301010305 AH1301010305
6
2
Gasket
AH1301010306 AH1301010306
7
2
Pinion bearing carrier
AH1301010306 AH1301010306
8
2
Retainer ring
AH1301020305 AH1301020305
9
2
Gasket
AH1301010309 AH1301010309
10
2
Oil box
AH130101031000 AH130101031000
11
24
Bolt 1/2-13UNCX1 3/8
T500-1019 T500-1019
1
2
11
16
4
3
5
15
10
12
9
68
1415
11
13
7
11
16
19
Fluid End
