BONAIRE 5000D - Unit Installation; 3.1 Down Discharge installation

INSTALLATION INSTRUCTIONS
7
Unit Installation
3.1 Down Discharge installation
The evaporative cooler will be delivered with the fan motor assembly installed in “down
discharge” mode. See the image below.
The air will be directed downwards when installed in this configuration.
NOTE: This cooler is suitable for use with 17 ¾” and 19 ¾” duct sizes.

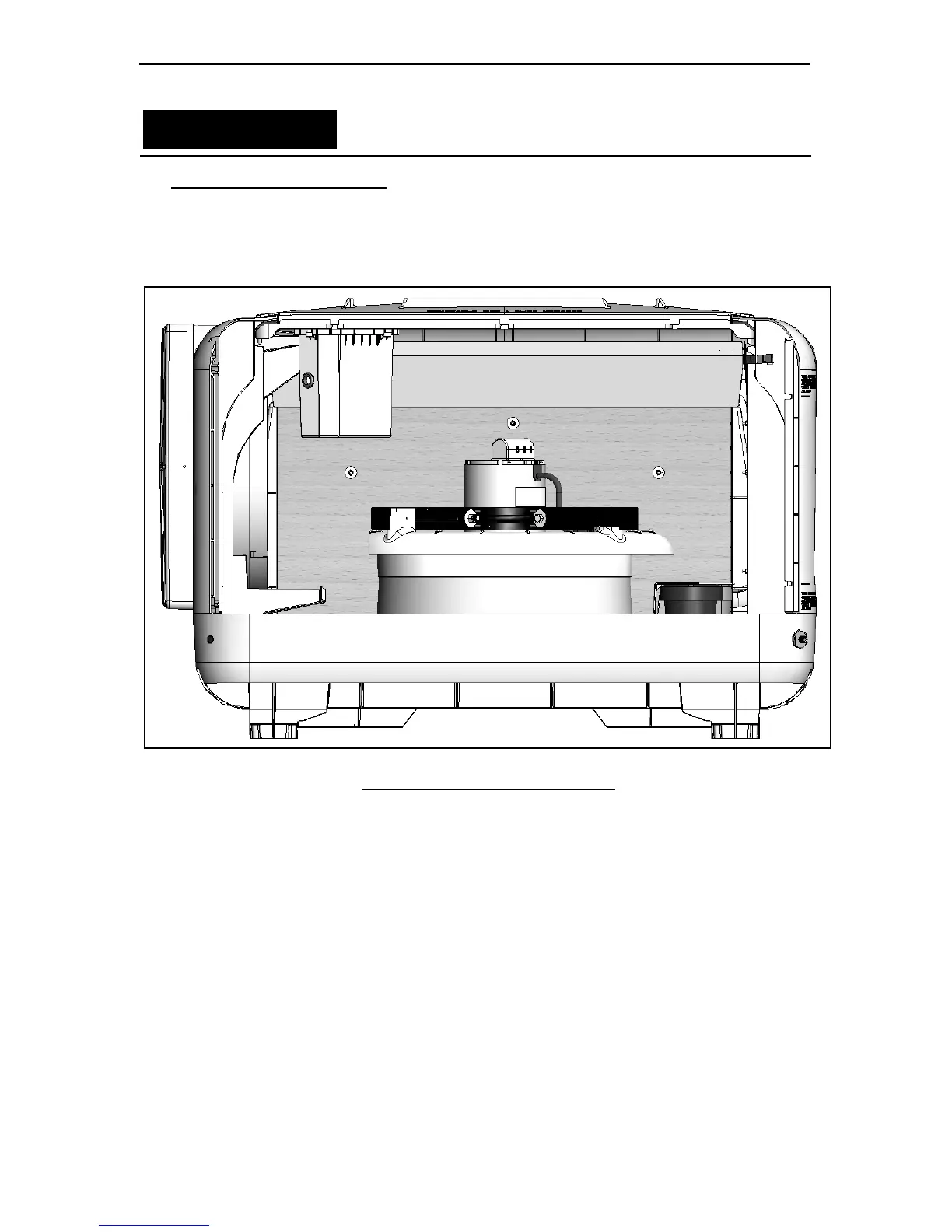

Down discharge configuration
