3.4 Converting from Down Discharge to Side Discharge Installation
NOTE: Handle the fan/venturi assembly with care, as the fan blade is not protected by
the venturi once removed.
The evaporative cooler has been designed to allow for the discharge configuration to be
changed to “side discharge” mode.
The air will be directed to the side in this configuration.
a. Always turn off power and unplug the fan motor and pump inside the cooler before
installation or maintenance.

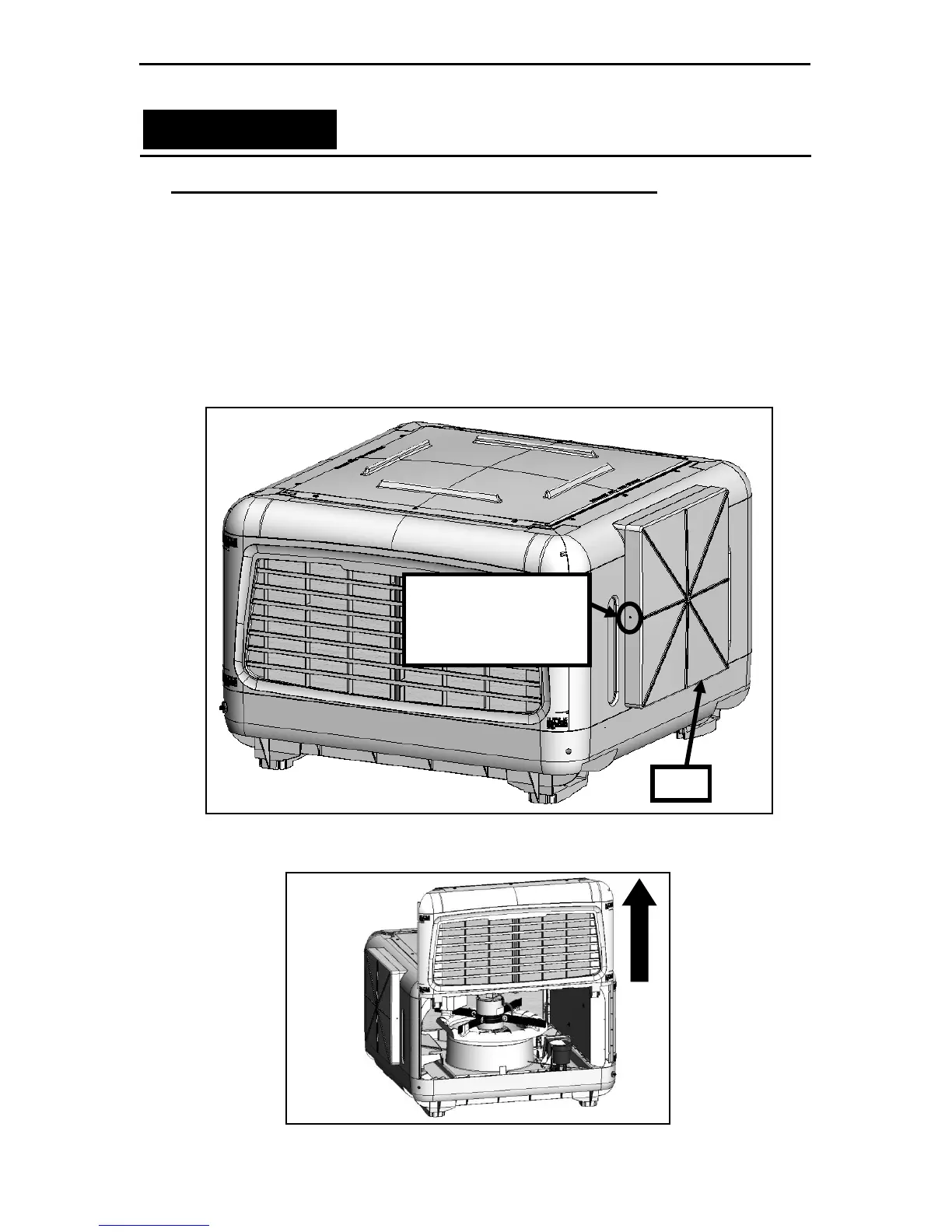

b. Remove the 2 screws from the each side of the cap to allow removal.
c. Remove and retain the cap.
d. Remove the lid screws and then remove the grill on the opposite side of the side
discharge grill.
