3
TYPE
RATIO 1/ SERIAL N°
DRWG. N° DATE
COD. N° MADE IN ITALY
Manufacturer
Product identification
Bonfiglioli Trasmital product code
Reduction ratio
Serial number
Installation drawing code.
Date of manufacture
Client product code
Readability of the nameplate
The nameplate and the information on it must be readable and, consequently must be cleaned from time
to time.
Quote the nameplate data in all communications with the manufacturer, for example, when reque
-
sting spare parts, information and assistance.
Nameplate data
Supplementary nameplate on ATEX-specified gear units
EC-Cert. No.
Gearbox compliant with
ATEX Directive 94/9/EC-GROUP II
2G CATEGORY - T4 Temperature
2D CATEGORY - 135° C Temperature
EX9 04 07 53387 001
1.2 - PRODUCT IDENTIFICATION
The information identifying the product is shown on its nameplate. Gearmotors are equipped with two name
-
plates; one on the gear unit which bears the gear unit data, and one on the motor (electric or hydraulic), bea
-
ring the motor data.

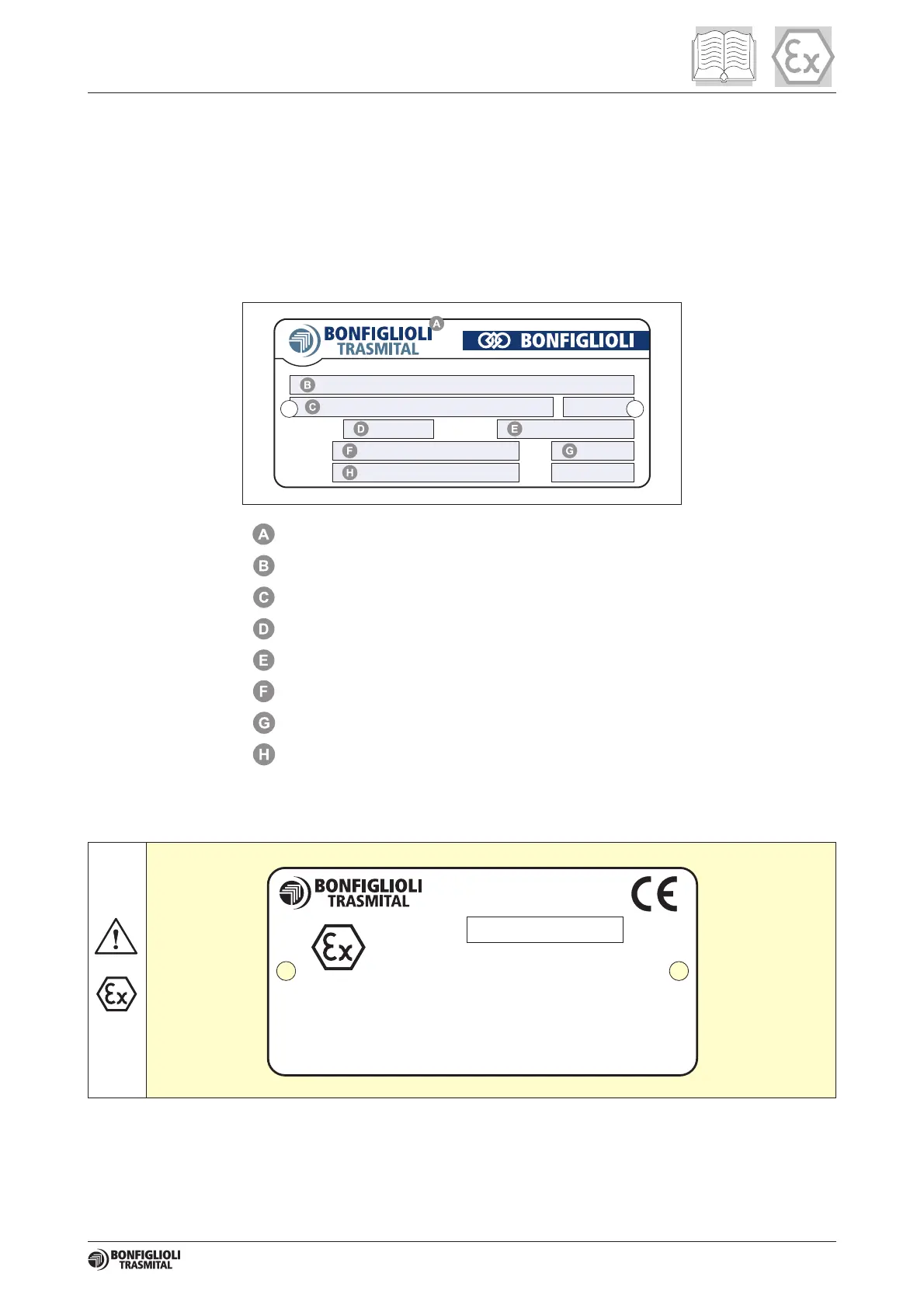

The drawing below illustrates the layout of the data.
The gear unit’s identifying code is explained in the Sales Catalogue. If the gear unit is supplied fitted with an
electric motor (gearmotor), all information regarding the motor is supplied in the motor manual.
