5.1.2 Turns per meter
The number of mechanical turns of the motor per meter of lifting (Δh) must be input
in lifting applications via the parameter
Turns/m 812.

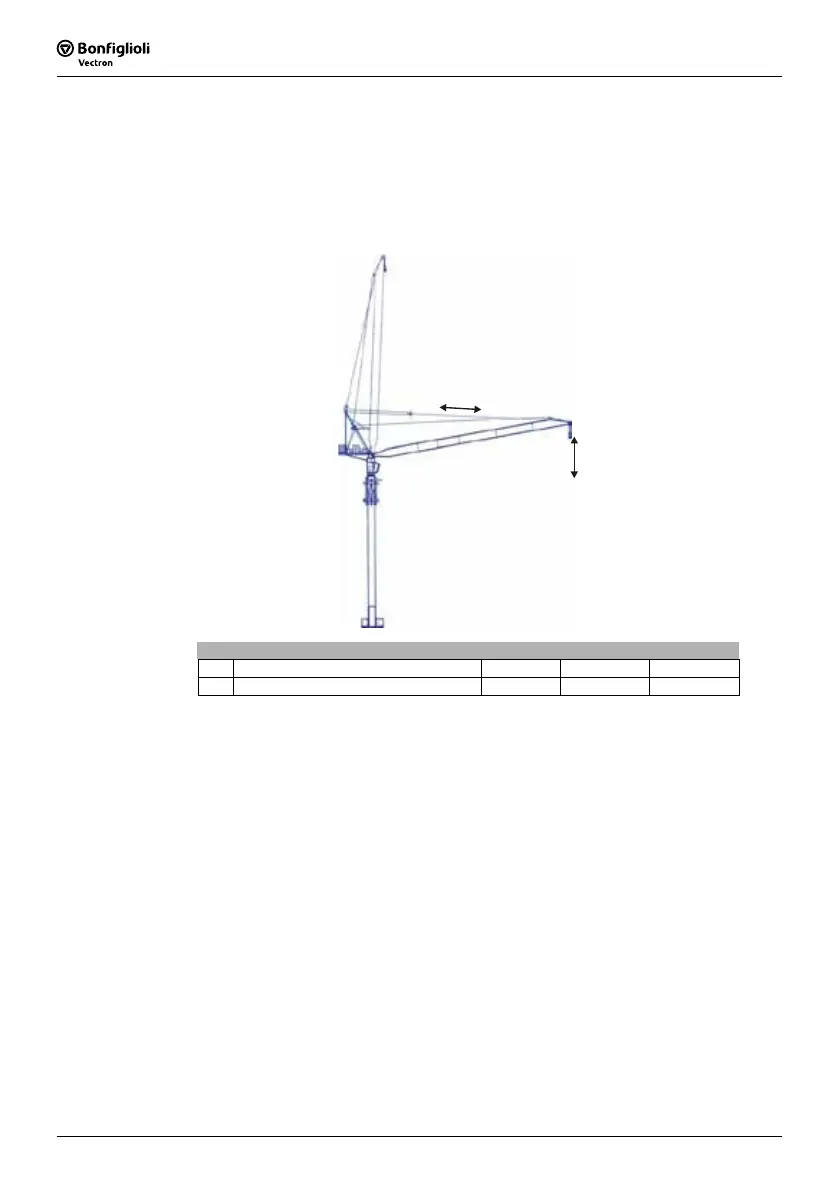

For load estimation in a luffing jib crane, the number of mechanical turns of the moto
r
for the alteration of length (Δl) of one meter of rope for the luffing jib must be input.
In this, the step-down of the pulley must also be taken into account.
Δ l
Δ h
Parameter Setting
No. Description Min. Max. Fact. sett.
812 Turns/m 0.01 U/m 650.00 U/m 20.00 U/m
