EN
19
Installation
www.bora.com
4.4 Assembly instructions
4.4.1 Safety clearances
Maintain the following safety clearances:
1
3
2

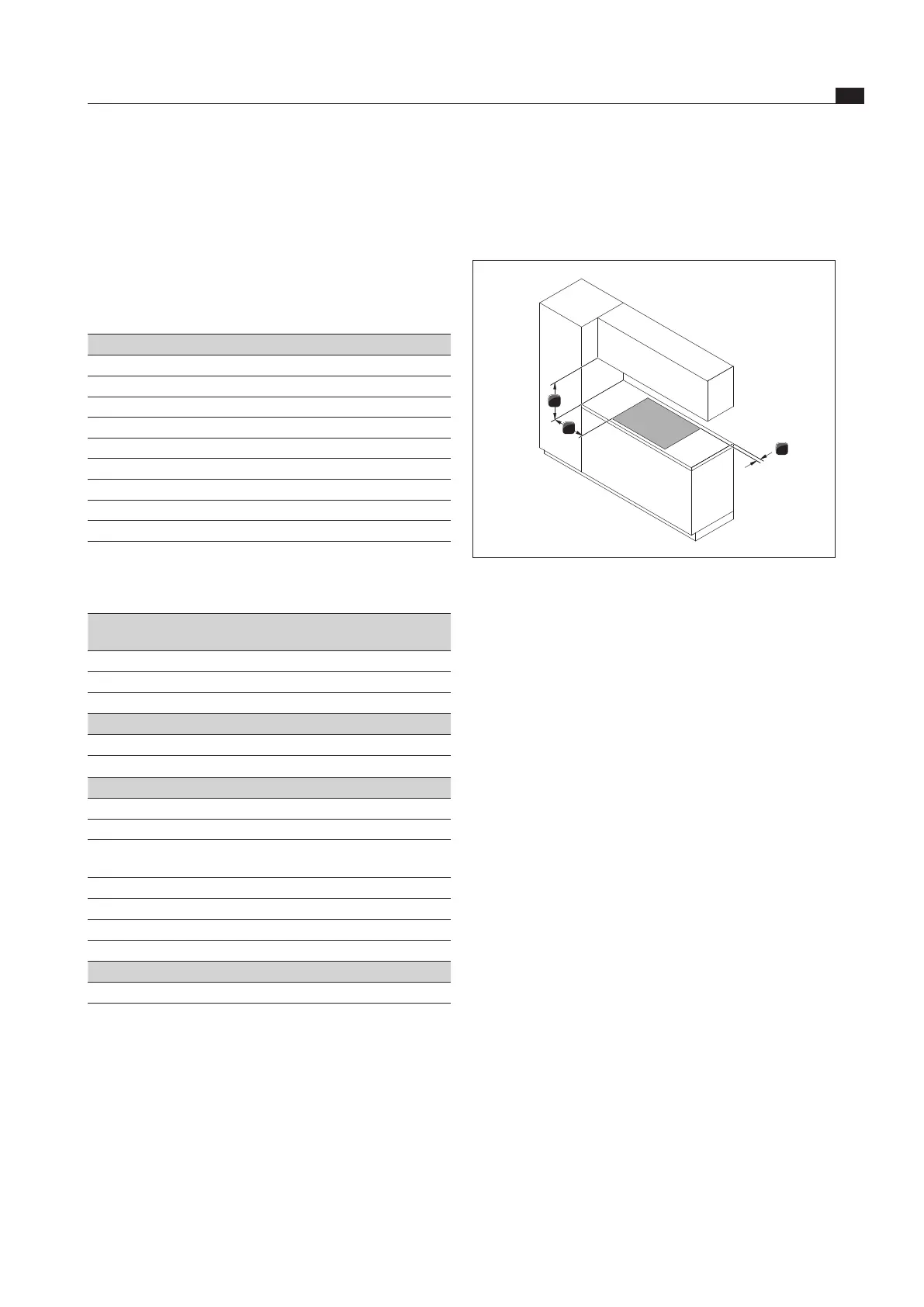

Fig. 4.3 Minimum distance
[1] Minimum clearance of 50 mm at the front and back from
the worktop cut-out to the edge of the worktop.
[2] Minimum clearance of 300 mm from the left and right of the
worktop cut-out to the adjacent cabinet or wall.
[3] Minimum clearance of 600 mm between the worktop and
cabinet above (650 mm in the case of gas devices).
4.4.2 Worktop and kitchen units
Create the worktop cut-out taking into account the
specified cut-out dimensions.
Make sure that the cut surfaces of the worktops are
properly sealed.
Comply with the instructions of the worktop
manufacturer.
Cross bars on the kitchen unit in the area of the
worktop cut-out may need to be removed.
No false floor is necessary below the cooktop. If cable
protection (false floor) is planned, the following must
be taken into account:
It must be fitted in such a way that it can be
removed for maintenance work.
To ensure sufficient cooktop ventilation, a minimum
distance of 15 mm to the bottom edge of the
cooktop extractor is to be observed.
The drawers and/or shelves in the floor unit must be
removable.
For correct installation, the slide-in units of the
base cabinet must be shortened depending on the
installation situation.
Do not under any circumstances install parts which are
damaged.
Dispose of transport packaging in the proper manner
(see the Decommissioning, disassembly and disposal
chapter).
4.2.1 Scope of delivery of the cooktop
extractor
Scope of delivery CKA2 Quantity
Installation instructions 1
Operating instructions 1
Extractor base module (CKA2GM) 1
Air inlet nozzle (CKA2ED) 1
Grease filter unit (CKA2FFE) 1
Control unit (CKA2SB) 1
Power supply cable (country-specific) 1
Flexible module (CKA2MF) 1
Ferrite sleeve (UFK) 1
Tab. 4.1 Scope of delivery of the cooktop extractor
4.2.2 Scope of delivery of the cooktops
Scope of delivery CKFI, CKI, CKIW, CKCH, CKCB, CKG,
CKT
Quantity
Cooktop 1
Mounting brackets 4
Height adjustment plate set 1
Additional scope of delivery CKFI, CKI, CKIW, CKCH, CKCB
Glass ceramic cleaning instructions 1
Glass ceramic scraper 1
Additional scope of delivery CKG
Cast-iron grate 2
Nozzle set G20/20 mbar natural gas PKGDS2020 1
Flexible gas connection hose, length 500 mm, 1/2”
external thread(EN14800)
1
Cylindrical/conical transition piece 1
Seal 1
Glass ceramic cleaning instructions 1
Glass ceramic scraper 1
Additional scope of delivery CKT
Tepan spatula 1
Tab. 4.2 Scopes of delivery of the cooktops
4.3 Tools and aids
The following special tools are required to correctly install
the system:
Screwdriver/Torx screwdriver 20
Black, heat-resistant silicone sealant
Fine saw
