bora Classic Series - Securing the Cooktop Extractor

EN
29
Installation
www.bora.com
Adjusting the installation height (only in the
case of flush installation)
1
2

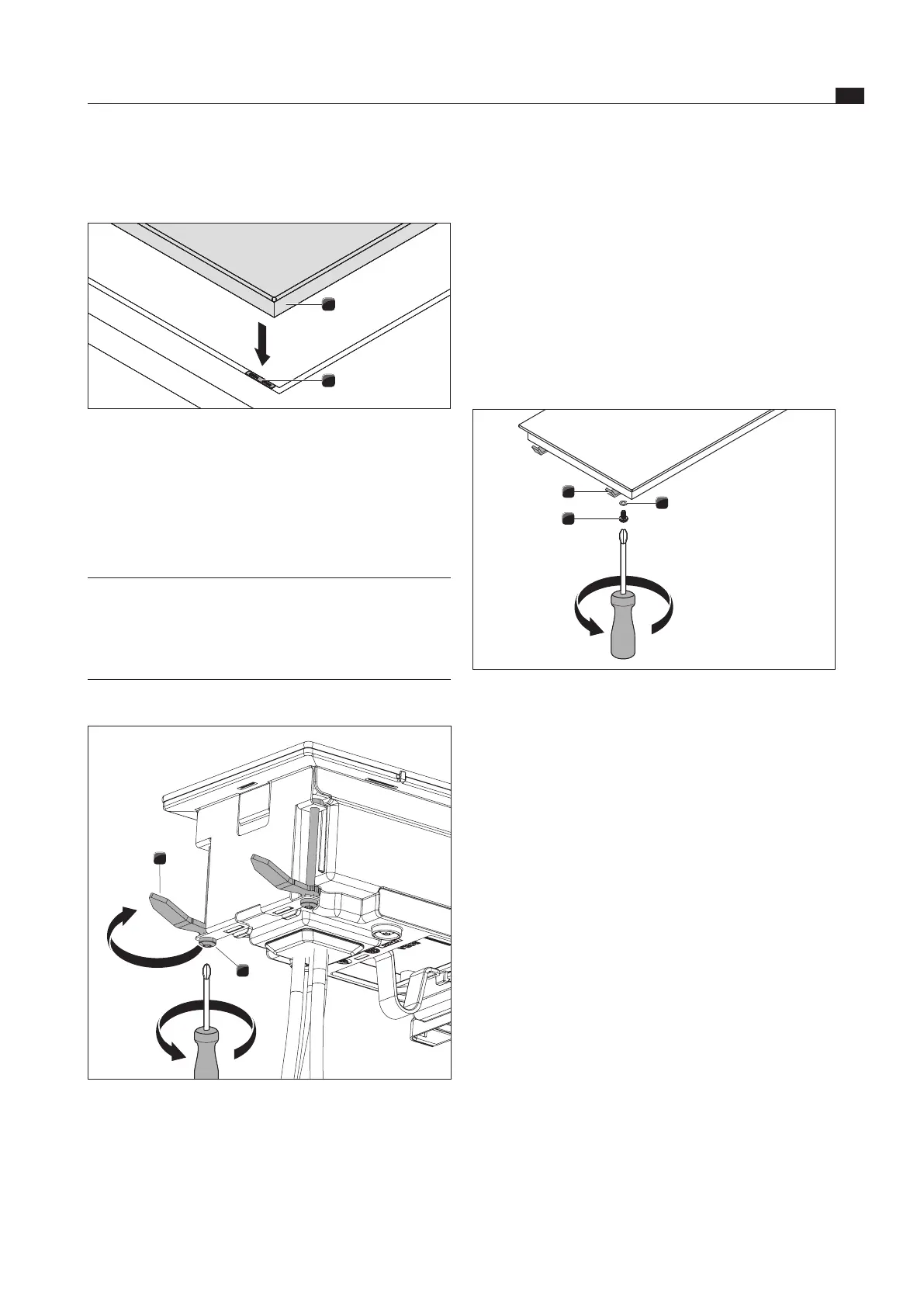

Fig. 4.30 Cooktop and height adjustment plates
[1] Cooktop
[2] Height adjustment plates
 Adapt the cooktop [1] installation height to the level
of the cooktop extractor using the height adjustment
plates [2].
INFO When installing the cooktops it must be taken into
account that the appliances only have 4 support
points and the height adjustment plates must be
positioned accordingly. This particularly applies to
the Tepan stainless steel grill CKT.
4.11.2 Securing the cooktop extractor
1
2
Fig. 4.31 Securing the cooktop extractor
[1] Tensioning screw
[2] Fixing bracket
 Turn the four fixing brackets [2] under the worktop.

The fixing brackets are secured against slipping by a
ratchet mechanism.
 Tighten the tensioning screws [1] with max. 2 Nm.
 Do not use a cordless screwdriver or similar electrical
device to secure the cooktop extractor.
 Check that the cooktop extractor is positioned
correctly.
4.11.3 Securing the cooktops
Cooktops CKFI, CKI, CKIW, CKCH, CKCB, CKG
1
3
2
Fig. 4.32 Securing the cooktops
[1] Mounting bracket
[2] Washer
[3] Screw
 Secure the cooktop using the four mounting brackets
[1].
 To do this, tighten the mounting brackets with a screw
[3] using the washers [2] with max. 2 Nm.
 Do not use a cordless screwdriver or similar electrical
device to secure the cooktops.
 Check that the alignment and installation height are
correct.
