EN
33
Installation
www.bora.com
1
2

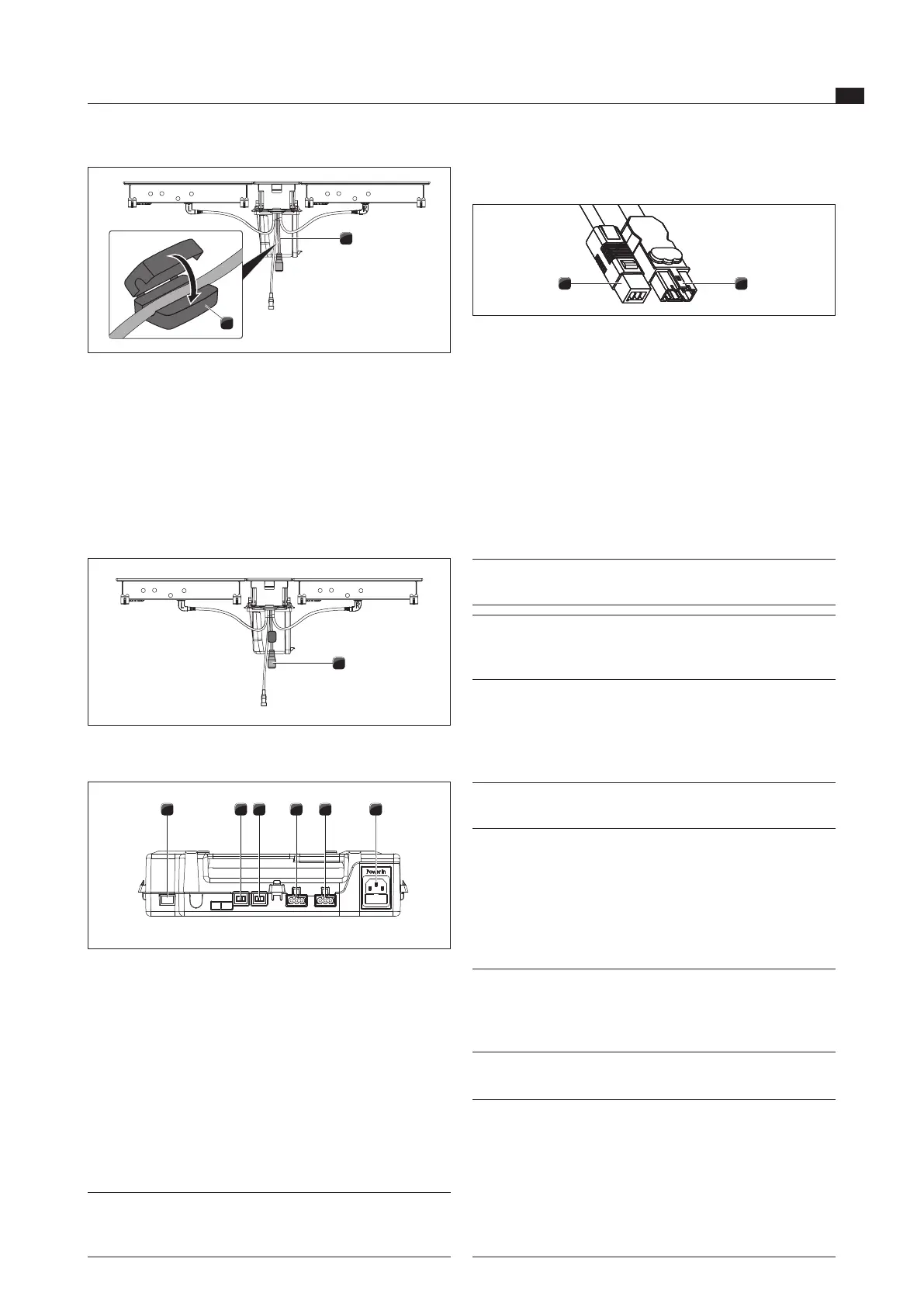

Fig. 4.40 Fitting split ferrite sleeves
[1] Connection cable
[2] Split ferrite sleeve
Fit the split ferrite sleeve [2] provided in the scope of
delivery to the connection cable [1].
4.13.3 Establishing contact between the
operating unit and control unit
1
Fig. 4.41 Socket for the CAT 5e communication cable on the
operat
ing unit
1 2 3 4 5 6
Fig. 4.42 Control unit connections
[1] CAT 5e communication cable socket
[2] Control unit socket for fan 2
[3] Control unit socket for fan 1
[4] Mains cable socket for fan 2
[5] Mains cable socket for fan 1
[6] Mains cable socket with micro fuse
Using the CAT 5e communication cable (included in
the scope of delivery) link the connections [1] on the
operating unit to the control unit.
INFO The operating unit is controlled by and receives
its power supply via the CAT 5e communication
cable.
4.13.4 Connecting fans to the control unit
2
1
Fig. 4.43 Fan connection plug
[1] Fan mains cable connection plug
[2] Fan control cable connection plug
Connect the fan control cable [2] to the control unit.
Connect the fan mains cable [1] to the control unit.
When connecting the fan control cable and mains
cable it does not matter if you use socket 1 or 2 on the
control unit.
4.13.5 Positioning the control unit
INFO The control unit must be placed inside the kitchen
unit.
INFO Position the control unit inside the kitchen unit in
such a way that it cannot be freely accessed by
the user (e.g. behind the plinth panel).
Permitted positions inside the kitchen unit:
loose on a false floor
loose on the shallow duct
mounted on the kitchen unit
INFO When positioning the control unit please observe
the length of the mains cable (1 m).
4.13.6 Connecting to the mains
Observe all safety and warning information (see the
Safety chapter).
Observe all national and regional laws and regulations
as well as the supplementary regulations of the local
utility companies.
INFO The power connection may only be established by
certified specialists. The specialist also assumes
responsibility for the proper installation and
commissioning.
Special information for CKT:
INFO The Classic Tepan stainless steel grill CKT is
intended to be operated on a supply network with
an impedance Zmax at the transfer point (mains
connection) of 0.1247 ohms maximum. The user
is to ensure that the appliance is only operated
on a mains supply network which meets this
requirement. If necessary, ask the local energy
supply company about the system impedance.
