Note: The relay output contact must not be connected to any utility
connected circuits. Reinforced insulation to the utility is required. The
relay output contact has a maximum rating of 30Vac/1A and 60Vdc/2A
normal values.

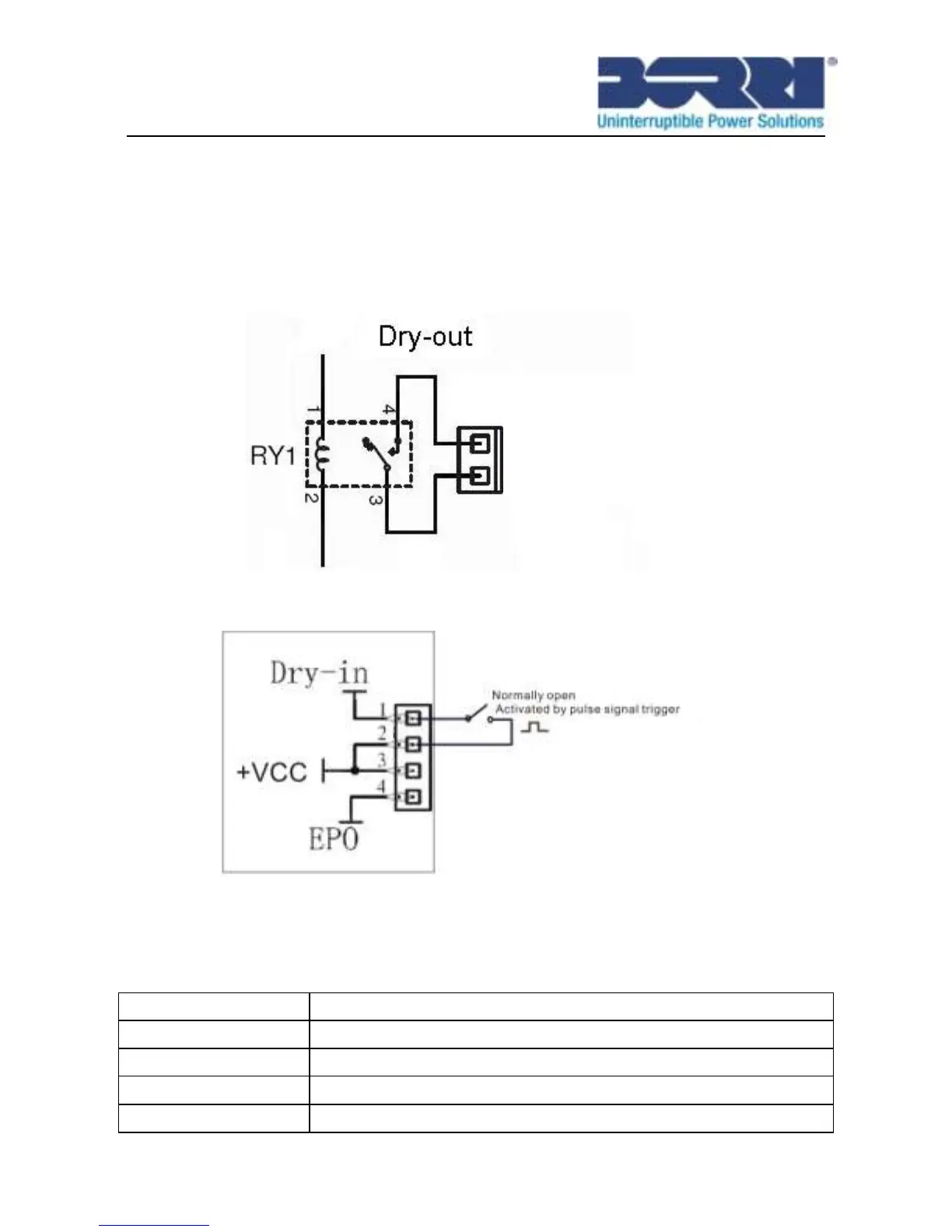

The following figures show schematic of the dry out/in contacts.
Dry out contact schematic
Dry in contact schematic
The following table shows the options for the dry out/in contacts
Dry out signal
Description
Summary Alarm
Activated when any warning happens
On Battery
Activated when the UPS operates on battery
Battery Low
Activated with the battery low alarm
UPS ok
Activated when the UPS has no alarms and no fault.
Normally open
Activated closed
