Bosch 560 DDC - DIP Switch Settings

6 |
8733914716 DDC (2014/02) Subject to change without prior notice Quick Start Guide
Quick Start Guide

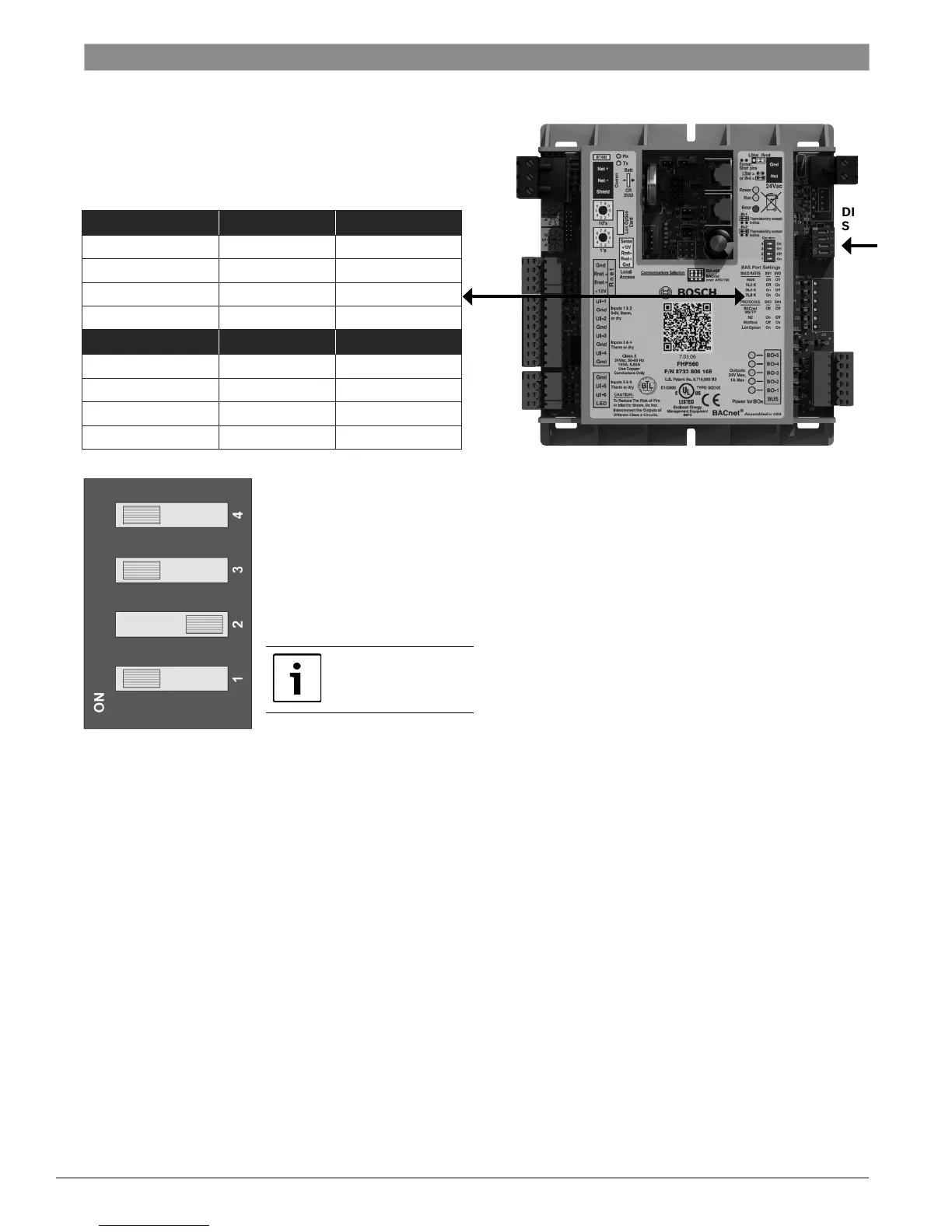

DIP SWITCH SETTINGS
Verify that hardware conguration for DIP switches
match corresponding network application per the
BAS Port Settings.
BAUD RATES SW1 SW2
9600 Off Off
19.2K Off On
38.4K On Off
76.8K On On
PROTOCOLS SW3 SW4
BACnet® MS/TP Off Off
N2 On Off
Modbus Off On
LON Option On On
Sample DIP switch settings for a
LON Talk Application.
Caution
The LonTalk
®
card
must be installed
DIP Switch Settings
DIP
Switch
