Select Vehicle
OBDII
Main Menu
All Apps
System Settings
See What’s New
Web Browser
Saved Diagnostic Data
10:44
Connected
Select Vehicle
Make sure the key is ON and Engine is OFF
Choose vehicle selection method:
SEARCH BY VIN
Cancel
AutoID
Manual Selection
Recent Vehicles
ss03092

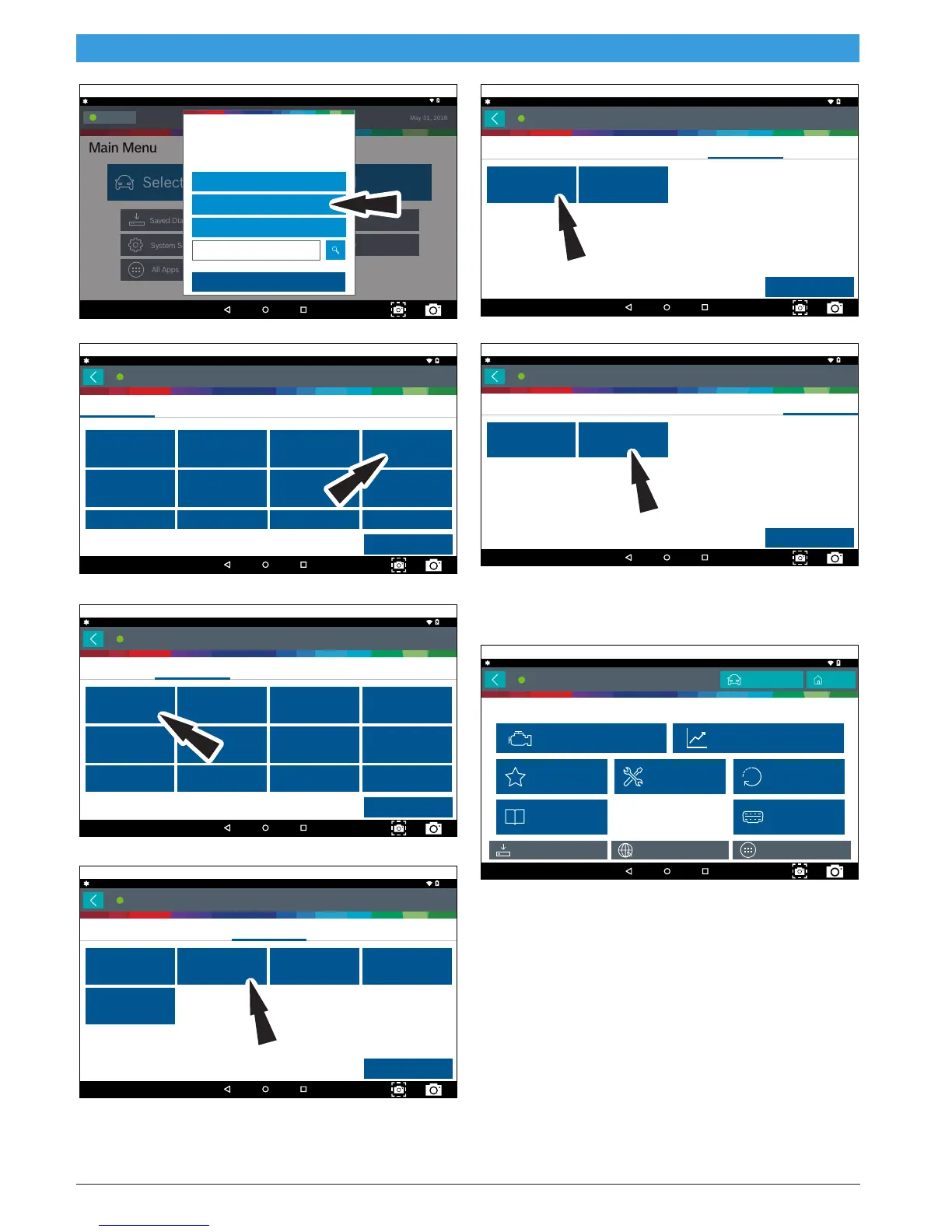

2. Select Manual Selection.
Make
No VIN
Selected
Year
VIN J
‘18
VIN H
‘17
VIN G
‘16
VIN F
‘15
VIN E
‘14
VIN D
‘13
VIN C
‘12
VIN B
‘11
‘07
‘08‘09‘10
Cancel
To confirm via VIN, use the tenth digit
Model Submodel Engine
May 31, 2018
10:44
Connected
ss03093
3. Select the model year of the vehicle.
Make
No VIN 2015
Selected
Year
Cancel
Model Submodel Engine
May 31, 2018
10:45
Connected
Acura
Buick
Dodge
Alfa Romeo
Catillac
Fiat
Audi
Chevrolet
Ford
BMW
Chrysler
GMC
ss03094
4. Select the make of vehicle.
Make
No VIN 2015 Acura
Selected
Year
Cancel
Model Submodel Engine
May 31, 2018
10:45
Connected
ILX
TLX
MDX RDX RLX
ss03095
5. Select the model.
Make
No VIN 2015 Acura MDX
Selected
Year
Cancel
Model Submodel Engine
May 31, 2018
10:45
Connected
Base SH-AWD
ss03096
6. Select the sub-model (trim level).
Make
No VIN 2015 Acura MDX Base
Selected
Year
Cancel
Model Submodel Engine
May 31, 2018
10:45
Connected
3.5 GAS J35Y4
Naturally Aspriated,
SOHC
3.5 GAS J35Y5
Naturally Aspriated,
SOHC
ss03097
7. Select the engine.
Note: Some vehicles may not require this selection.
Connected to 2015 Acura MDX Base 3.5L
Web Browser
Saved Diagnostic Data
Enhanced OBDII
Vehicle Diagnostics
10:47
Change Vehicle
All Apps
Home
Data Stream
Read DTCs
Maintenance
Tests
Special Tests
Diagnostic
Information
Automated
System Test
ss03098
8. At this point vehicle entry will disappear and the user
will be able to begin using diagnostic functions on
the vehicle.
