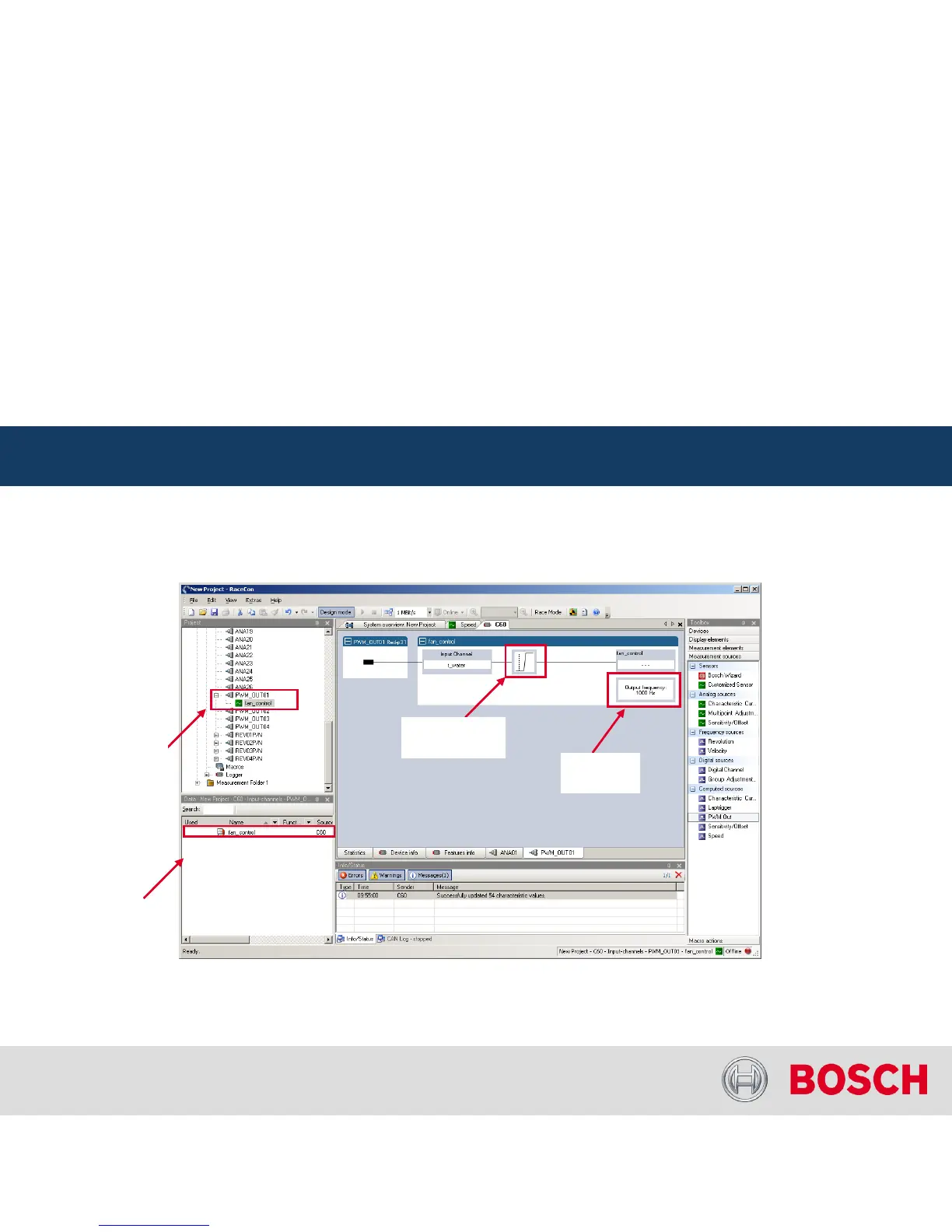

 The channel is inserted into the C 60 project tree
C 60 Analog and Frequency Inputs
Internal | BEG/EMS1 CsM | 6/4/2010 | © Bosch Engineering GmbH 2009. All rights reserved, also regarding any disposal, exploitation,
reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Motorsport
Configuring PWM Outputs
Measurements
channel
Channel is
linked to
PWM_OUT01
Characteristic
curve
Output
frequency
Diagnostic channels:
pwm_err_ls_out_01_OL PWM output 1 error open load
pwm_err_ls_out_01_OT PWM output 1 error over temperature
pwm_err_ls_out_01_SCB PWM output 1 error short circuit to battery
pwm_err_ls_out_01_SCG PWM output 1 error short circuit to GND
Similar:
PWM output 2..4
diagnosis
