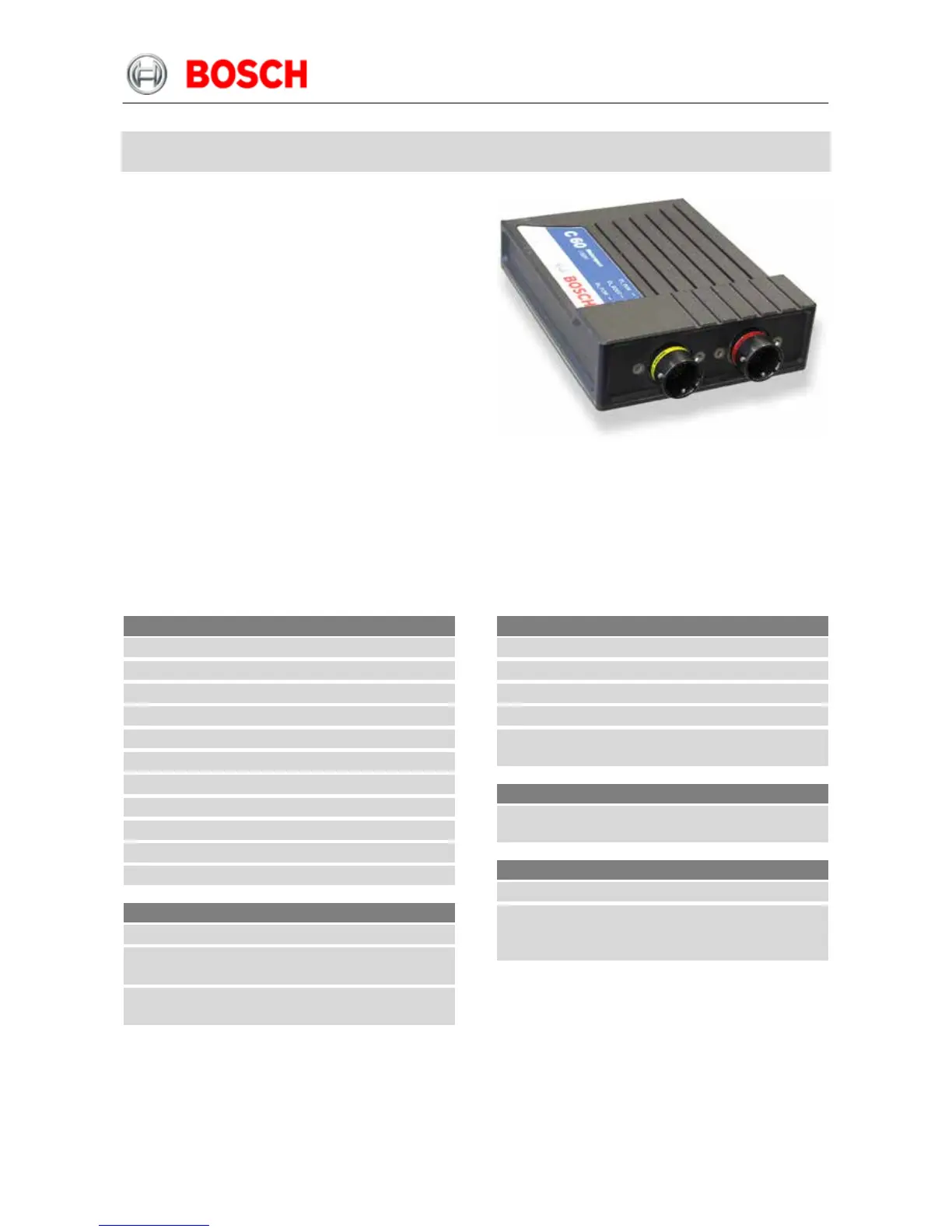

Bosch C 60 - 4 Technical Data

Technical data
4 Technical data
The Data Logger C 60 is a compact and light
weight data logging system for motorsport
applications. This allows for synchronized
acquisition of engine data from the ECU, and
chassis data from up to 26 analog and 4 digital
input channels. Additional input devices can
be connected via Ethernet and CAN buses.
Recorded data from the internal 2 GB flash
memory can be downloaded via high speed
Ethernet or via wireless connection with the
BT 60 burst telemetry system.
As a base system the C 60 is sold as data
logger only. A software upgrade for the C 60
(field upgradable by entering a key) activates
additional input channels.
Application
8 kHz AD converters with digital low pass filter
Configurable math channels
User configurable CAN in/out messages
Up to 1,000 Hz acquisition rate for all ch
annels
2 GB storage capacity
Online data compression
Up to 200 KB/s data acquisition rate
Up to 720 recording channels
1,000 KB/s upload rate
3
-port network switch
BT 60 WLAN burst telemetry support
Connectors
Autosport connectors double density
2 x 41 pin
Mating connector I
AS DD 6
-12-41SN F 02U 002 216-01
Mating connector II
AS DD 6-12-41SA F 02U 004 180-01
Mechanical Data
Size
105 x 34.5 x 137.5 (149) mm
Weight
465 g
Dust and splashwater proof aluminium housing
Operating temperature (internal)
-20 … +6
5 °C
Max. vibration
Vibration profile 1
(see Appendix or www.bosch-motorsport.com)
Software
Configuration via RaceCon over Ethernet
or MSA
-Box II
Part Number
Data Logger C 60
[1] F 02U V00 553-01
Software Upgrade 1
[2] F 02U V00 703-01
additional anal
og channels and second connector
unlocked
5
