Lap
Trigger System
Internal | BEG/EMS1 CsM
| 6/4/2010 | ©
Bosch Engineering GmbH 2009. All rights reserved, also regarding any disposal, exploitation,
reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Motorsport

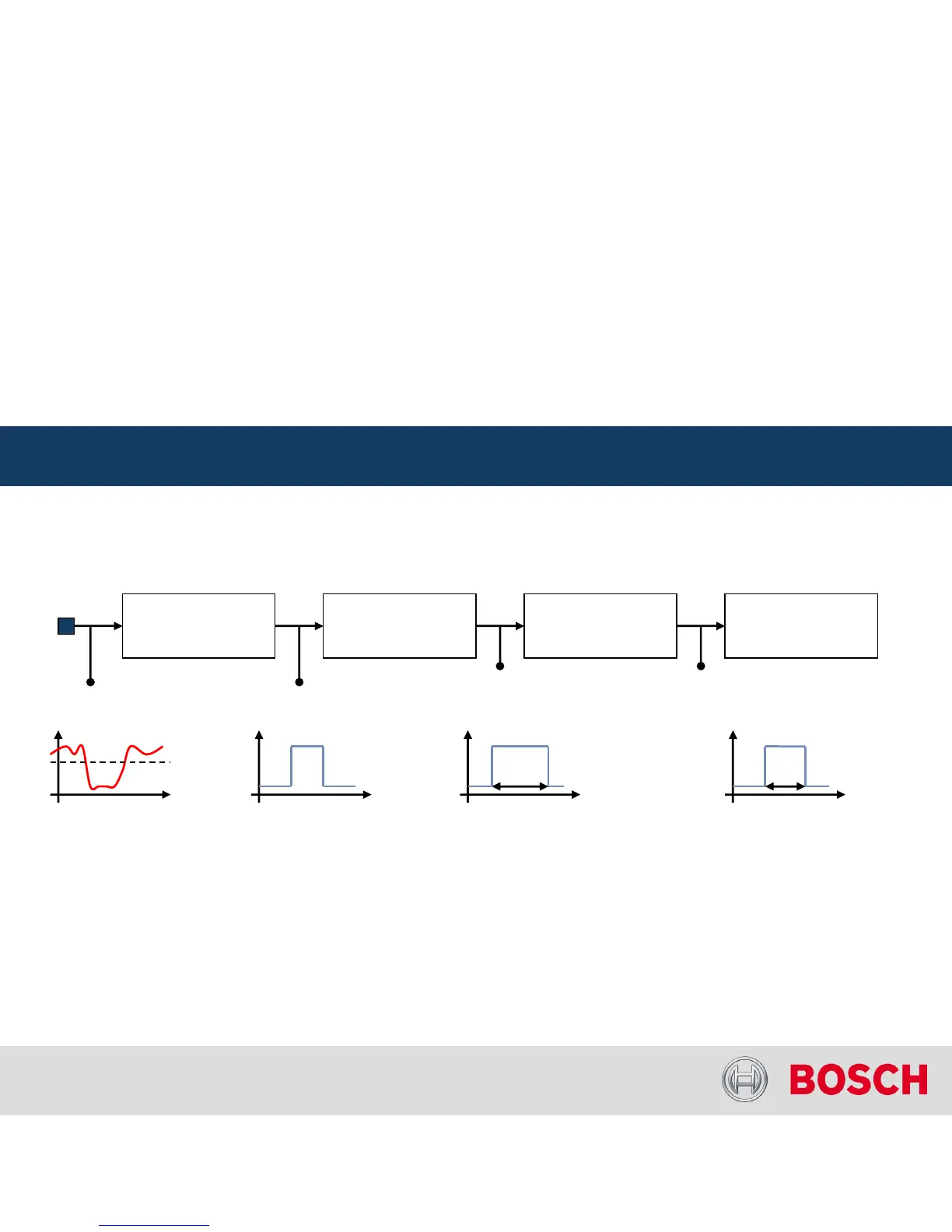

Lap Trigger Diagnosis
Threshold Evaluation
Logic Conversion
Signal
Characterization
Retrigger
Protection
Input
channel
Laptrigger_signal_dls
Analog signal Digital realtime
representation
of input channel
with positive logic
Laptrigger_mainsig_dls
Laptrigger_imtrigsig_dls
Laptrigger_maintrig_dls
Laptrigger_imtrig_dls
1s
A 1s pulse is generated,
if a valid lap trigger pulse
has been detected
0.4s
A 0.4s pulse is generated,
if a valid lap trigger has passed
retrigger protection
Lap Counter
Recording
Time Time Time Time
Please note: Laptrigger_xxx
channels can be displayed with RaceCon
and also recorded
