C 60 Start-Up
Internal | BEG/EMS1 CsM | 6/4/2010 | © Bosch Engineering GmbH 2009. All rights reserved, also regarding any disposal, exploitation,
reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Motorsport

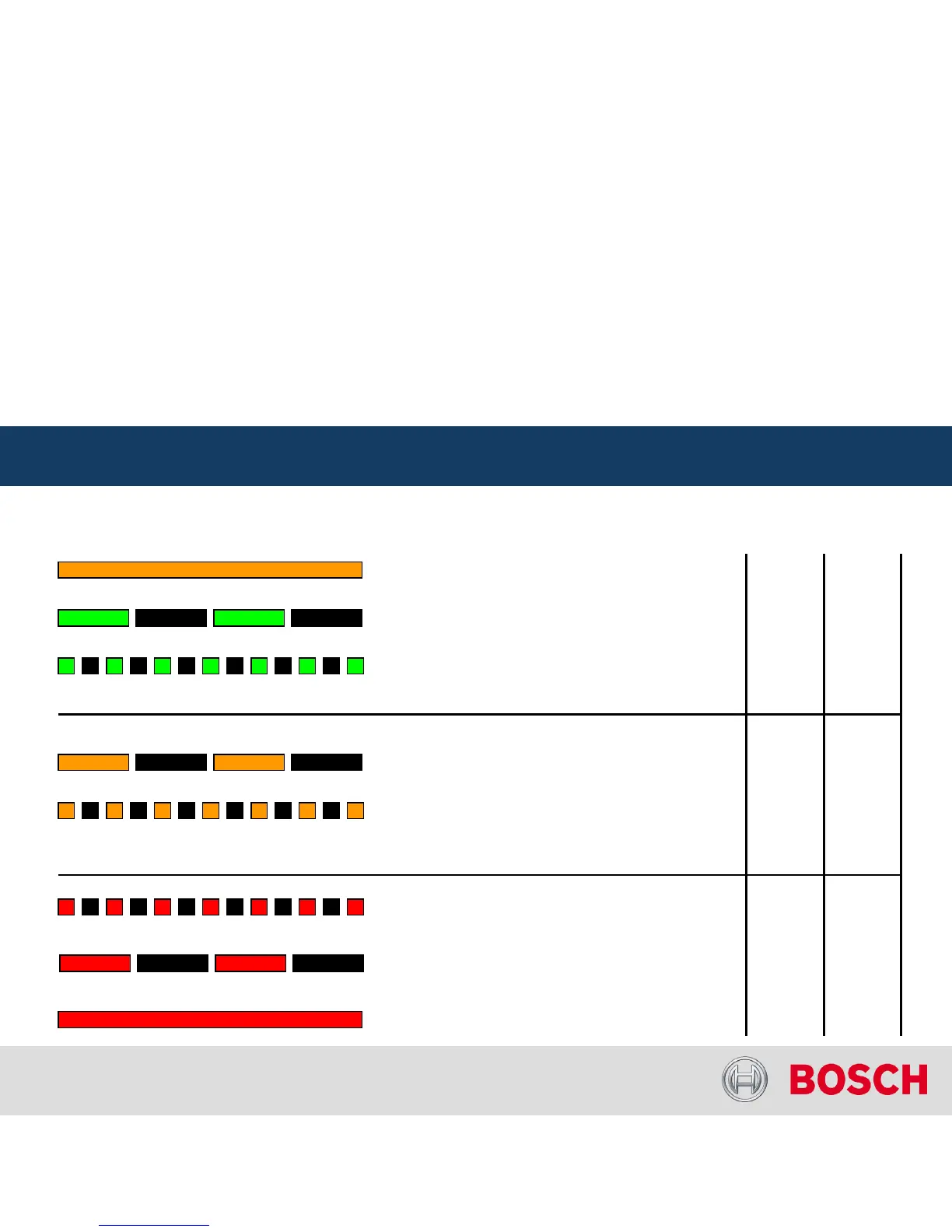

C 60 Recording Status LED
Amber constant
• No measurement configuration on C 60
Blinking green slow
• Measurement configuration loaded
• Start condition(s) not fulfilled
Blinking green fast
• Measurement configuration loaded
• Start conditions fulfilled
• C 60 is recording data
Blinking amber slow
• Measurement configuration loaded
• Measurement setup error (external device missing)
• Start condition(s) not fulfilled
Blinking amber fast
• Measurement configuration loaded
• Measurement setup error (external device missing)
• Start conditions fulfilled, C 60 is recording data
Red constant
• Error during firmware update
Blinking red slow
• Firmware update has finished
Blinking red fast
• Firmware update in progress
• Do not power off C 60
Yes
No
Yes
(but some
missing)
No
No
No
No
No
Yes
Yes
No
Yes
(but some
missing)
No
No
No
Yes
(but some
missing)
Recorded
Data
Telemetry
