 Configuring a generic linear sensor
 Example: Acceleration sensor 5g

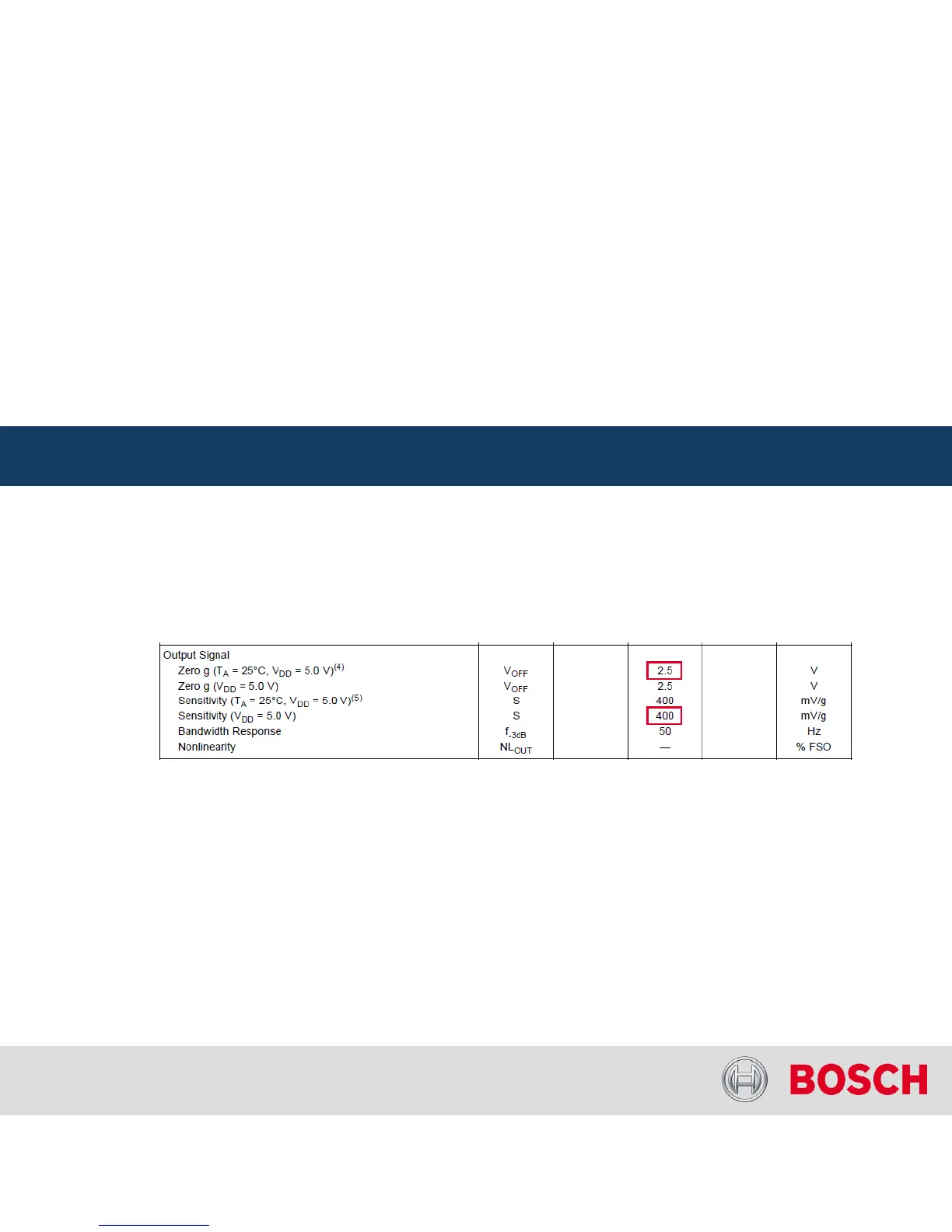

 From sensor data sheet – operating characteristics
 Sensitivity 400mV/g Offset 2500mV
 The sensor has a linear output signal with sensitivity and offset
 Drag the ‘Sensitivity/Offset’ analog signal source from the Toolbox and drop it on the
desired analog input channel in the C 60 project tree
 A ‘Sensitivity/Offset Wizard’ opens
C 60 Analog and Frequency Inputs
