 For each analog channel, several ‘subchannels’ are available

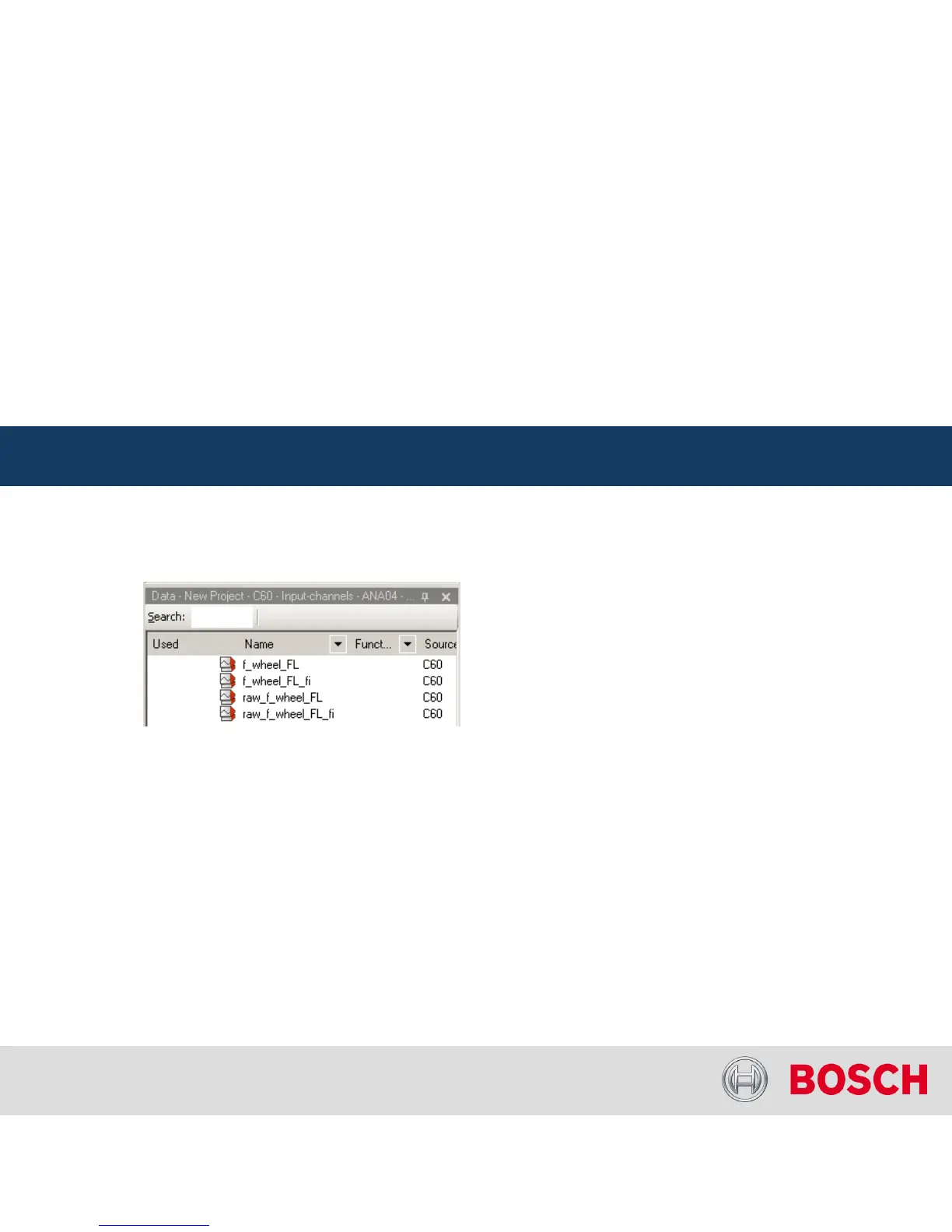

 raw_name mV value of sensor
 raw_name_fi filtered mV value of sensor
 name physical value of sensor
 name_fi filtered physical valuexxx
 Filtered channels are routed through digital low pass filters
 C 60 uses A/D converter oversampling and digital filtering to recording rate
 Digital filters eliminate ‘out-of-band’ noise
 Cut-off frequency automatically adjusted to recording rate
 Linear phase – no signal distortion
 Latency compensation – no filter delay in recorded data
C 60 Analog and Frequency Inputs
