 A ‘Velocity Wizard’ opens
 Click ‘Finish’ when done
 Enter channel name and description
 Click ‘OK’ when done
C 60 Analog and Frequency Inputs
Internal | BEG/EMS1 CsM | 6/4/2010 | © Bosch Engineering GmbH 2009. All rights reserved, also regarding any disposal, exploitation,
reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
Motorsport
Configuring Inputs – Frequency Inputs

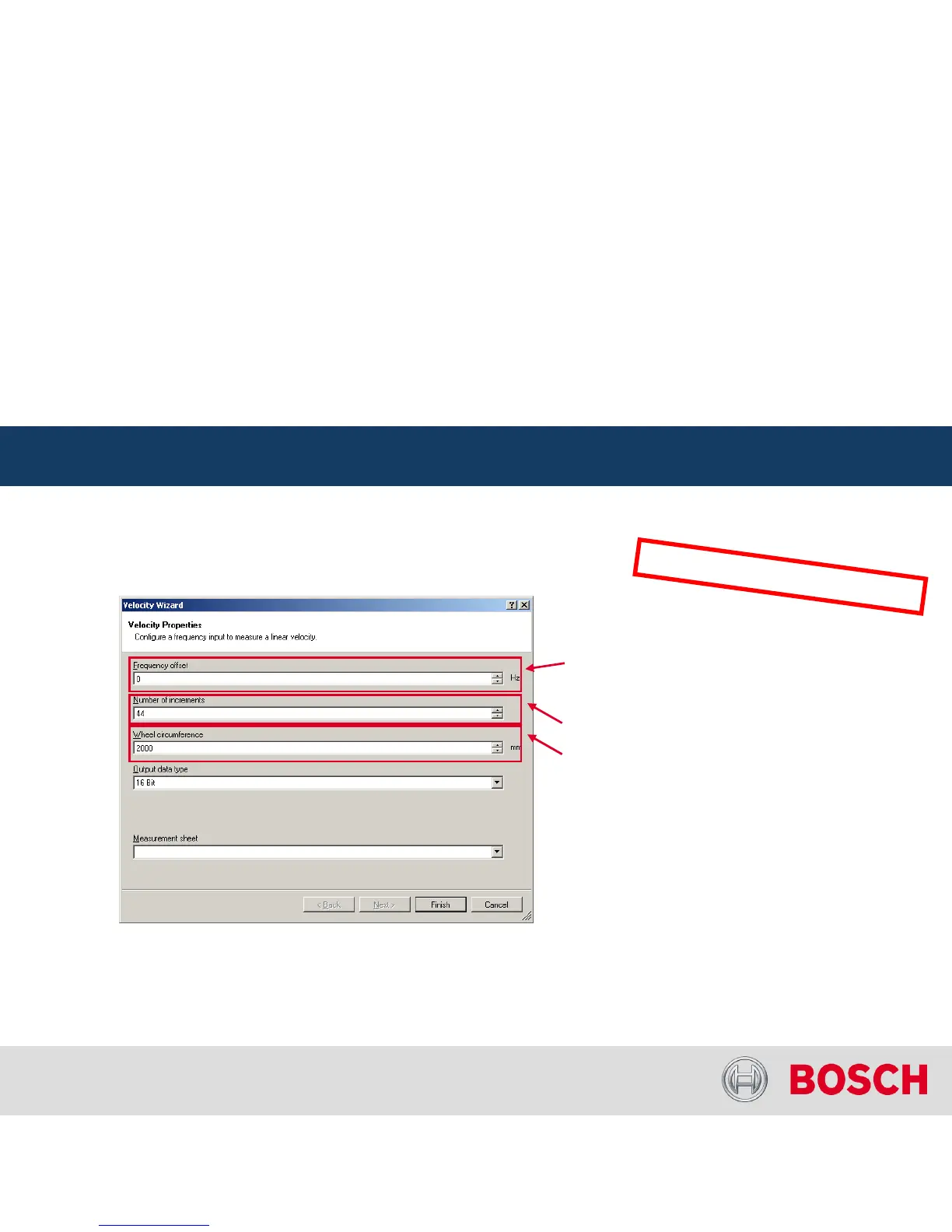

Special functionality for sensors with frequency
offset (e.g. Correvit) Set to ‘0’ for wheelspeed
measurement
Number of teeth on the pulse wheel
Circumference of wheel for speed calculation
