Functional Description and Specifications
FOOT
LOWER
GUARD
LIFT LEVER
(RETRACTING
HANDLE)
AUXILIARY
HANDLE
BEVEL
ADJUSTMENT
KNOB
CALIBRATED BEVEL
QUADRANT
Disconnect battery pack from tool before making any assembly, adjustments or
changing accessories. Such preventive safety measures reduce the risk of starting the tool
accidentally.
Cordless Circular Saw CCS180
UPPER GUARD
LOWER GUARD
LOCK
BUTTON
BATTERY
PACK
SAFETY SWITCH
RELEASE BUTTON
TRIGGER SWITCH
BLADE WRENCH &
STORAGE AREA
VENTILATION
OPENINGS
Model No. ................CCS180
Voltage rating .............18 V
A
0
No load speed .............n
0
3,900/min
Allowed ambient temperature
– during charging ..........32...113 °F (0...+45 °C)
– during operation/
storage ................–4...122 °F (–20...+50 °C)
Maximum Capacities
Blade .........................6-1/2"
Depth of cut at 0° ...............2"
Depth of cut at 45° ..............1-9/16"
Depth of cut at 50° ..............1-3/8"
ATTENTION: Use only thin kerf blades designed
for Cordless Circular Saws.
RUBBERIZED
GRIP
DEPTH ADJUSTMENT
LEVER
ALIGNMENT
SCREW
BATTERY PACK
RELEASE BUTTON
Battery Packs/Chargers
Please refer to the battery/charger list, included with your tool.
For replacement blades we recommend Bosch Cordless Circular saw blades. Their thin kerf and tooth design
deliver the best speed, quality of cut, and reduce battery drain. Use of standard blades will substantially affect the
performance and reduce run-time.

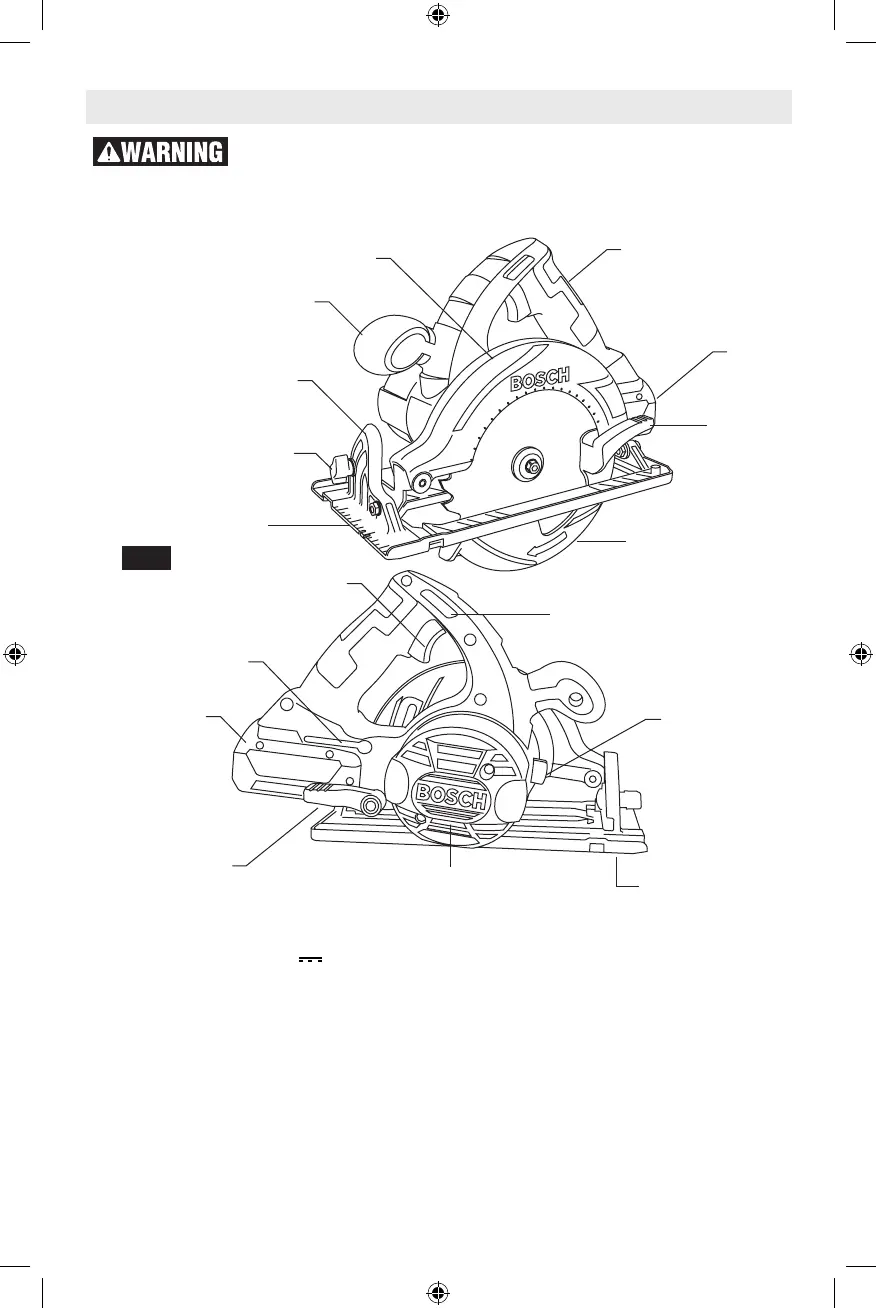

Fig. 1

Bosch CCS180-B15 Specifications

General

Brand	Bosch
Model	CCS180-B15
Category	Saw
Language	English
