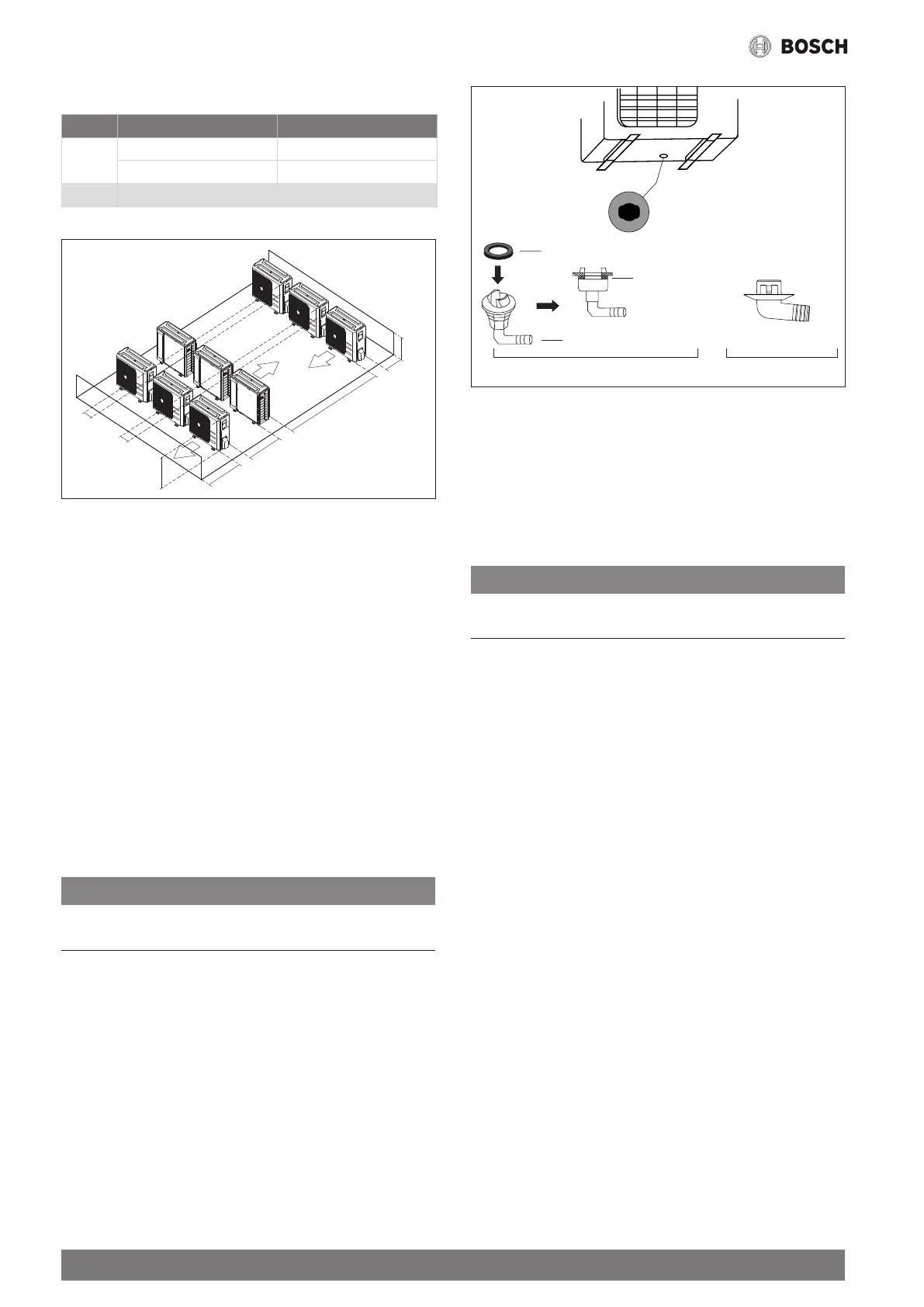

12 Climate 5000 SCI – 6720887405 (2018/04)
Outdoor Unit Installation
Rows of series installation
L A
L ≤ H L ≤ 1/2H 250 mm or more
1/2H < L ≤ H 300 mm or more
L > H Cannot be installed
Table 5. The relations between H, A and L are as follows
L
H
A
250 mm
or more
250 mm
or more
1500 mm
or more
600 mm
or more
3000 mm
or more
Fig. 17.
5.2 Drain Joint Installation
If the drain joint comes with a rubber seal (see Fig. 18 - A ), do the
following:
1. Fit the rubber seal on the end of the drain joint that will connect to
the outdoor unit.
2. Insert the drain joint into the hole in the base pan of the unit.
3. Rotate the drain joint 90° until it clicks in place facing the front of
the unit.
4. Connect a drain hose extension (not included) to the drain joint to
redirect water from the unit during heating mode.
If the drain joint does not come with a rubber seal (see Fig. 18 - B ), do
the following:
1. Insert the drain joint into the hole in the base pan of the unit. The
drain joint will click in place.
2. Connect a drain hose extension (not included) to the drain joint to
redirect water from the unit in heating mode.
NOTE :
Ensure the water drains to a safe location where it will not cause water
damage or a slipping hazard.
(A) (B)
Base pan hole of
outdoor unit
Seal
Seal
Drain joint
Fig. 18.
5.3 Notes On Drilling a Hole in the Wall
You must drill a hole in the wall for the refrigerant piping and the signal
cable that will connect the indoor and outdoor units.
1. Determine the location of the wall hole based on the location of the
outdoor unit.
2. Using a 65 mm core drill, drill a hole in the wall.
NOTE :
When drilling the wall hole, ensure to avoid wires, plumbing, and other
sensitive components.
3. Place the protective wall cuff in the hole. This protects the edges of
the hole and will help seal it when you finish the installation process.
