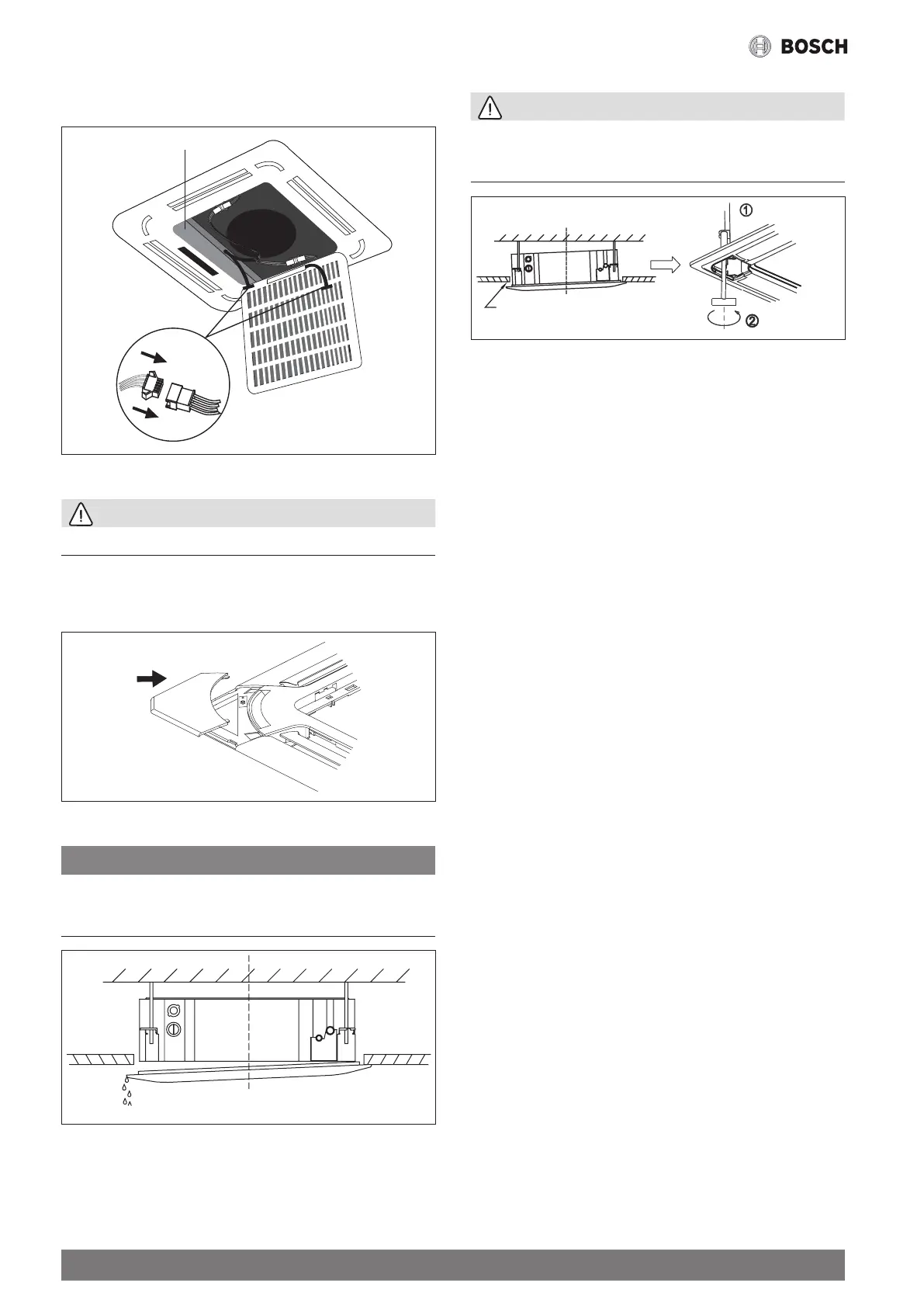

Panel Installation
4. Connect the display panel cable to the corresponding wire on the
main body.
Control box
Fig. 46.
CAUTION
Failure to tighten screws can cause water leakage.
5. Close the front grille.
6. Fasten the installation covers at all four corners by pushing them
inwards. (See Fig. 47)
Fig. 47.
NOTE:
If the height of the indoor unit needs to be adjusted, you can do so
through the openings at the panel’s four corners. Ensure that the internal
wiring and drainpipe are not affected by this adjustment.
Water condensation
Fig. 48.
CAUTION
If the unit is not hung correctly and a gap exists, the unit’s height must be
adjusted to ensure proper function. The unit’s height can be adjusted by
loosening the upper nut and adjusting the lower nut.
Loosen upper nut
Adjust lower nut
Gap not allowed
Fig. 49.
