The air shutter for the oven burner may need adjustment, especially if the unit has
been converted for use with LP/Propane gas. The approximate flame length of
the oven burner is 1 inch (distinct inner, blue flame) (ee ig 22).
To access the air shuttermove the storage drawer or warmer drawer
Remove the oven bottom by removing the screws at rear of oven bottom.
Lift up he rear of oven bottom and slide toward back of range to disengage
from front of oven front frame.
Remove burner baffle by removing nut located on top of baffle and two screws from
front edge of oven front frame. Lift baffle straight up and out of the oven.
Set the oven to bake at 350°F and observe the flame. If the flame is yellow in color,
increase air shutter opening size. If the flame is a distinct blue color, but lifting away
from the burner reduce the air shutter opening size.
Turn off oven and allow to cool before adjusting air shutter. To adjust, loosen lock-
screw (3), reposition air shutter (2), and tighten lock-screw (3) ( 23). Retest
the burner by repeating step “” above. When the burner flame is a distinct blue
color burning steady, the air shutter is adjusted correctly.
. Replace burner baffle and oven bottom.

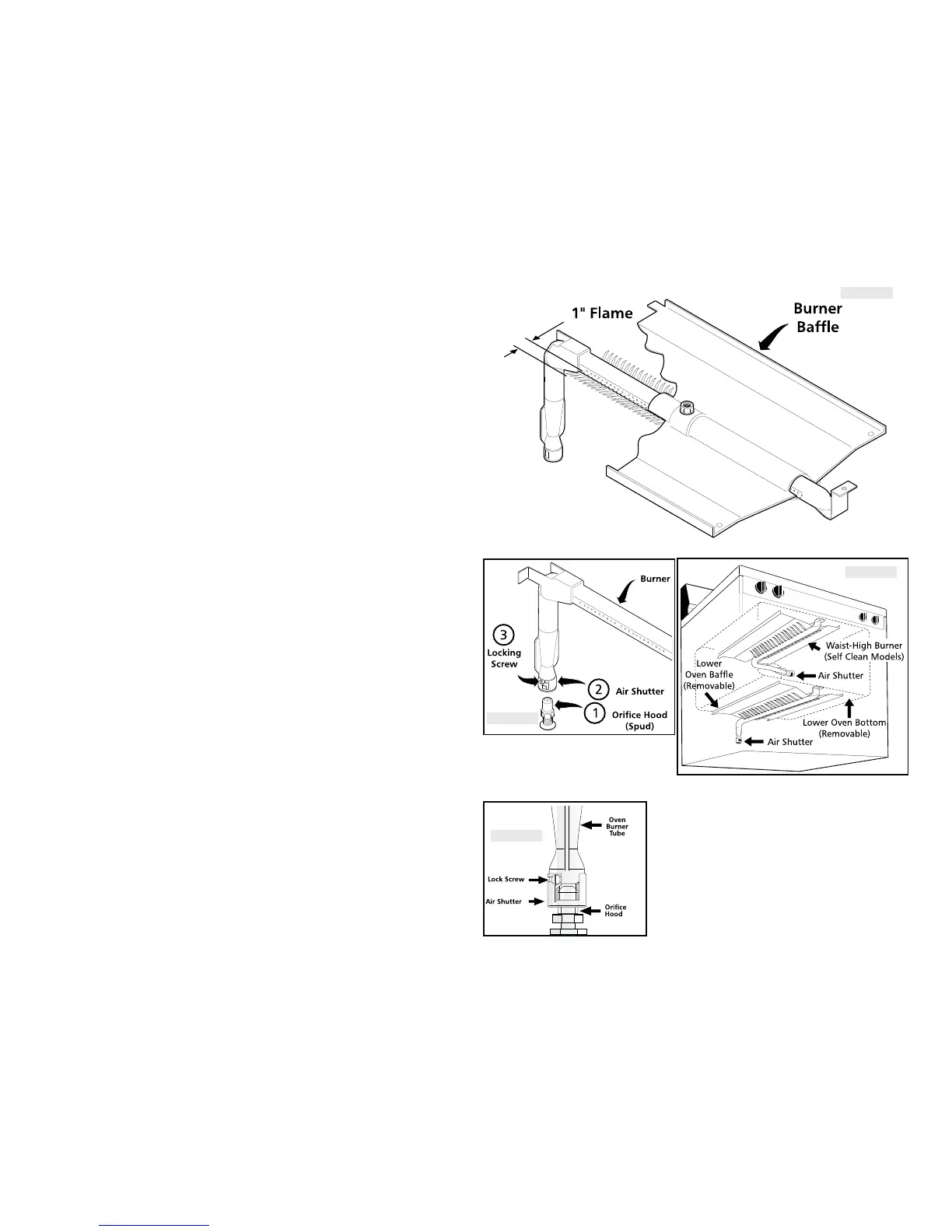

FigXUH 22
8. A'-867,1*7+(%52,/%851(5$,56+877(5
Observe the flame to determine if the broiler burner flame is properly adjusted.
It should be steady with approximately 1" blue cones and no yellow or orange
flame tips ( 22).
If adjustment to the air shutter is necessary, locate the broiler burner air shutter
( 24), loosen shutter lock screw, and adjust to obtain optimum flame.
This will normally be completely open for LP/Propane gas. If the flame is yellow
in color, increase the air shutter opening size. If the flame is a distinct blue,
but lifting away from the burner, reduce the air shutter opening size. Tighten
the shutter set screw.
FigXUH 23
F
igXUH 24
FigXUH 25
/$%(/,1*7+(5$1*($)7(5&219(56,215(48,5('
After
completing the conversion steps for the regulator, surface and oven
burners, refer to the LP kit instructions for labeling requirements and
instructions.
