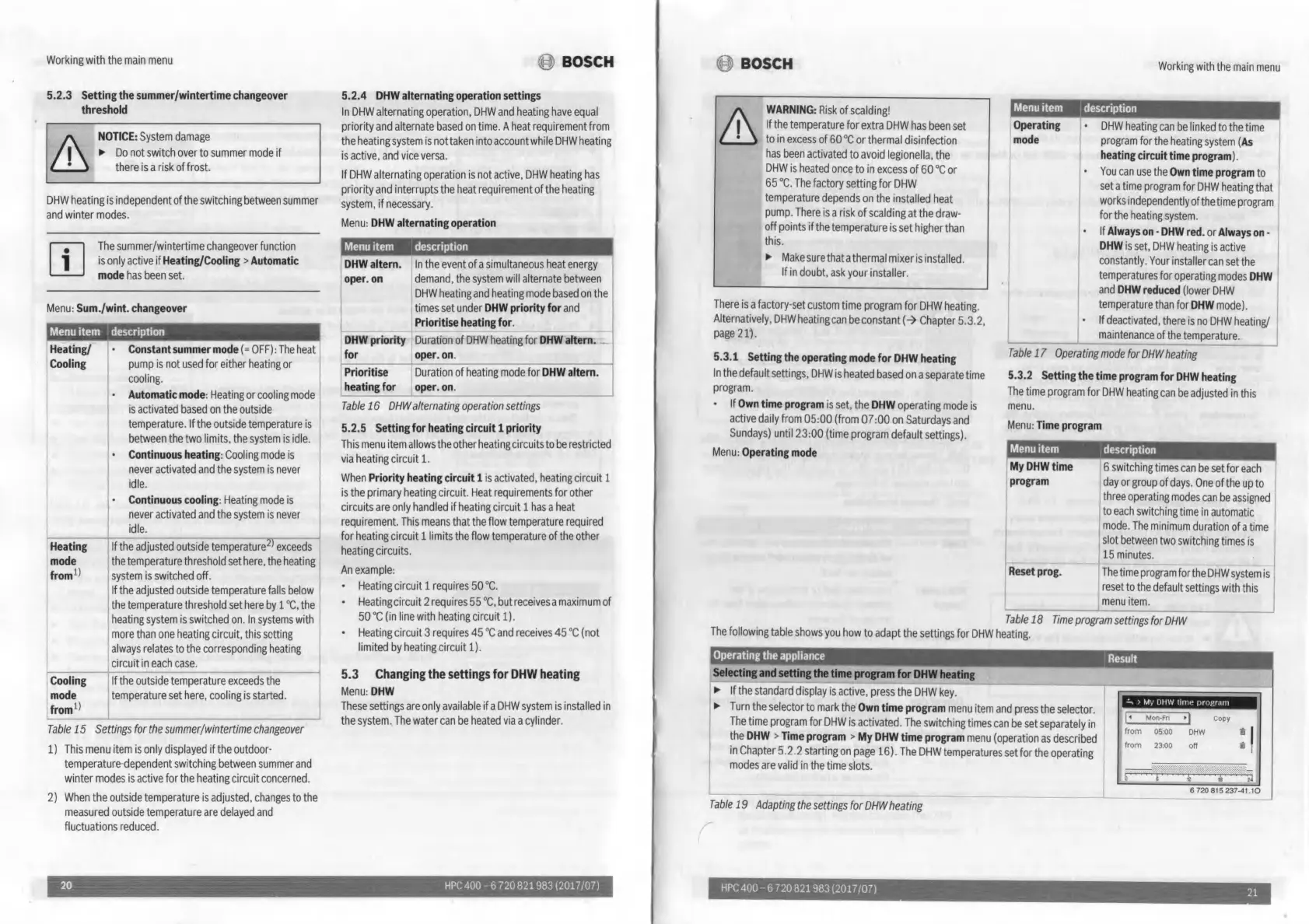

Working with the main menu
5.2.3 Setti ng the s ummer/w intertime changeove r
threshold
&
NOTICE : System damage
I ~ Do not switch over to summer mode if
•
there is a risk of frost.
DHW heating is independent of the switching between summer
and winter modes .
IT]
The summer/wintertime changeover function
1 is only active if Heat i ng/Cool i ng > Automatic
mode has been set.
Menu : Sum ./wint. changeover
Menu item description
Heating/
Cooling
Heating
I
mode
from
1
)
Constant summer mode (: OFF) : The heat
pump is not used for either heating or I
cooling .
Automat ic mode : Heating or cooling mode
is activated based on the outside I
temperature. If the outside temperature is
between the two limits , the system is idle.
Continuous heat i ng : Cooling mode is
never activated and the system is never
idle .
Cont i nuous cooling : Heating mode is
never activated and the system is never
idle .
If the adjusted outside temperature
2
)
exceeds
the temperature threshold set here, the heating I
I
system is switched off.
If the adjusted outside temperature falls below
the temperature threshold set here by 1 ·C, the I
heating system is switched on. In systems with
more than one heating circuit, this setting
always relates to the corresponding heating
circuit in each case .
r=--::---
Coolin g Ilf the outside temperature exceeds the
mode temperature set here, cooling is started .
from
1
)
Table 15 Settings for the summer/wintertime changeover
1) This menu item is only displayed if the outdoor -
temperature - dependent switching between summer and
winter modes is active for the heating circuit concerned .
2) When the outside temperature is adjusted, changes to the
measured outside temperature are delayed and
fluctuations reduced .
BOSCH
5.2.4 DHW alternating operat i on settings
In DHW alternating operation, DHW and heating have equal
priority and alternate based on time. A heat requirement from
the heating system is not taken into account while DHW heating
is active . and vice versa.
If DHW alternating operation is not active, DHW heating has
priority and interrupts the heat requirement of the heating
system, if necessary .
Menu: DHW alternating operation
ope r. on
In the event of a simultaneous heat energy
demand, the system will alternate between
DHW heating and heating mode based on the
times set under DHW priority for and
Prioritise heating for.
DHW priority Duration of DHW heating for DHW litem.
for oper . on .
I Prlor l tlse Duration of heating mode for DHW altern .
heating for oper . on .
Table 16 DHW alternating operation settings
5.2.5 Sett i ng for heat i ng circuit 1 priority
This menu item allows the other heating circuits to be restricted
via heating circuit 1.
When Priority heating ci rcu it 1 is activated , heating circuit 1
is the primary heating circuit. Heat requirements for other
circuits are only handled if heating circuit 1 has a heat
requirement. This means that the flow temperature required
for heating circuit 1 limits the flow temperature of the other
heating circuits.
An example :
Heating circuit 1 requires 50 ·C.
Heating circuit 2 requires 55 ·C, but receives a maximum of
500C (in line with heating circuit 1) .
Heating circuit 3 requires 45 ·C and receives 45 OC (not
limited by heating circuit 1) .
5.3 Changing the setti ng s for DHW heating
Menu : DHW
These settings are only available if a DHW system is installed in
the system . The water can be heated via a cylinder .
20 HI'( 400 b 720821983 (2017/07)
BOSCH
WARNIN G: Risk of scalding!
If the temperature for extra DHW has been set
to in excess of 60 OC or thermal disinfection
has been activated to avoid legionella , the
DHW is heated once to in excess of 60·C or
65 ·C. The factory setting for DHW
temperature depends on the installed heat
pump . There is a risk of scalding at the draw ·
off points if the temperature is set higher than
this.
~ Make sure that a thermal mixer is installed .
If
in doubt. ask your installer .
There is a factory · set custom time program for DHW heating .
Alternatively , DHWheatingcan be constant (~Chapter 5.3 .2,
page 21' .
5.3.1 Se tt ing the operat lnc mode for DHW heatin g
In the default settings, DHW is heated based on a separate time
program .
If Own time program is set, the DHW operating mode is
active daily from 05 : 00 (from 07 : 00 on Saturdays and
Sundays) until 23:00 (time program default settings) .
Menu : Operatin c mode
Working with the main menu
Menu item description
Operati ng
mode
DHW heating can be linked to the time
program for the heating system (As I
he at i ng circuit time program ). I
I
·
You can use the Own time program to I
set a time program for DHW heating that
works independently of the time program
for the heating system .
If Always on - DHW red. or Alway s on •
DHW is set, DHW heating is active I
constantly . Your installer can set the
temperatures for operating modes DHW
and DHW redu ced (lower DHW
temperature than for DHW mode) .
If
deactivated, there is no DHW heating/ J
maintenance of the temperature .
Table 17
Operating mode for DHW heating
5.3 .2 Se tting the time program for DHW heat i ng
The time program for DHW heating can be adjusted in this
menu .
Menu : nme program
Menu Item deSCription
My DHW time
pro gr am
R eset pro c.
---
6 switching times can be set for each
day or group of days . One of the up to
three operating modes can be assigned
10 each switching time in automatic
mode . The minimum duration of a time
slot between two switching times is
15 minutes .
The time program for the DHW system is I
reset to the default settings with this
menu item .
Table 18
The following table shows you how to adapt the settings for DHW heating .
Time program settings for DHW
Operating the appliance Result
..... ........................ DHW ........
~ If the standard display is active. press the DHW key .
•
Turn the selector to mark the Own time program menu item and press the selector.
The time program for DHW is activated . The switching times can be set separately in
the DHW > TIme progra m> My DHW time program menu (operation as described
in Chapter 5.2 .2 starting on page 16) . The DHW temperatures set for the operating
modes are valid in the time slots .
Table 19 Adapting the settings for DHW heating
I'
Mon·fn
from 05.00
from
23 :00
..--.
-I
Copy
OHW
: I
off
,
•
.l
672081523Hl . 10
HPC400-b710821983(2017107) 21
