Installation Instructions
Bosch IDS BOVA15 Split System Heat Pump - BTC 761701317 A (02.2022)

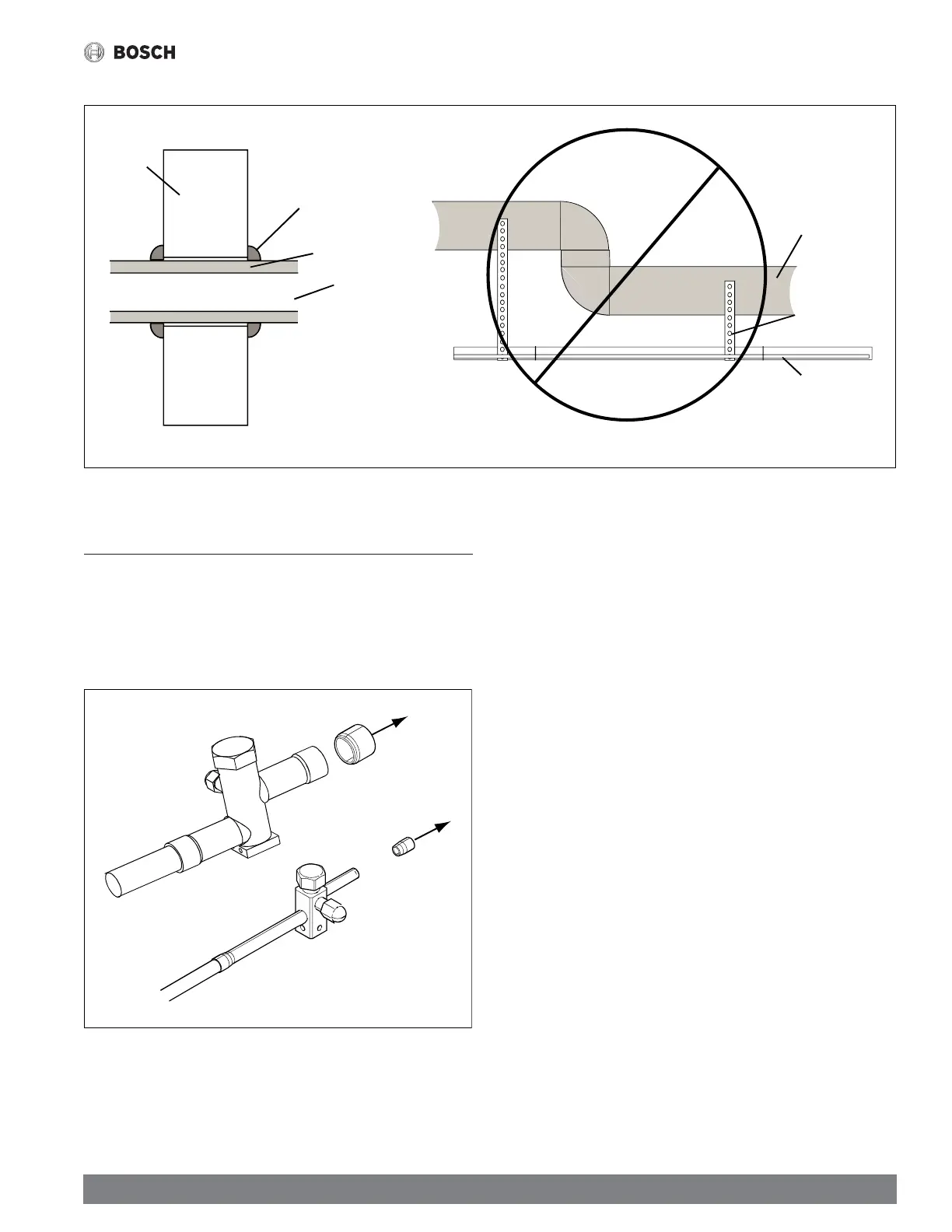

Figure 13
Isolator
Lineset
Ductwork
Suction Line
Sealant
Insulation
Wall
Isolation Through Wall
DO NOT hang linesets from ductwork
7 Refrigerant Line Brazing
7.1 Braze The Refrigerant Lines
1. Remove caps or plugs. Use a deburring tool to deburr the pipe ends. Clean
both internal and external surfaces of the tubing using an emery cloth.
