Fitting
1
2
A
(1)
(5)
(14)
(16)
(15)
(18)
(1)
On-board computer
(5)
Holder for on-board computer
(14)
Drive unit contacts
(15)
Locking screw for on-board computer
(16)
Headset screw
(18)
Magnetic holder

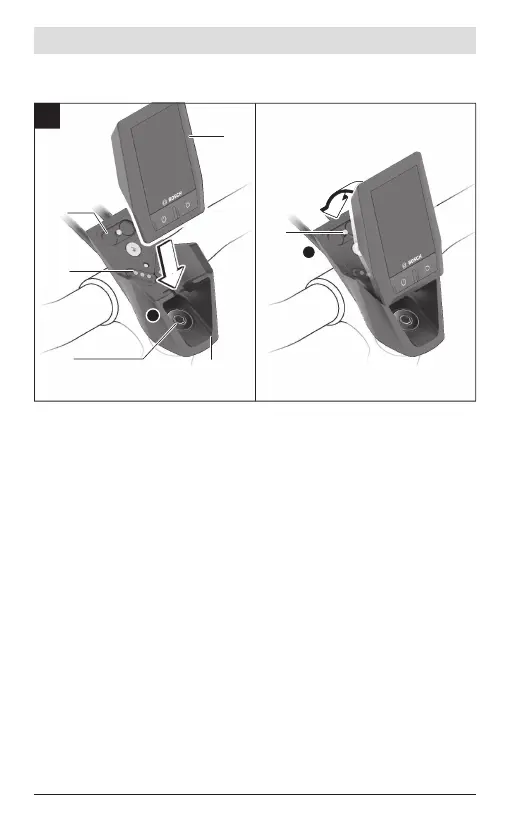

Fitting and removing the on-board computer (see figureA)
Fit the lower part of the Kiox into the holder(5) first and tilt it forward gently
until you can feel that the on-board computer is firmly fixed in the magnetic
holder.
To remove the on-board computer, hold it by the top end and pull it towards
you until it disengages from the magnetic holder.
u Remove the on-board computer when you park the eBike.
The on-board computer can be secured in place to prevent it from being re-
moved from the holder. To do this, loosen the headset screw(16) until the
