Mini VRF Heat Pump Outdoor Unit 6 720 874 421 (2017/04) ZA

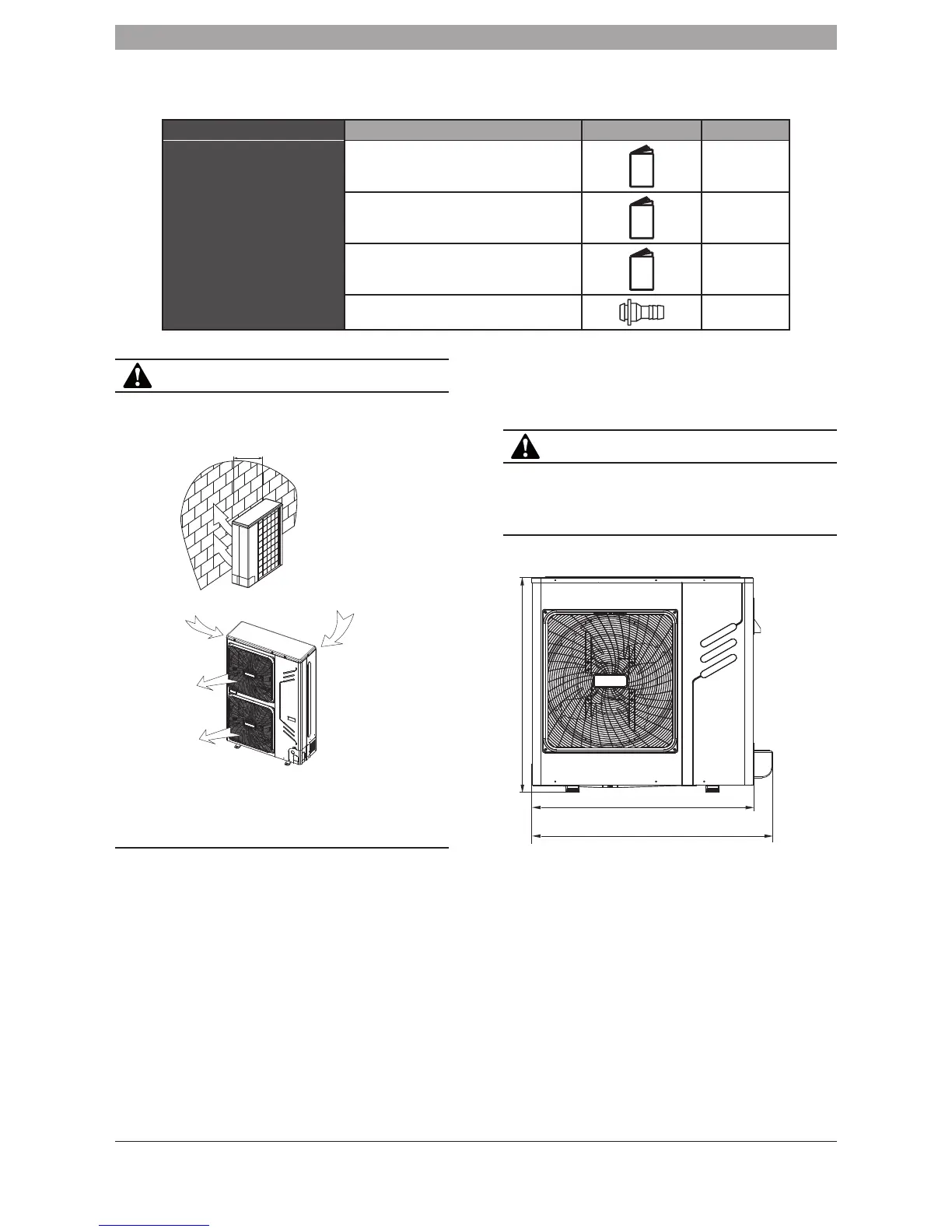

ATTACHED FITTINGS | 3
2. ATTACHED FITTINGS
Ensure all fittings are supplied with unit prior to installation.
NAME SHAPE QUANTITY
INSTALLATION FITTINGS
1. Outdoor unit installation manual 1
2. Outdoor unit owner’s manual 1
3. Indoor unit owner’s manual 1
4. Outflow connecting tube 1
CAUTION
■ Install the unit so that its discharge port faces to the wall of the
building. Keep a distance of 2000 mm or more between the unit and
the wall surface.
2000
Fig. 2-1
Strong
wind
Strong
wind
Fig. 2-2
■ Do not install the unit in the following locations as component failure
will occur.
• Where machine oil is present.
• Where sulphuric acid is present.
• Where high frequency radio waves are likely to be generated.
3. OUTDOOR UNIT INSTALLATION
3.1 Installation location
The following locations may cause component failure.
• Where there is a combustible gas leakage.
• Where there is oil surrounding.
• Where there is salty air surrounding.
• Where there is caustic gas (the sulfide, for example) existing in
the air.
• A location where discharge air will affect others.
• A location where noise affects neighbors.
• A location that is too weak to bear the weight of the unit.
• A location which is uneven.
• A location where there is insufficient ventilation.
• Near a private power station or high Frequency equipment.
• A location where the indoor/outdoor unit, power cord and
connecting wires are less than 1m away from a tv or radio.
• Installing the unit where there is insufficient maintenance access.
CAUTION
Keep the indoor and outdoor power supply wiring and communication
wiring at least 1 meter away from televisions and radios. This is to
prevent image and noise interference. In certain circumstances, 1m
may not be sufficient.
3.2 Installation clearances (Unit:mm)
To Next Page
