3.4 Network (and power) connector

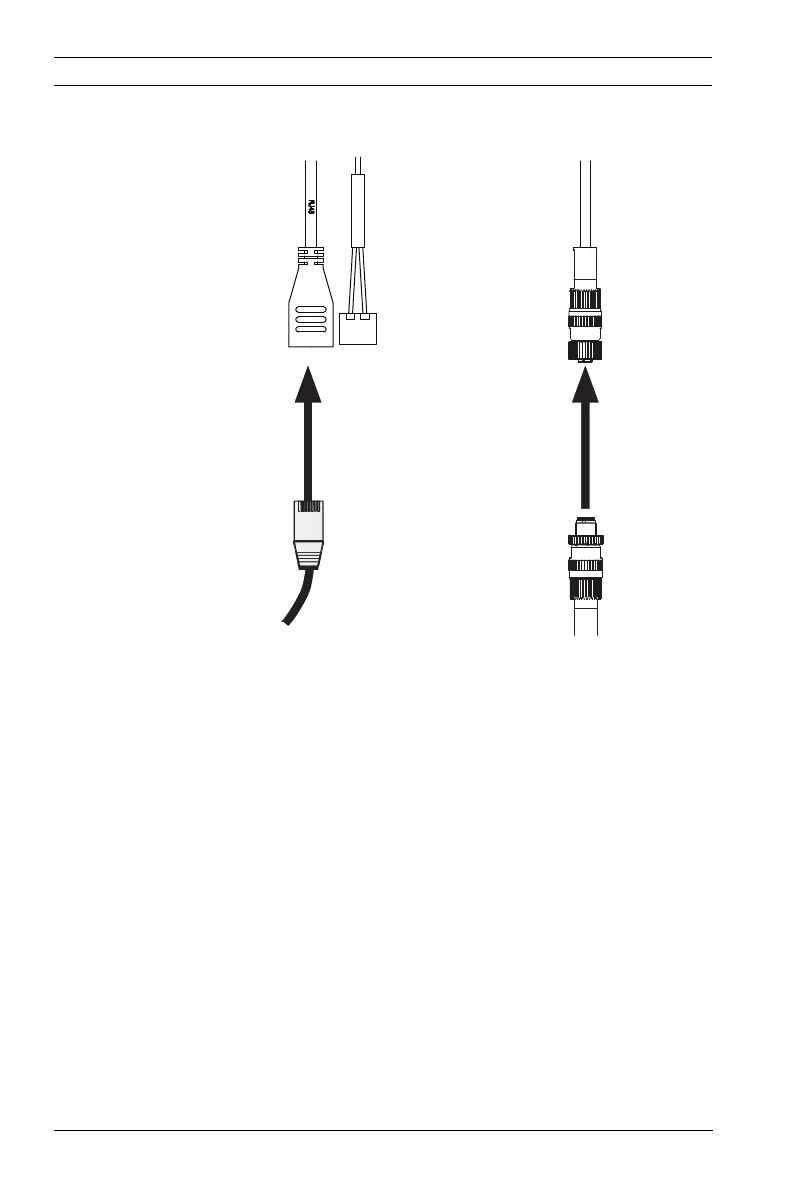

Figure 3.3 Network connection
– Connect the camera to a 10/100 Base-T network.
– Use a shielded UTP Category 5e cable with RJ45
connectors (M12 connector for PM version).
– Power can be supplied to the camera via the Ethernet
cable compliant with the Power-over-Ethernet
(IEEE 802.3af) standard.
RJ45
Ethernet (PoE)
M12
Ethernet (PoE)
