18 en | Installation IP Camera 200 Series
AR18-09-B003 | v1.1 | 2010.05 Installation and Operation Manual Bosch Security Systems
3.4 Network (and power) connector

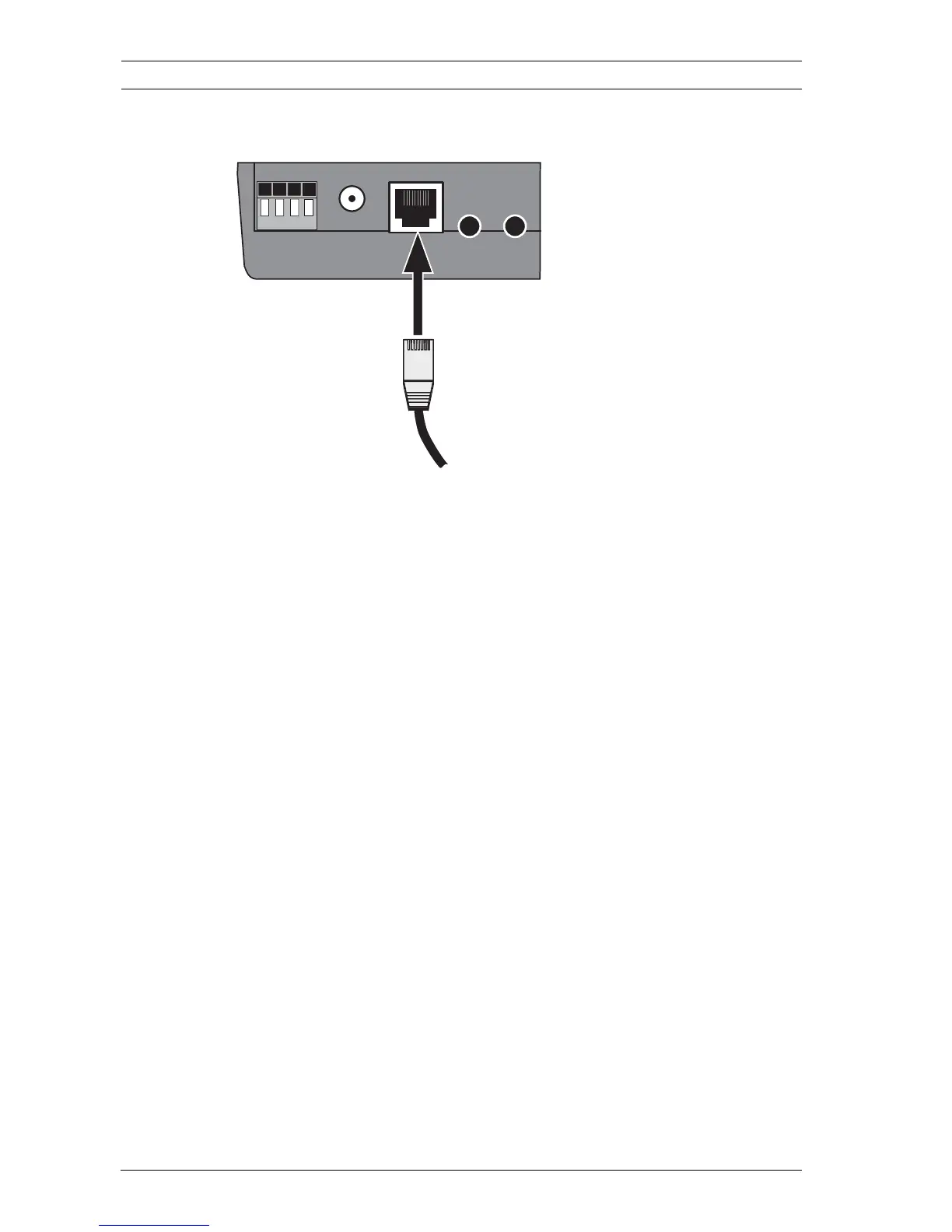

Figure 3.3 Network connection
– Connect the camera to a 10/100 Base-T network.
– Use a shielded UTP Category 5e cable with RJ45
connectors.
– Power can be supplied to the camera via the Ethernet
cable compliant with the Power-over-Ethernet
(IEEE 802.3af) standard.
1 2 3 4 DC 12V Ethernet Line-out Line-in
RJ45
Ethernet
(PoE)
