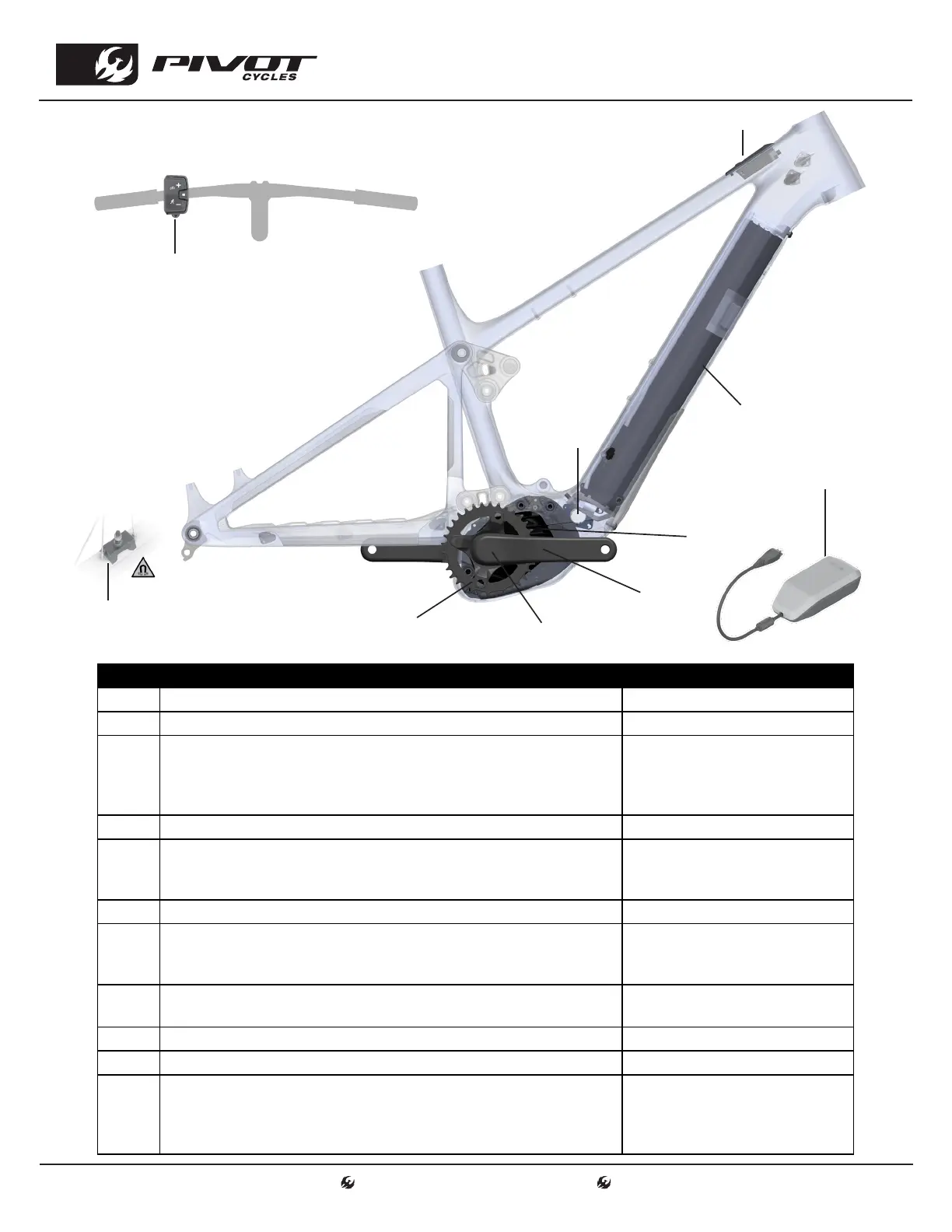

Bosch Drive System Schematic
LETTER PART DESCRIPTION PART NAME
A Mini Remote EB13.100.001
B System Controller EB13.100.000
C
PowerTube 750 Battery (US, CAN, JP, KOR)
PowerTube 750 Battery (EU28, CH, NO, AUS, NZ)
PowerTube 625 Battery (Ride Level Builds US, CAN, JP, KOR)
PowerTube 625 Battery (Ride Level Builds EU28, CH, NO, AUS, NZ)
EB12.100.00Z
EB12.100.00X
EB12.100.013
EB12.100.011
D Rim Magnet (Speed Sensor) EB11.200.015
E
Spider & Chainring (Ride Builds)
Spider & Chainring (Pro Builds)
Spider & Chainring (Team Builds)
ES-BSC-104-565-34T
ES-BSC-104-565/ 00.6218.034.003
ES-BSC-104-565/ 00.6218.034.003
F&G Drive Unit Lockring & O-Ring 1270.014.085/ 1270.016.119
H
Crank Arms (Ride Builds)
Crank Arms (Pro Builds)
Crank Arms (Team Builds)
EC-1ISIS-160A
EC-1ISIS-160A
EC-1ISIS-160CM
I
CX Performance Drive Unit
CX Performance Race Edition Drive Unit
EB11.100.000
EB11.100.00G
J Charging Socket & Cable EB12.120.048
K Charging Socket Cover EB12.120.01B
L
Battery Charger 4A110V/Cable (US)
Battery Charger 4A 230V/Cable(EU)
Battery Charger 4A 230V/Cable(AUS)
Battery Charger 4A 230V/Cable(UK)
EB12.110.000/ 1270.020.343
EB12.110.001/ 1270.020.330
EB12.110.001/ 1270.020.344
EB12.110.001/ 1270.020.331
SCHEMATICS
(C)
(D)
(E)
(F&G)
(A)
(B)
(H)
(J&K)
(L)
(I)
