BIKE SET-UP
AIR PRESSURE
SUGGESTED REBOUND
SETTING FLOAT X
[bar] [psi]
< 8.3 <120 1 (9)
8.3 - 9.7 120-140 2 (8)
9.7 - 11 140-160 3 (7)
11 - 12.4 160-180 4 (6)
12.4 - 13.8 180-200 5 (5)
13.8 - 15.2 200-220 6 (4)
15.2 - 16.5 220-240 7 (3)
16.5 - 17.9 240-260 8 (2)
17.9 - 19.3 260-280 9 (1)
19.3 - 20.7 280-300 CLOSED
Clicks from OPEN (Clicks from CLOSED)
Setting Air Pressure on the Fox 36 Forks
• Fox recommends setting sag between 15% and 20% of the total fork travel. The Shuttle AM comes
with a 160mm fork, so the proper sag measurement is 24.0 - 32.0mm.
• The air pressure in the Fox 36 forks should not exceed 8.3 [bar] (120 [psi]).
• To achieve the proper sag, reference the chart below for an initial starting point.
• Just like with the shock sag the fork needs to be equalized when the pressure is changed. Press
down on the fork a few times after making a pressure change to get an accurate measurement.
RIDER WEIGHT
FOX 36
AIR PRESSURE
[kg] [lbs]
55 - 59 120 - 130 58 [psi] / 4.0 [bar]
59 - 64 130 - 140 64 [psi] / 4.4 [bar]
64 - 68 140 - 150 68 [psi] / 4.7 [bar]
68 - 73 150 - 160 72 [psi] / 5.0 [bar]
73 - 77 160 - 170 76 [psi] / 5.2 [bar]
77 - 82 170 - 180 80 [psi] / 5.5 [bar]
82 - 86 180 - 190 84 [psi] / 5.8 [bar]
86 - 91 190 - 200 89 [psi] / 6.1 [bar]
91 - 95 200 - 210 93 [psi] / 6.4 [bar]
95 - 100 210 - 220 97 [psi] / 6.7 [bar]
100 - 105 220 - 230 102 [psi] / 7.0 [bar]
105 - 109 230 - 240 106 [psi] / 7.3 [bar]
109 - 114 240 - 250 110 [psi] / 7.6 [bar]

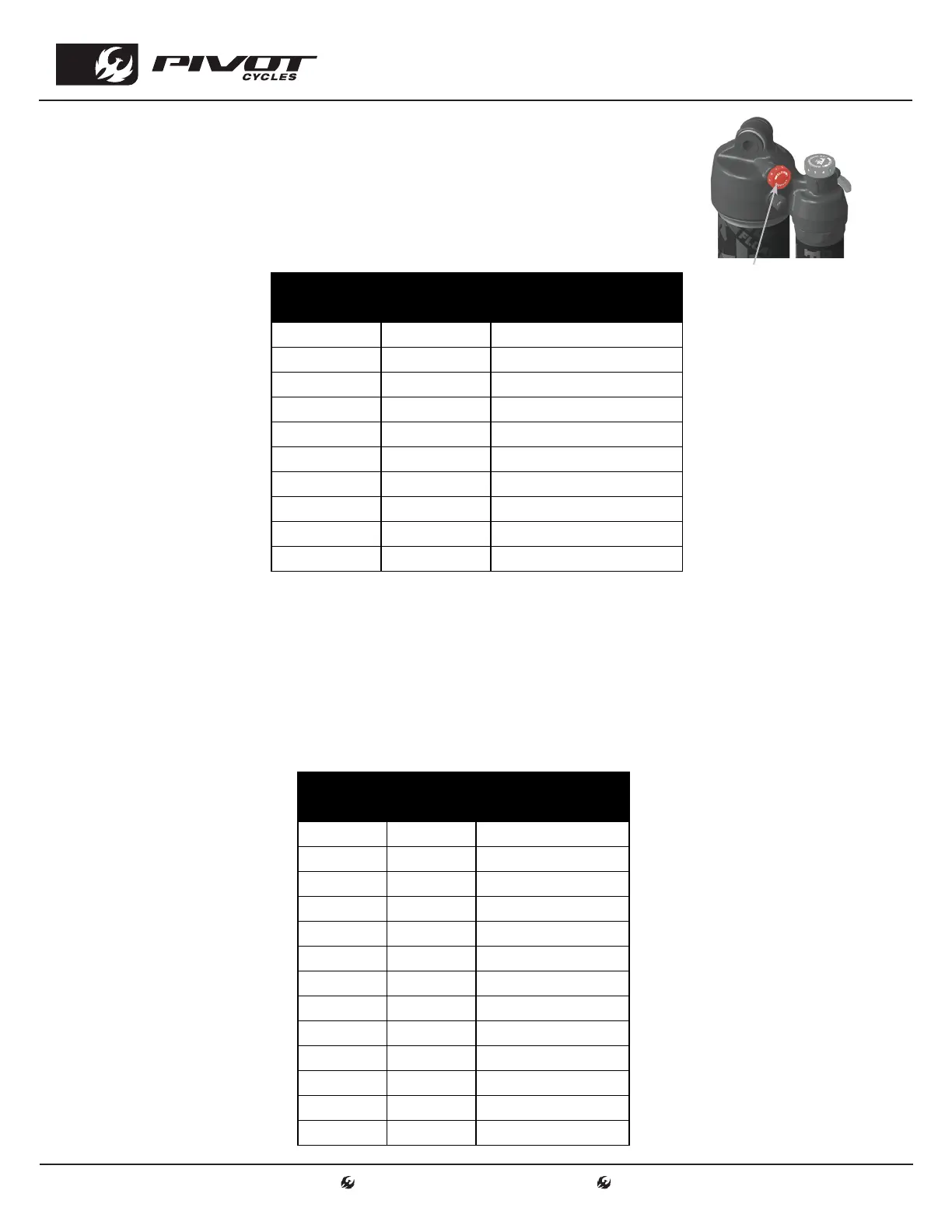

Setting Rebound Damping on the Fox Float X
• Rebound is set from the most open (fully counter-clockwise) position.
• The rebound setting is determined by the air pressure in the shock.
• Refer to the table below for the suggested rebound setting. The number
in the chart refers to how many clicks in (clockwise) from the open
setting the rebound should be set. Fox sets rebound from the closed
position, so that has been provided in the table in parentheses.
FLOAT X REBOUND KNOB
