Installation and Operating Instructions
|
Power Max Level 2 Charging Station
569217 | REV. D | 09.08.2016

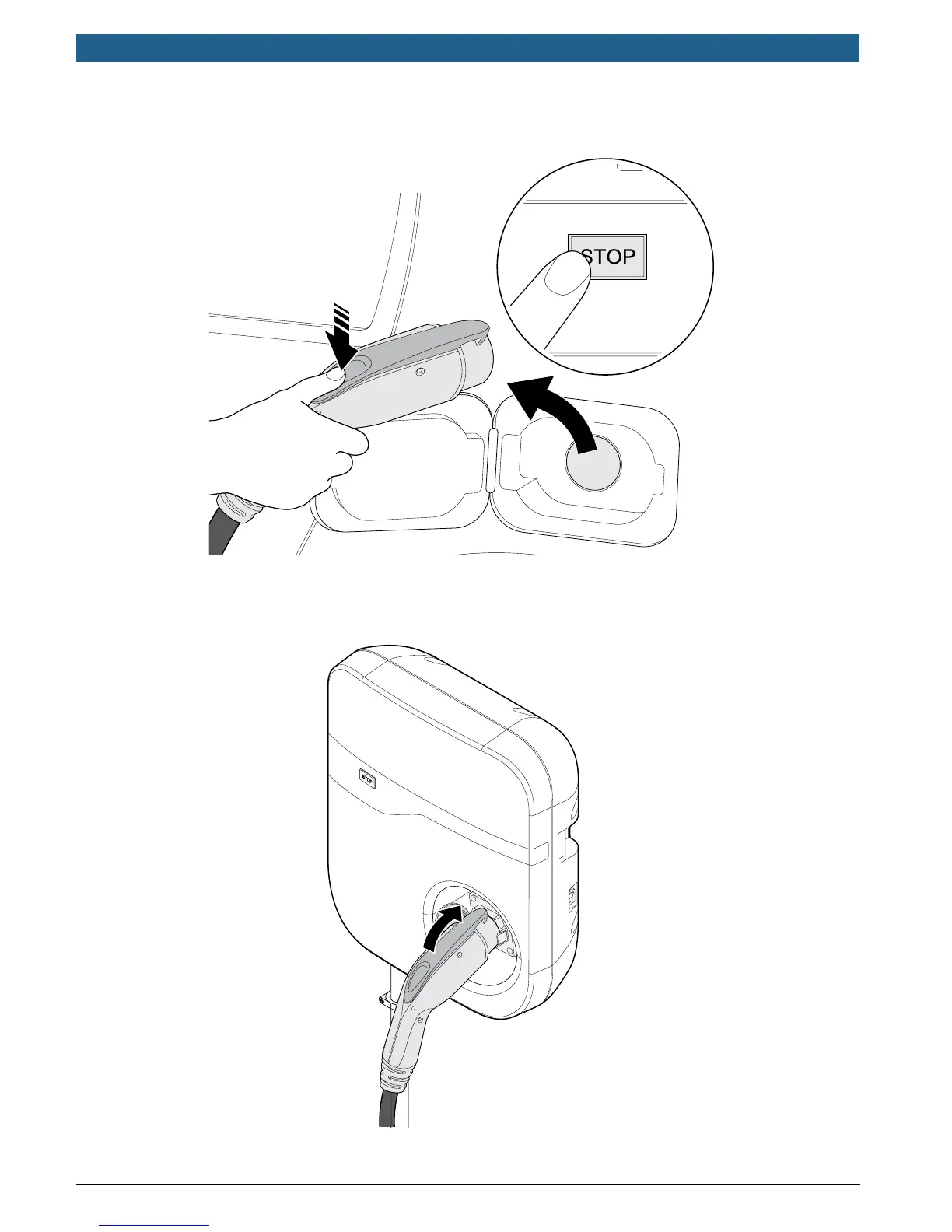

3. See Figure 6-3. To stop charging before charging is complete, disconnect the charging plug from the EV or press
the “Stop” button. Remove and reconnect the charging plug with the EV to start charging again.
Figure 6-3. Stop charging
4. See Figure 6-4. When charging is complete, disconnect charging plug from the EV and place it in the plug dock
to store the charging cable properly.
Figure 6-4. Place the charging plug in the plug dock
