Remote control installation
6 720 606 990
Remote control transceiver PCB
installation

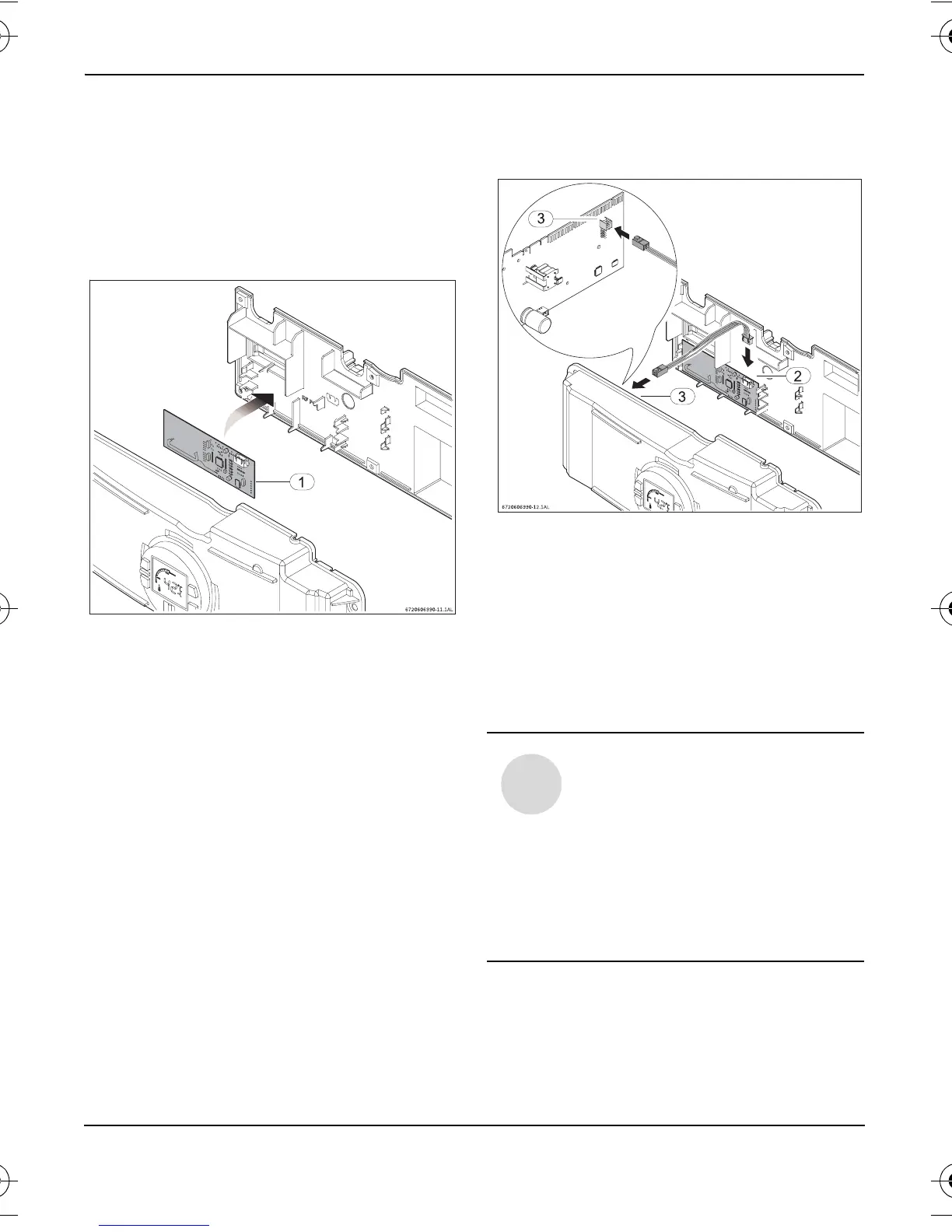

B Place the remote control PCB in the
back cover of the control unit as
shown in Fig. 8.
Fig. 8
B Connect the supplied cable
between the main PCB and the
remote control PCB as shown in Fig.
9.
Fig. 9
B Reassemble all parts in the reverse
order.
5.2 Remote control
activation
B Connect power to heater.
B Press ON / OFF button on the
appliance to OFF.
i
Before the remote
control will work, it must
be activated using the
procedure described
below with the operator
standing in front of the
appliance.
