30/60 Installation
Bosch Rexroth AG, A10VO, A10VSO, A10VNO, A10VSNO Series 52 and 53, RE 92703-01-B/04.2018
7.4 Installing the axial piston unit
7.4.1 Preparation
1. Check the specifications on the name plate to see you have the correct axial
piston unit.
2. Compare the material number and designation (type code) with the details in the
order confirmation.
If the material number for the axial piston unit does not match the one
in the order confirmation, contact your local contact person for clarification.
You can find their contact information under
www.boschrexroth.com/addresses
3. Before installing, completely drain the axial piston unit to prevent mixing with the
hydraulic fluid used in the machine/system.
4. Check the direction of rotation of the axial piston unit (on the name plate) and
make sure that this corresponds to the direction of rotation of the drive motor.
L
R

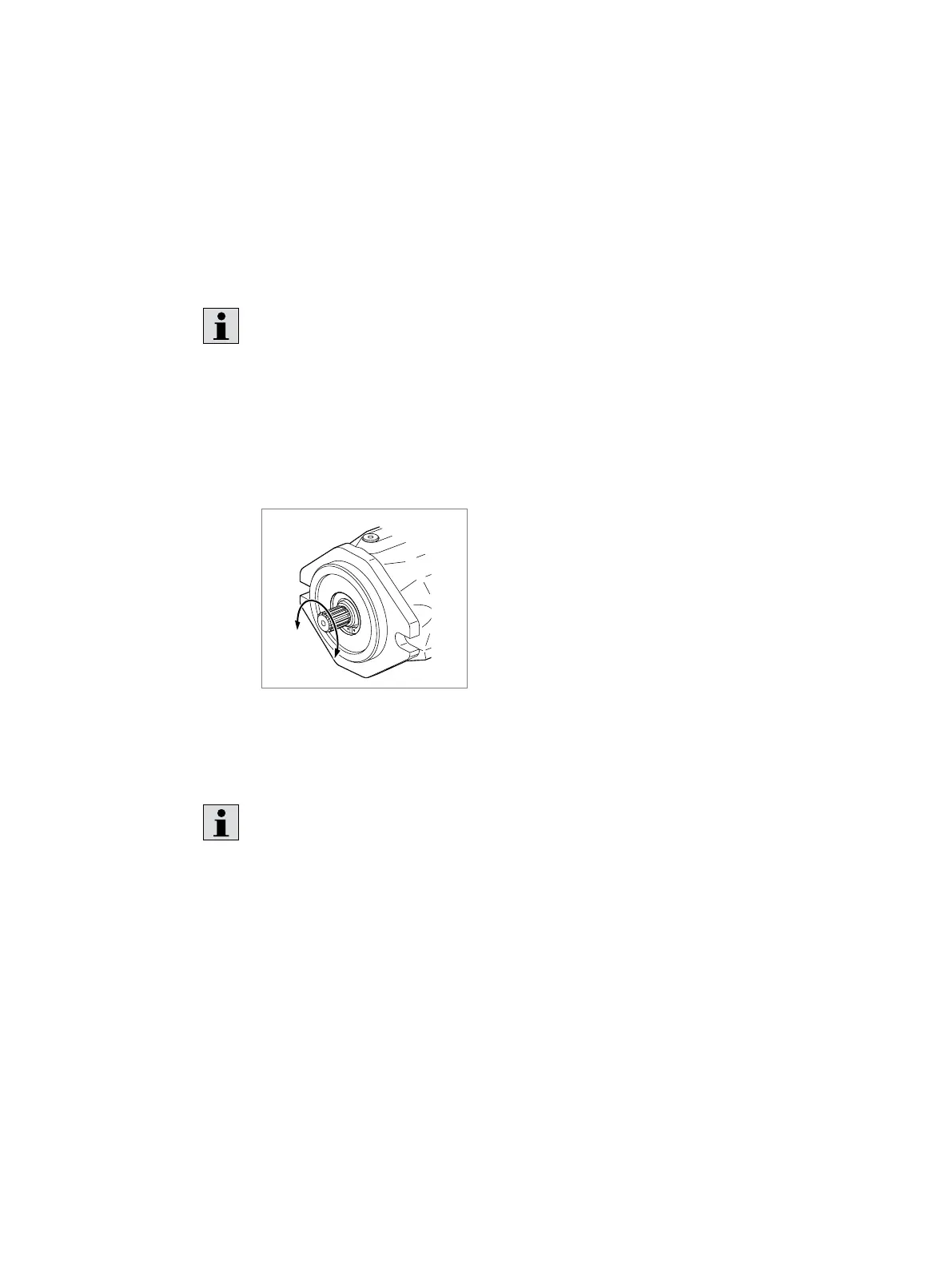

Fig. 10: Direction of rotation
L
Counterclockwise
R
Clockwise
The direction of rotation as indicated on the name plate determines the direction
of rotation of the axial piston unit as viewed on the drive shaft; see chapter5.3
“Product identification” on page20. For information on the direction of
rotation of the drive motor, please refer to the drive motor manufacturer's
instruction manual.
7.4.2 Dimensions
The installation drawing contains the dimensions for all connections and ports on
the axial piston unit. Also observe the manuals provided by the manufacturers of the
other hydraulic components when selecting the required tools.
7.4.3 General instructions
Follow these general instructions when installing the axial piston unit:
• Note that certain installation positions will affect the control system. Gravity, dead
weight and case pressure can cause minor characteristic shifts and changes in
response time.
