Transport and storage 37/104
RE 92076-01-B/10.2017, A4... with HS5E pilot control valve/Series 3x, Bosch Rexroth AG

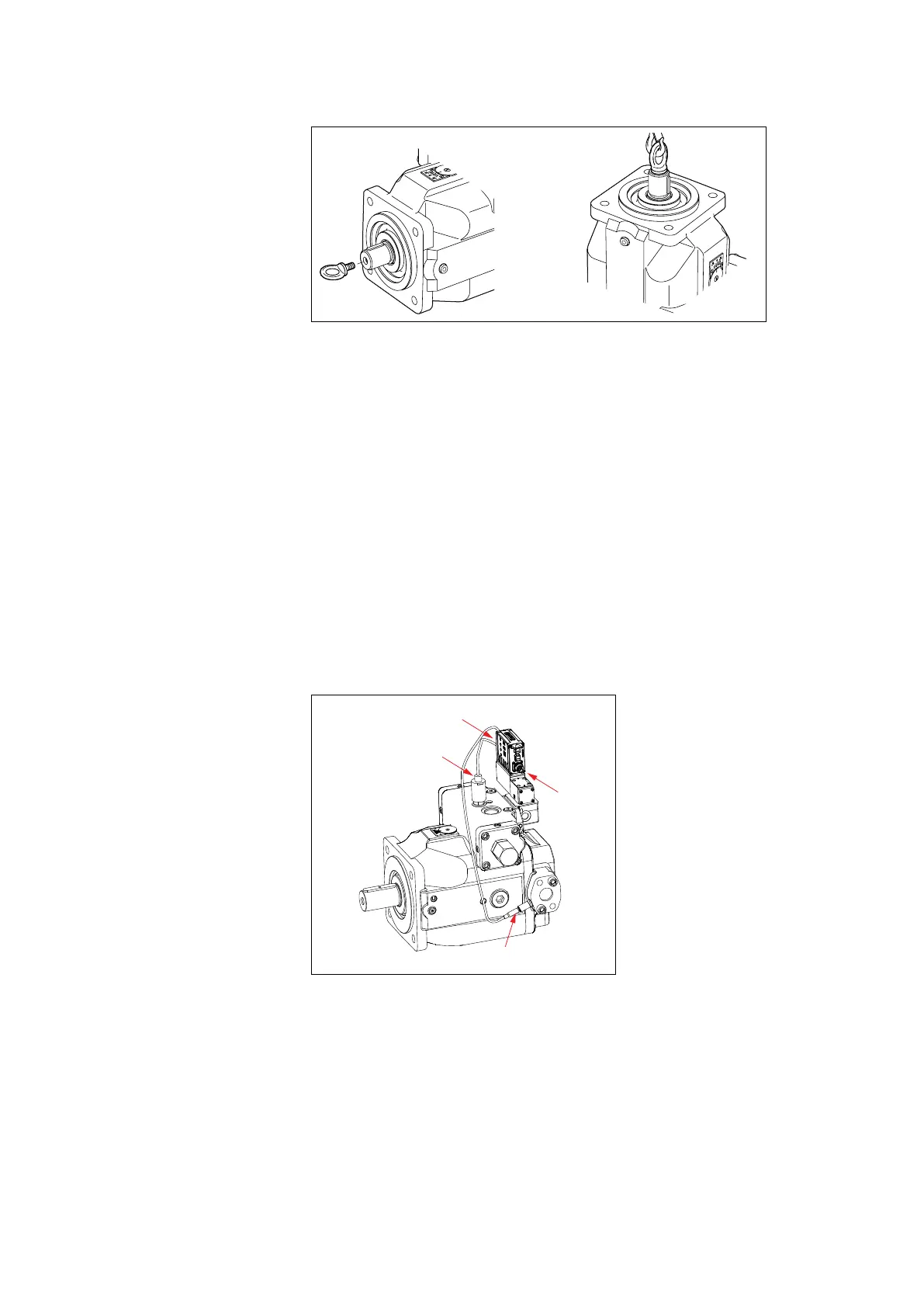

Fig. 9: Mounting the eye bolt in the drive shaft
WARNING! Danger from suspended loads!
During transport with a lifting device, the axial piston unit can topple out of the
lifting strap and cause injuries.
▶ Use the widest possible lifting strap.
▶ Make sure that the axial piston unit is securely fixed with the lifting strap.
▶ Only guide the axial piston unit by hand for fine positioning and to avoid
oscillations.
▶ Never stand or put your hands under a suspended load.
▶ Place the lifting strap around the axial piston unit such that it does not pass
over assembled parts (e.g. valves, electrical assembled parts, and sensors [red
arrows]) and that the axial piston unit is not suspended from assembled parts
(see Fig. 10).
Fig. 10: Transporting the axial piston unit
Transport with lifting strap
