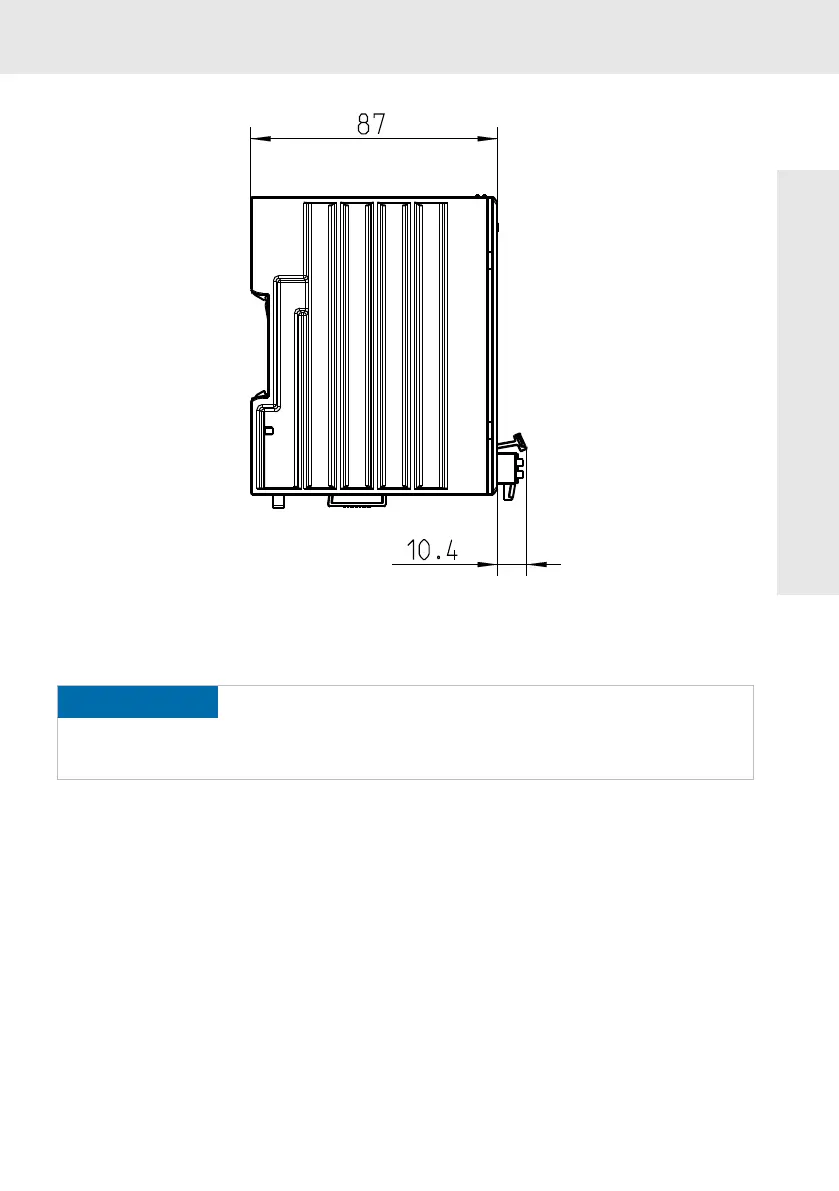

Fig. 6: Side view
10.2
Installation notes
NOTICE
Destruction of the device due to electrostatic discharge
The device contains components that can be damaged or destroyed by elec-
trostatic discharge. Comply with the required safety measures against elec-
trostatic discharge (ESD) acc. to EN 61340-5-1 when operating the control.
• Mounting location
The control has the degree of protection IP 20 and is thus intended for use in a closed control cab-
inet or control box (terminal box) of the degree of protection IP 54 or higher The control cabinet
has to be provided with sufficient stability and rigidity (acc. to UL 61010-1, 61010-2-201).
• Mounting rail
Mount the control on a 35 mm standard mounting rail. Only use a mounting rail with an design
height of 7.5 mm (corresponds to TH 35-7.5 acc. to EN 60715).
The fastening distance of the mounting rails may not exceed 200 mm. This distance is required to
ensure stability while mounting and dismounting the control.
Mounting, dismounting and electric installation
