Bosch rexroth CytroBox - 7.5.4 Interfaces 22 X1 and 22 X2: Multi-Ethernet control communication as well as 30 X1: CytroConnect

68/128 Assembly
Bosch Rexroth AG, CytroBox, RE 51057-B/11.19

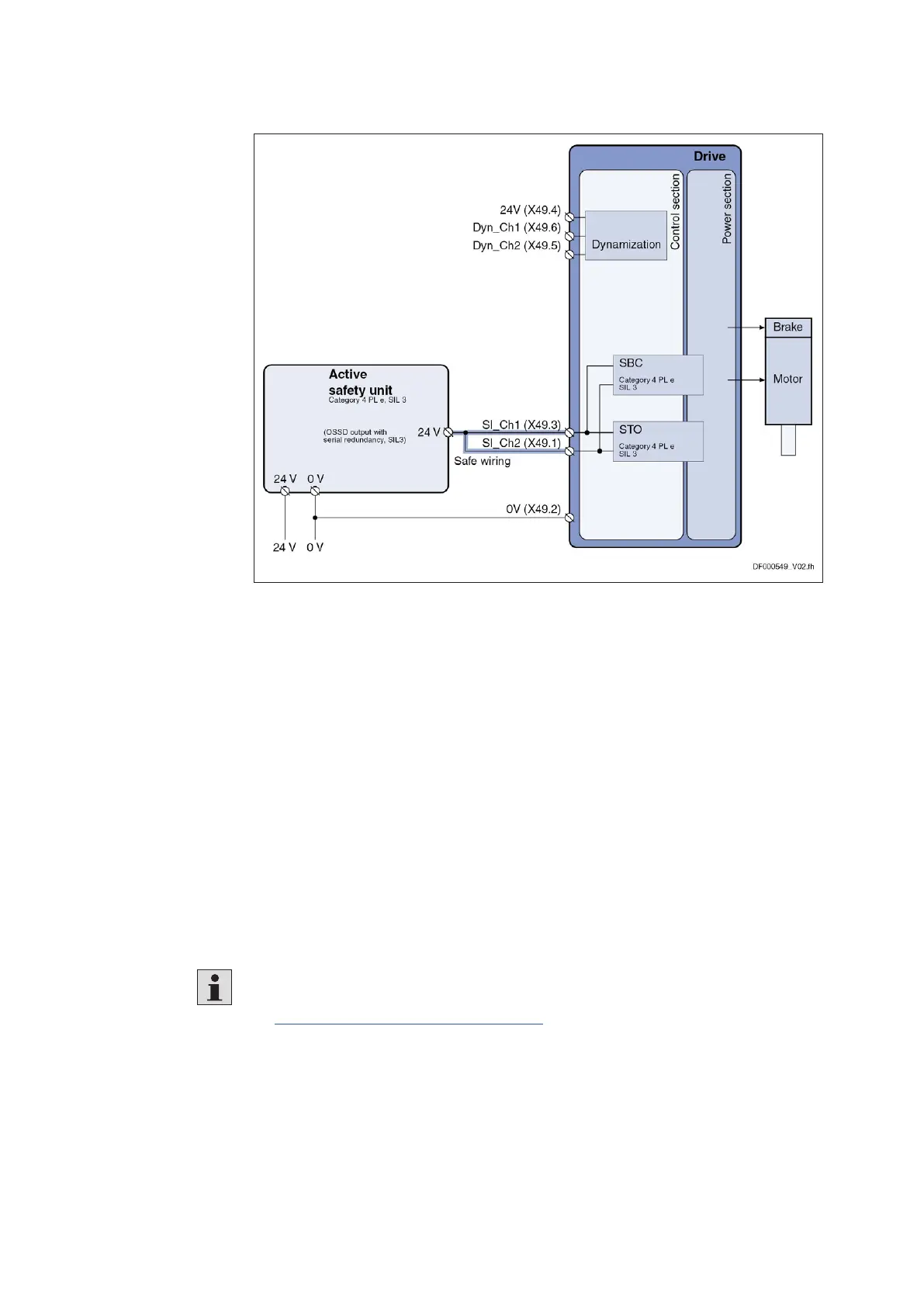

Fig. 19: With active safety unit (plus-plus switching outputs)
When selecting via a plus-plus switching safety unit, the following errors must be
detected by the OSSD outputs:
• Short-circuit of selection signals with 24V
• Short-circuit between both selection signals
7.5.4 Interfaces 22X1 and 22X2: Multi-Ethernet control communication as well as
30X1: CytroConnect
The CytroBox can be connected with the superior machine control via the
multi-Ethernet interfaces 22X1 and 22X2. Interface 22X1 (network output) is always
connected. Interface 22X2 (network input) is used for connecting further devices.
If the hydraulic power unit is located in an area without mobile phone reception,
anetwork connection via LAN can be established with the CytroConnect
connection30X1.
If you wish to use the CytroConnect service via this connection type,
pleasecontact us at the following e-mail address:
Consult-and-Connect@boschrexroth.de
 Connect the CytroConnect connection 30X1 to the company network using
acorresponding RJ45 line connector.
