86/128 Commissioning
Bosch Rexroth AG, CytroBox, RE 51057-B/11.19
Below, the major configuration steps for the IndraDrive are described.
1. Activating the field bus (P-0-4089.0.1 = 3)

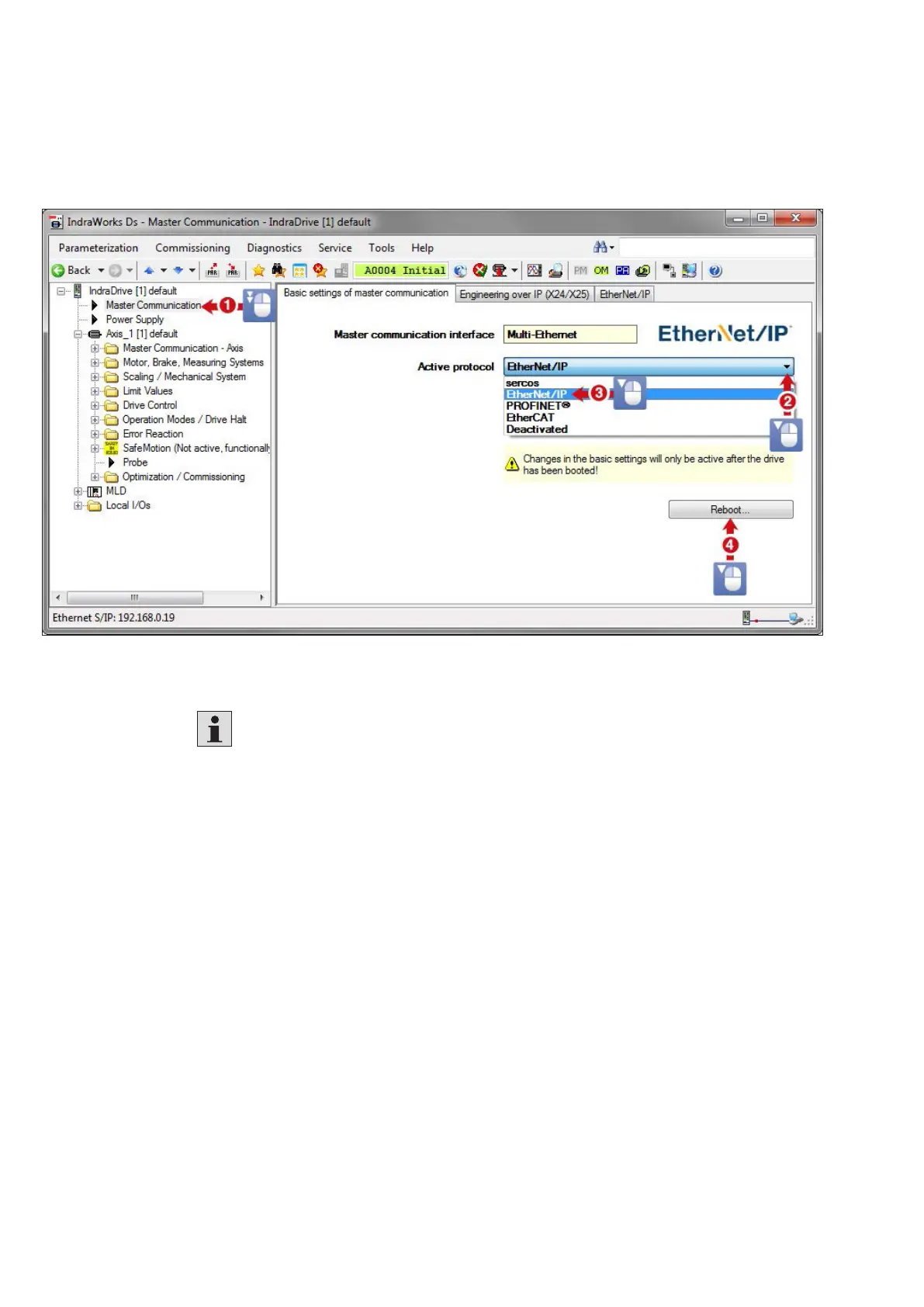

Fig. 31: Activating the EtherNet/IP™
Restart (C6400) required!
2. The slave address (P-0-4025) can be set optionally; the communication is
IP-based and is configured on the superior controller.
EtherNet/IP™
