① Fan adapter
② Cover sheet
③ Mounting screws

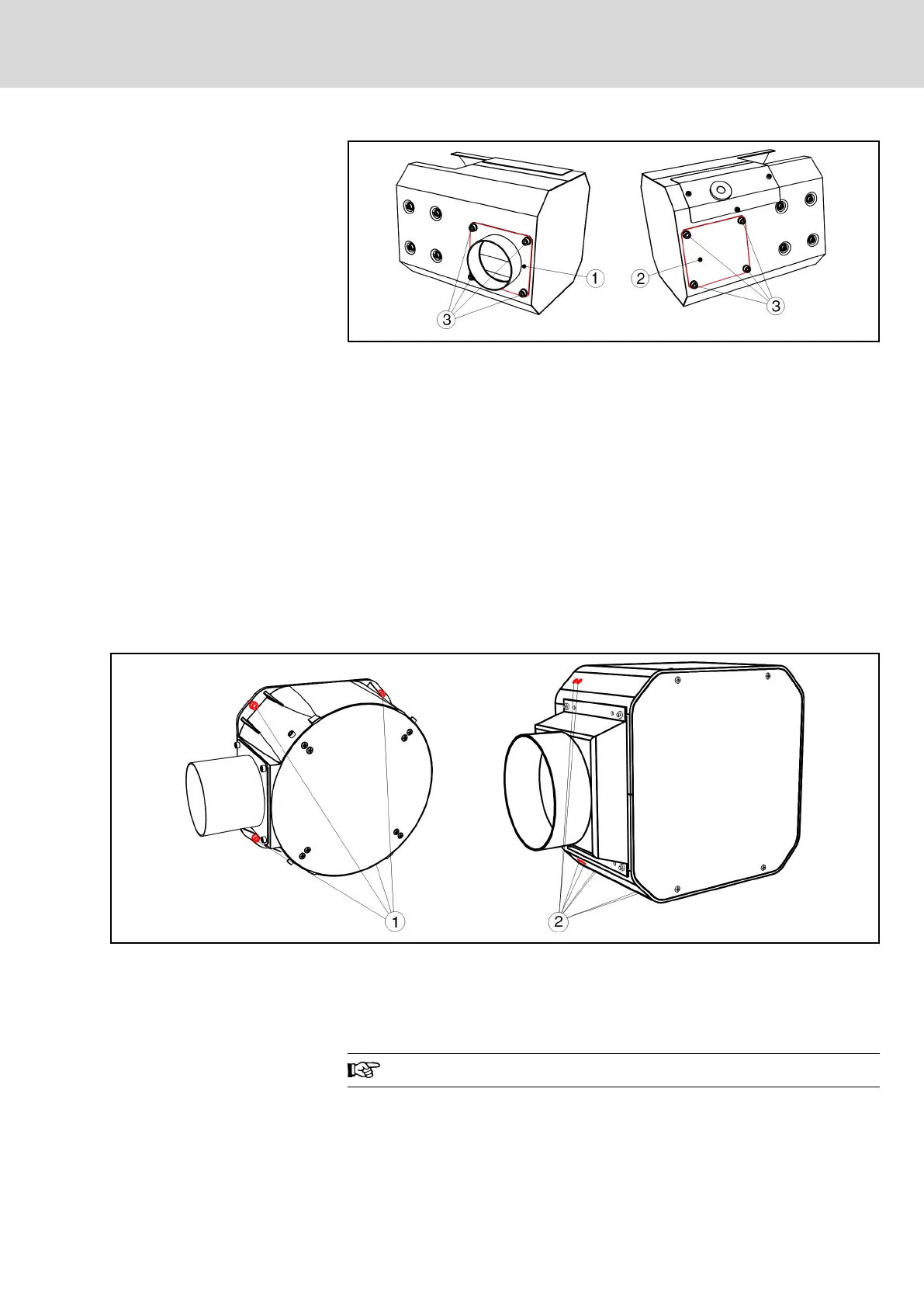

Fig. 9-6: Fan cover on the MAD100 designed with fan cowl
When changing the output direction of the fan cowl proceed as follows:
1. Loosen the fastening screws ③ on the fan cowl ① and on the cover
sheet ②.
2. Change the position of the fan cowl and the cover.
3. Fasten the fan cowl and the cover into the changed position with all fas‐
tening screws again.
Fan cover with fan cowl on
MAD130 and MAD160
The output direction of the fan cowl on the MAD130 and MAD160 can be
changed by rotating the complete fan cover. Possible output directions -
right / left / bottom / top. To rotate the output direction, disassamble the fan
cover off the motor. The following figure shows the dismantled fan cowl.
① Fan cover - fastening screws (4 pieces) on MAD130
② Fan cover - fastening screws (8 pieces) on MAD160
Fig. 9-7: Fan cover on the MAD130 (left) and MAD160 (right) designed with
fan cowl.
When changing the output direction of the fan cowl proceed as follows:
Before working safe the fan cover against falling down!
1. Loosen and remove the fastening screws ① or ② of the fan cover.
2. Turn the fan cover in steps of each 90° into the required output direc‐
tion.
