Installation Instructions
Singular Combi Boiler - BTC 439003301 B (2021/07)

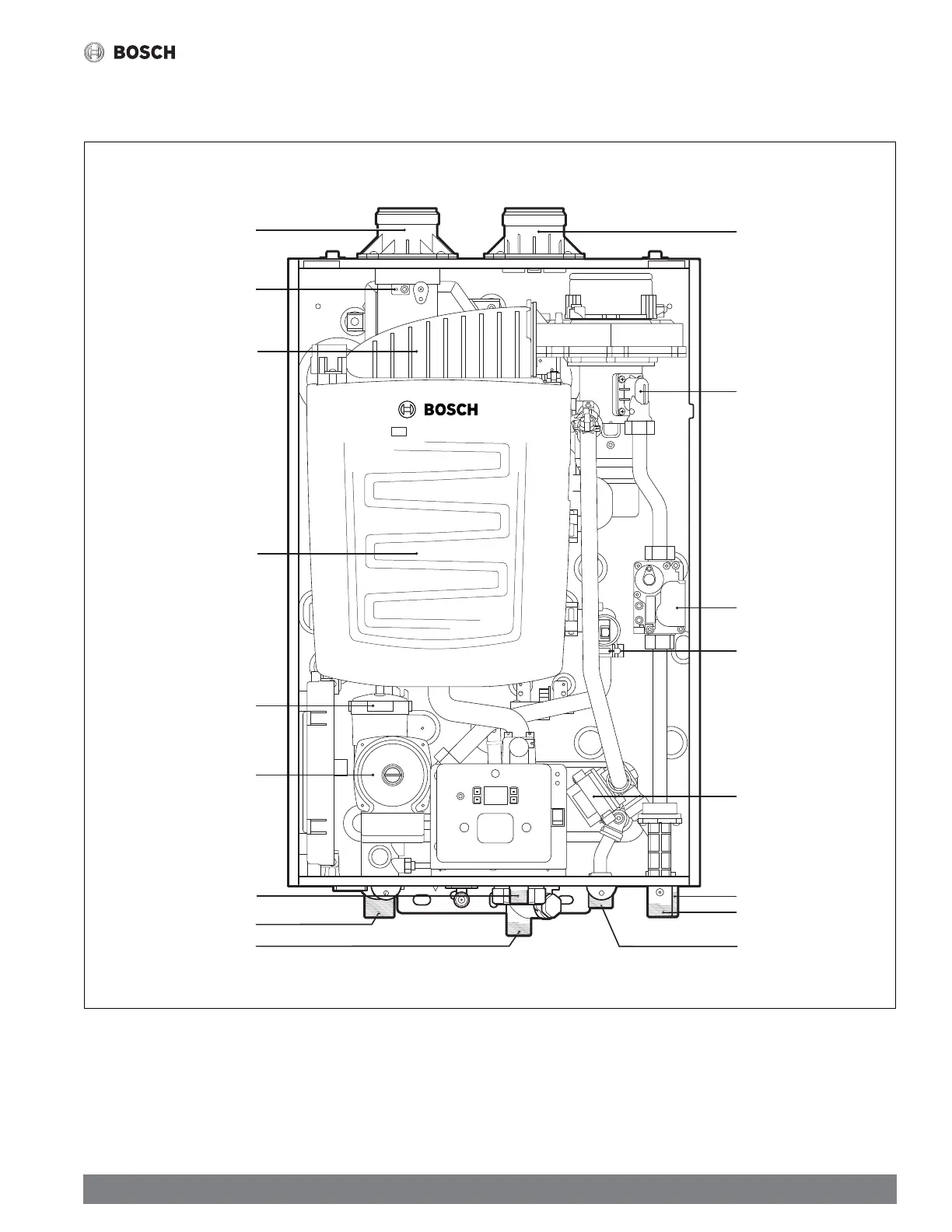

2.5 Components
Figure 5
Air intake connector
Gas connector
Gas valve
3-way valve
Pressure sensor
Space heating supply
Gas inlet
Hot water outlet
Burner hood
Heat Exchanger Cover
Pump
Air vent
Condensate drain
Space heating return
Cold water inlet
Exhaust temperature
sensor
Flue connector
