14
|
Installation Instructions
Singular Combi Boiler - BTC 439003301 B (2021/07)

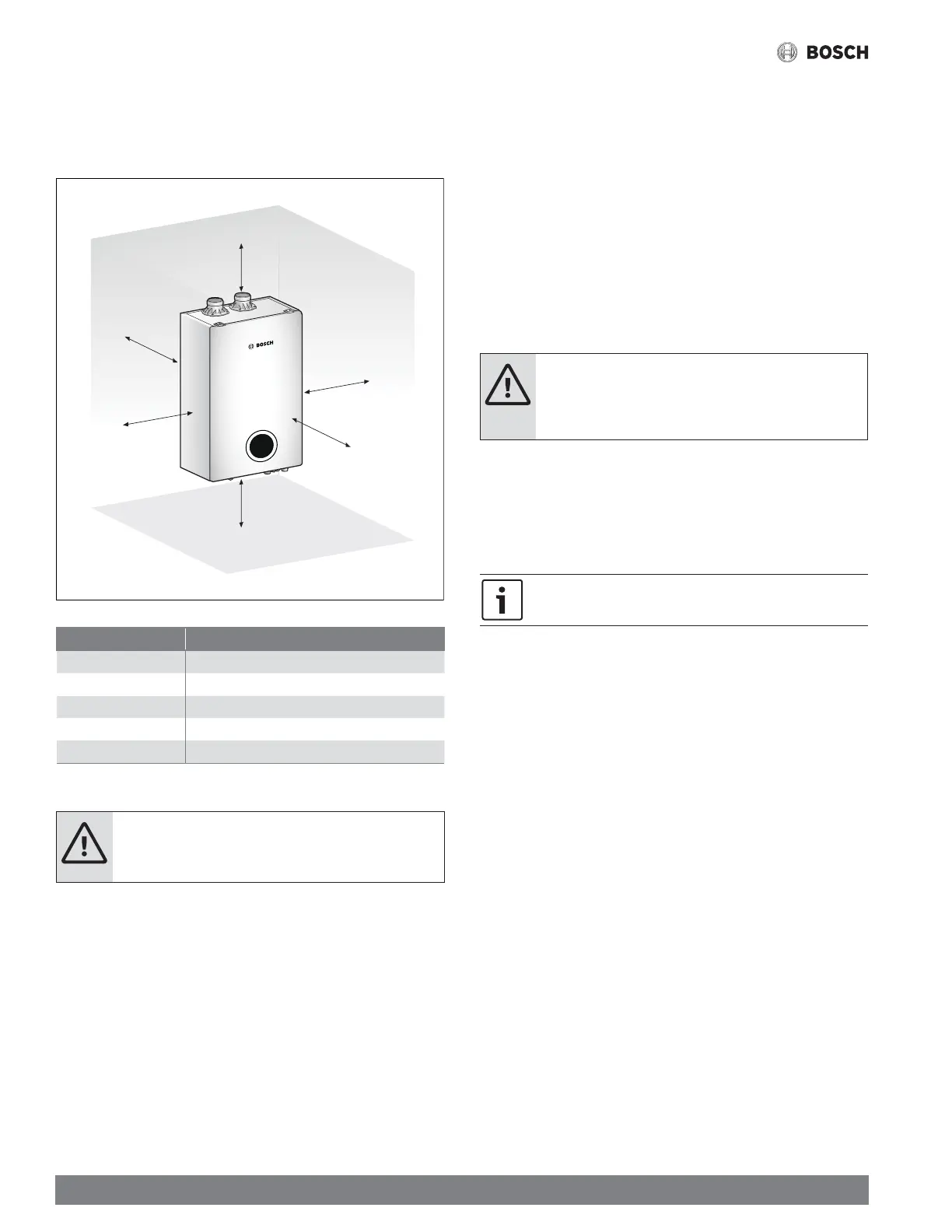

3.3.5 Clearances
The boiler should be installed in an area that allows for service and maintenance
access to utility connections, piping, fi lters, and traps. Ensure the following
clearances are maintained:
Figure 7
Side
Side
F
ron
t
Back
Top
Bottom
Clearance From Wall Mounting
Top 12 inches (305 mm) min.
Back 0.6 inches (15 mm) min.
Front 6 inches (152 mm) min.
Sides 3 inches (76 mm) min.
Bottom 12 inches (300 mm) min.
Table 4
WARNING: FIRE
Do not install the boiler on carpeting.
3.3.6 Clean, Debris and Chemical-Free Combustion Air
Do not install the boiler in areas where dust and debris may accumulate or
where combustion air can be contaminated.
Do not install the boiler in areas with greasy fumes or heavy amounts of
steam, if necessary, take measures to prevent fumes and steam from
entering the boiler.
Chemicals that are corrosive in nature should not be stored or used near
the boiler.
3.3.7 Position
WARNING: FIRE, EXPLOSION, PROPERTY DAMAGE
Do not mount the boiler to dry wall that has not been
reinforced.
The boiler can be mounted to the wall. For easy installation, use the mounting
bracket to mount the boiler to standard wall studs. If the strength of the wall is
insuffi cient and or if the framing is non-standard or uneven, reinforce the area
before installation. Avoid installation in unstable locations as the boiler will make
some operational noises while it is running.
Consider vent length and surrounding circumstances when mounting the
boiler.
