Installation Instructions
Singular Combi Boiler - BTC 439003301 B (2021/07)

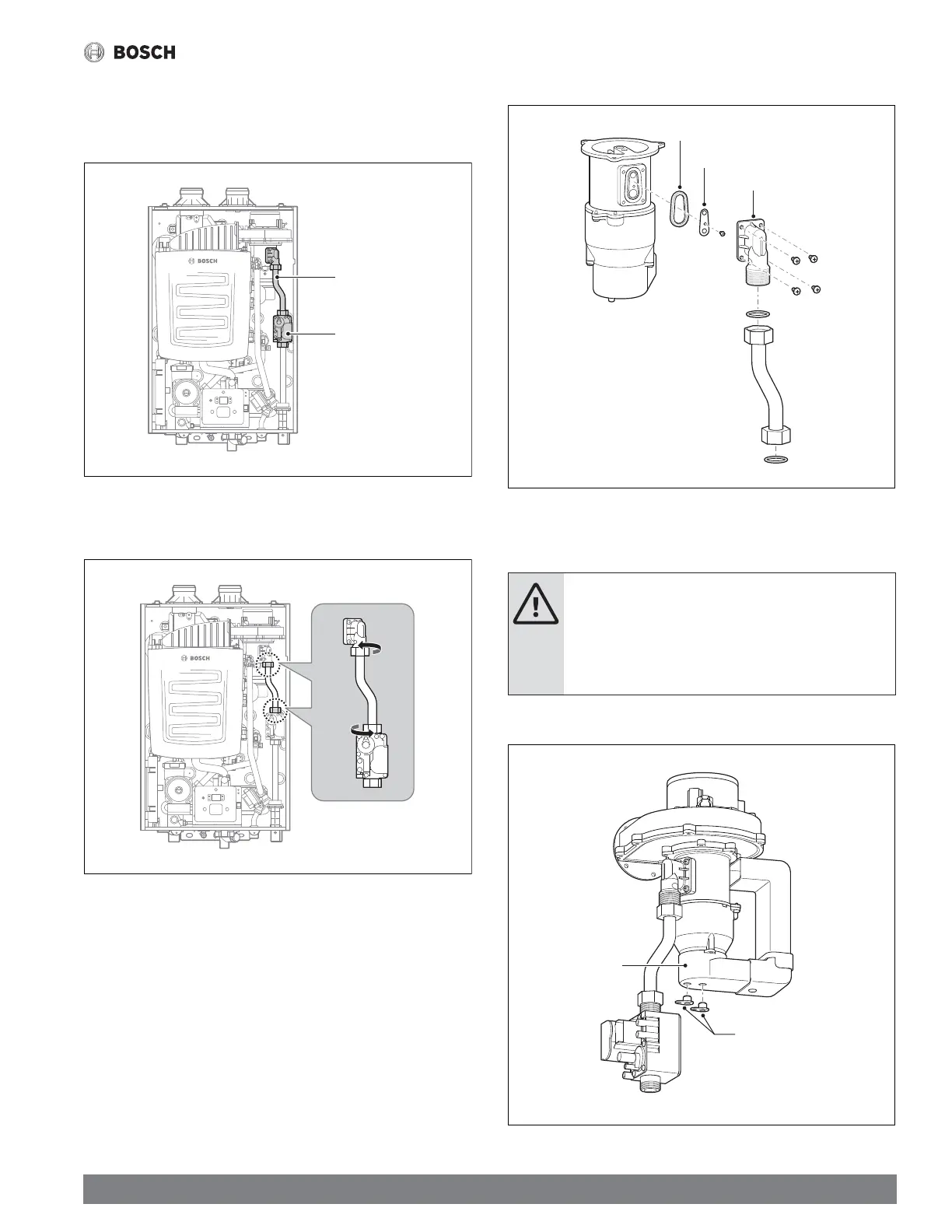

3. Once the front cover is removed, place it in a safe location to prevent
accidental damage. With the internal components exposed, locate the gas
connector and the gas valve.
Figure 78
Gas valve
Gas connector
4. Loosen the nut connecting the gas connector and the gas valve. Carefully
separate the gas inlet pipe.
Figure 79
5. Once the gas inlet pipe is detached, carefully remove the four screws on the
gas connector by hand using a Phillips screwdriver and pull the gas connector
away from the TDR damper.
6. Once the gas orifi ce is exposed, remove the screw that holds the gas orifi ce in
place and remove the gas orifi ce from its housing.
Figure 80
Packing
Orice
Gas connector
7. Replace the old orifi ce piece and the packing with new part for use with LP
gas. Ensure that the orifi ce is properly seated inside the port.
DANGER: FIRE, EXPLOSION
Inspect the packing whenever they are disassembled. The
packing must be in good condition and must be installed.
Failure to comply will cause a gas leak, resulting in severe
injury or death.
8. Remove two sealing packings from silencer.
Figure 81
Sealing packing
Silencer
To Next Page
