Horizontal Configurability | 11SM Series Heat Pump
6 720 220 406 (2015/02)Revised 02-15

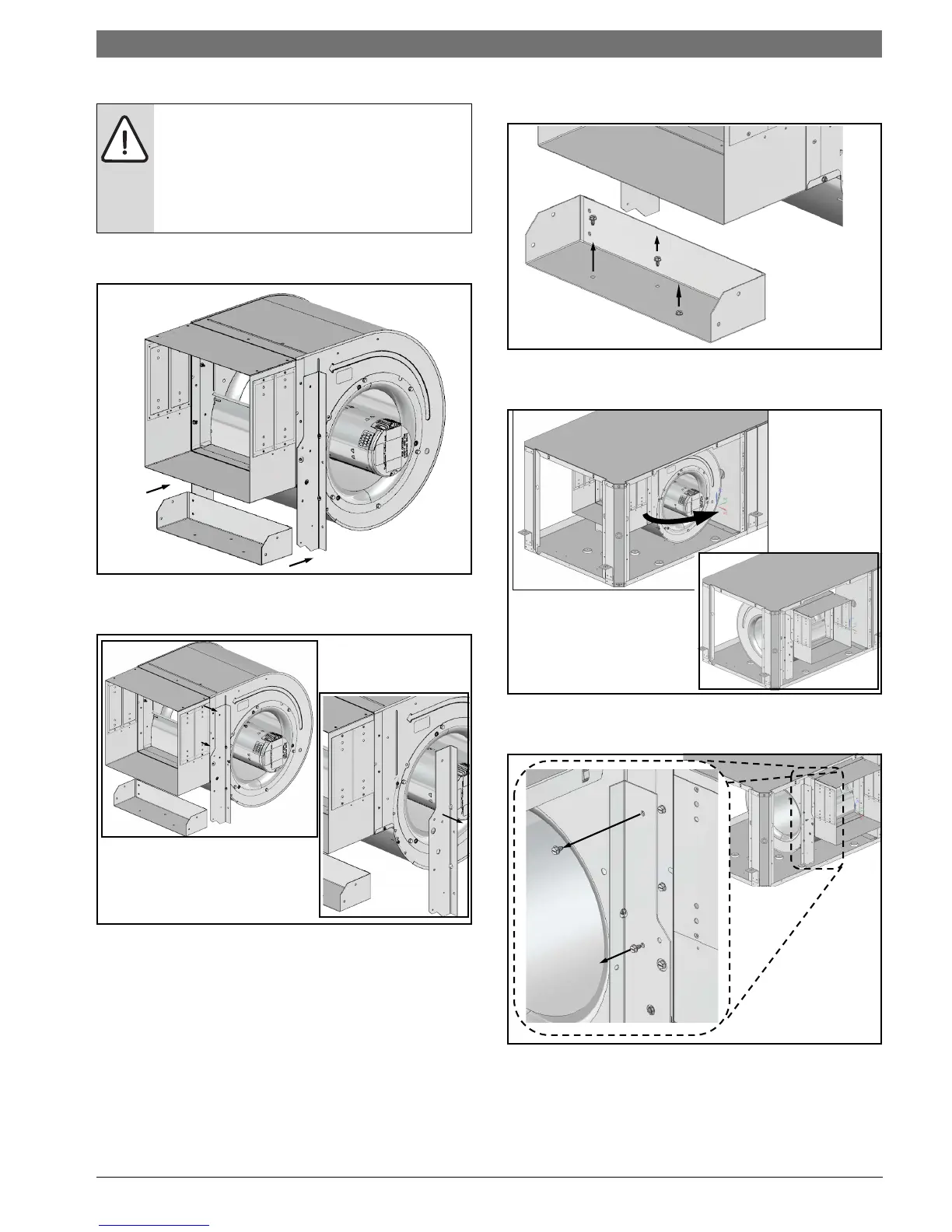

4. Slide blower assembly away from mounting
bracket. (Figure #25)
Figure # 25
5. Remove and retain (1) vertical bracket by
removing (2) screws. (Figure #26)
Figure # 26
6. Remove and discard horizontal blower bracket
by removing (3) screws. (Figure #27)
Figure # 27
7. Rotate the blower into its new
position.(Figure#28)
Figure # 28
8. Remove and retain remaining vertical blower
bracket by removing (2) screws. (Figure #29)
Figure # 29
NOTE: Air coil is in close proximity to the
blower. Air coil fins are easily damaged.
Great care must be taken during this step to
avoid coil damage. Shipping cardboard can
be used as protection during blower
removal and installation.
