Bosch SM024 - Wiring Harness Drawings

SM Series Heat Pump
SM Series Heat Pump6 720 220 406 (2015/02) Subject to change without prior notice
72 | WIRING HARNESS DRAWINGS
WIRING HARNESS DRAWINGS

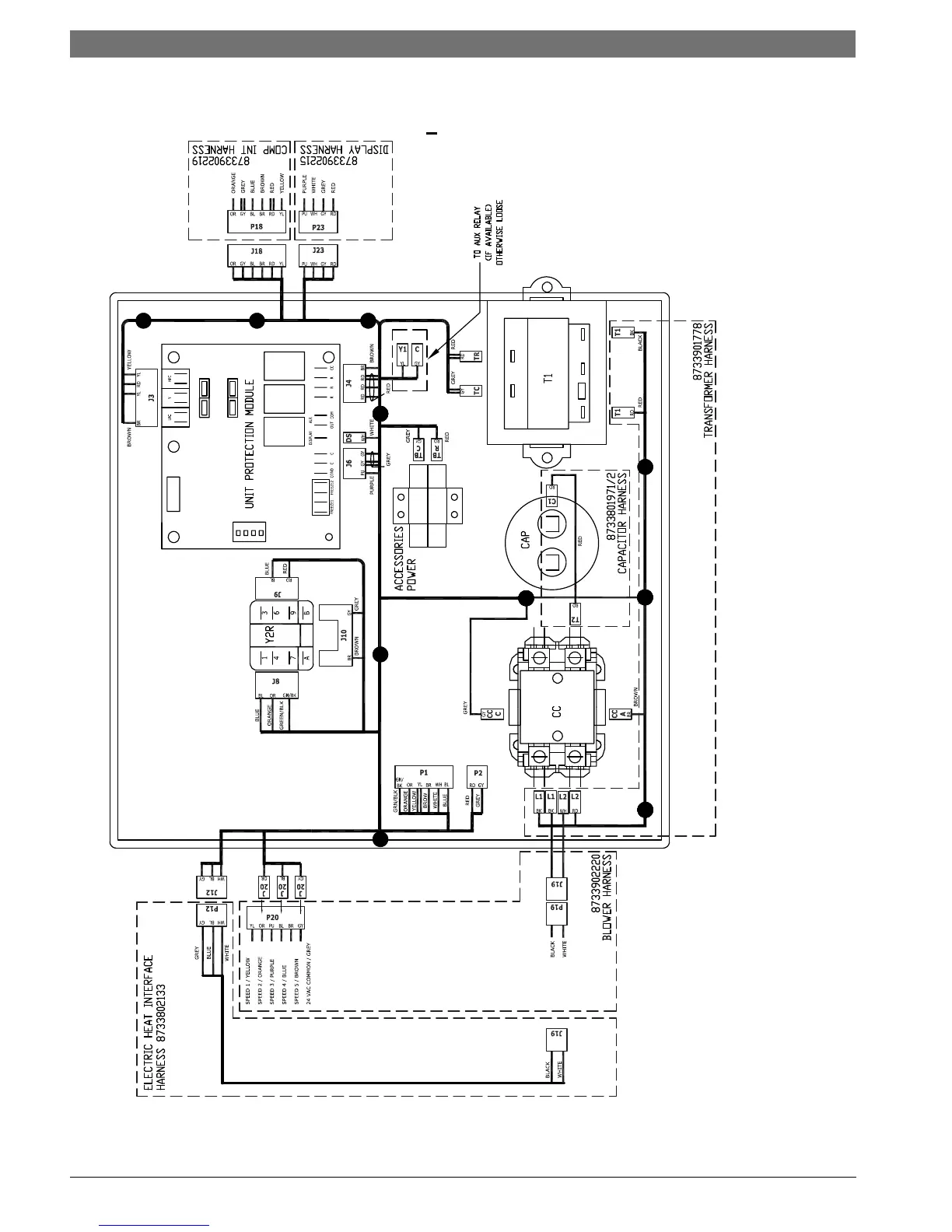

Constant Torque Motor (SM0**-***-***-T*)
Figure # 123
