Bosch Solution 2000 Quick Reference Guide

Appendices

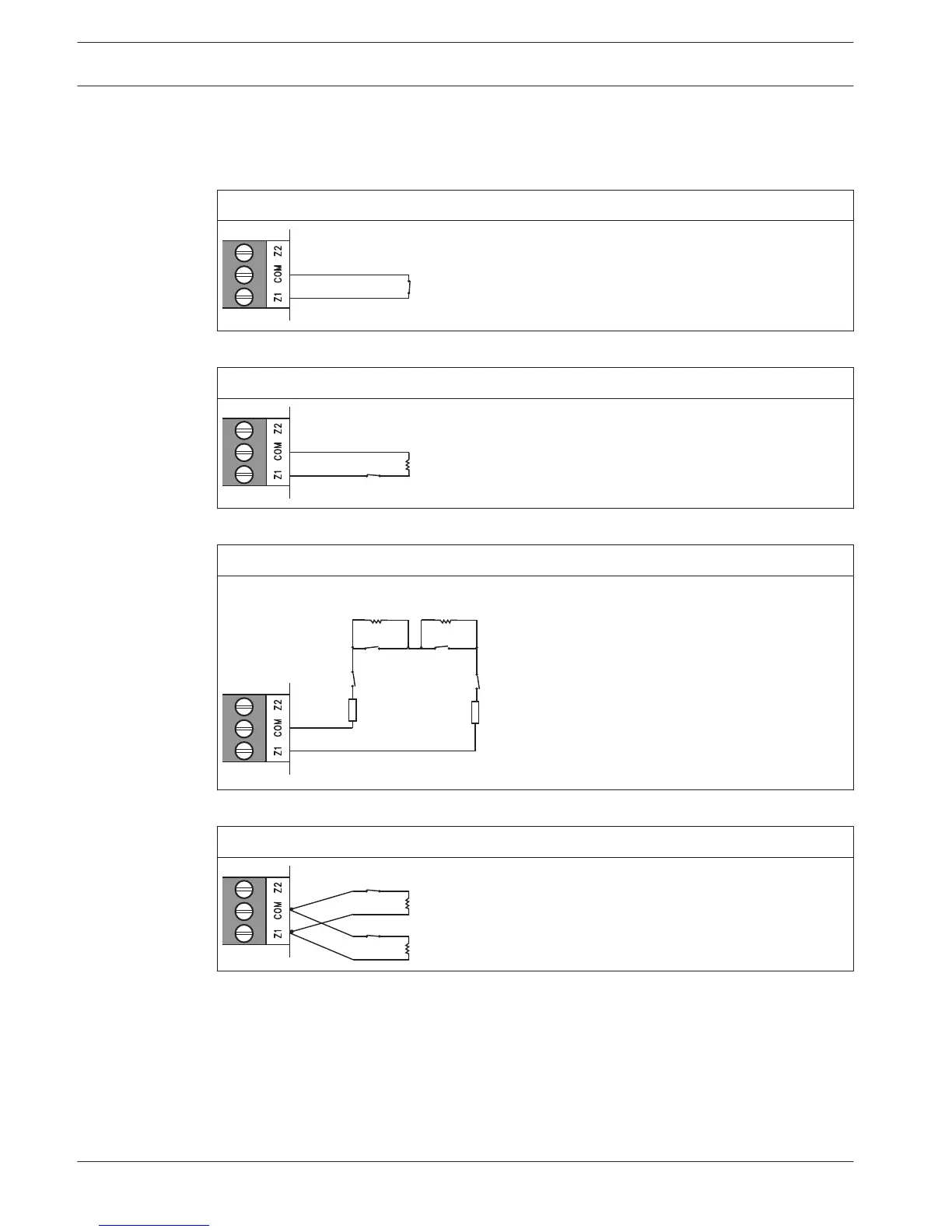

Connections for EOL Resistors
Zone without resistor (Location 266 = 0 (No EOL))
ZONE 1
N/C
Table 5.1: Connection 1
Single Zone input (Location 266 = 1k, 1k5, 2k2, 3k3, 3k9, 4k7, 5k6, 6k8, 10k, 12k, 22k)
ZONE 1
N/C
Table 5.2: Connection 2
Double Zone with tamper (Location 266 = 14 (Split EOL3k3 / 6k8 with tamper 1k))
ZONE 1
(3K3 EOL)
ZONE 5 (Solution 2000)
ZONE 9 (Solution 3000)
(6K8 EOL)
TAMPER
N/C
TAMPER
N/C
N/C N/C
1K0
1K0
Table 5.3: Connection 3
Double Zone input (Location 266 = 15 (Split EOL 3k3 / 6k8 ))
ZONE 1
(3K3 EOL)
ZONE 5 (Solution 2000)
ZONE 9 (Solution 3000)
(6K8 EOL)
N/C
N/C
Table 5.4: Connection 4
5
5.1
48 en | Appendices Control Panel
2015.06 | 03 | F.01U.298.027 Quick Reference Guide Bosch Security Systems, Inc.

Bosch Solution 2000 Specifications

General

Zones	8
Expandable Zones	Up to 16
Event Log	100 events
Partitions	2
Battery Backup	Yes
Weight	2.5kg
Backup Battery	12V 7Ah
Arming Options	Stay, Away
Communication	PSTN (optional IP module)
