Bosch SV024 - Dimensional Drawings - Vertical

50 | Dimensional Drawings SV Heat PumpSeries
SV Heat Pump Series8 733 914 818 (2014?08) Subject to change without prior notice

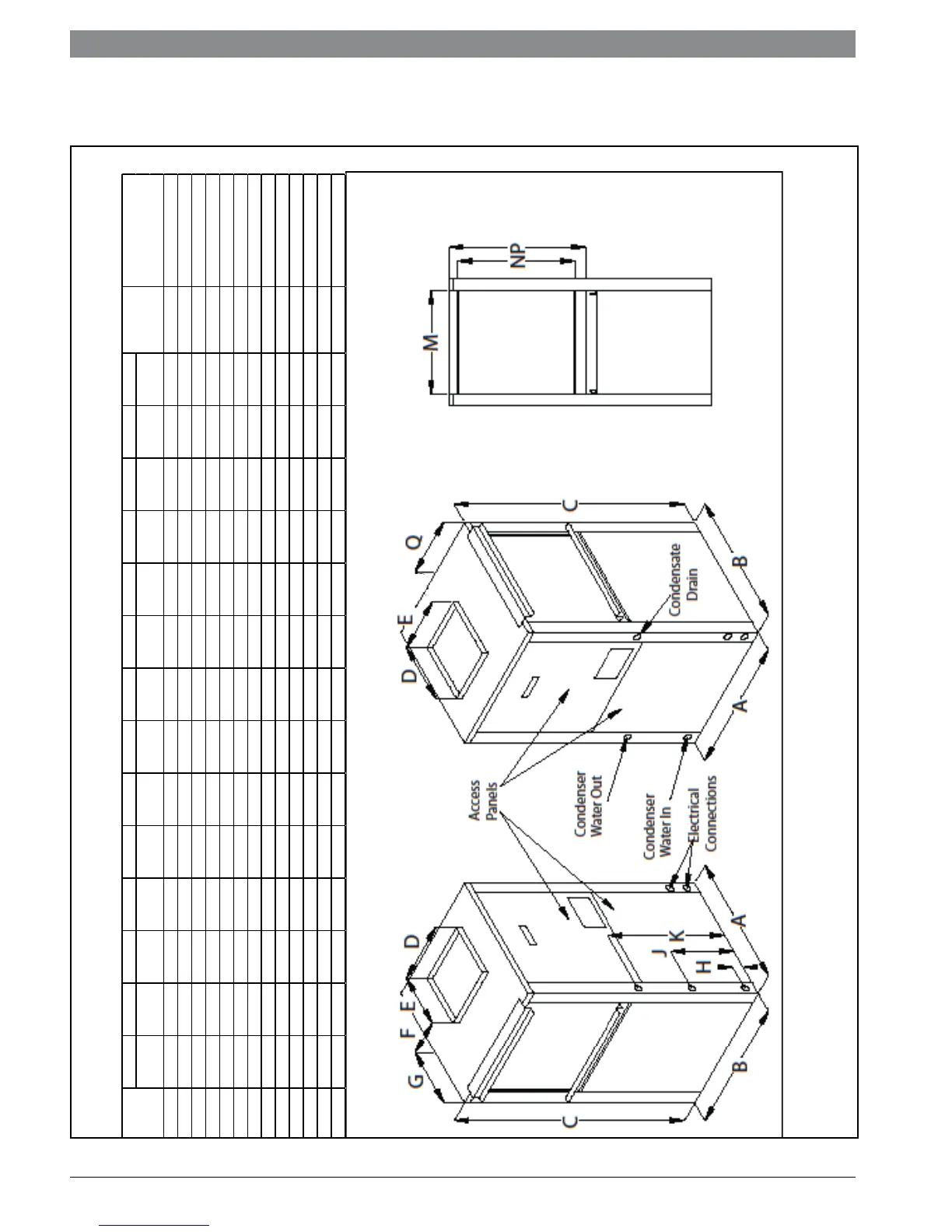

DIMENSIONAL DRAWINGS
Vertical
F
ABCDEFGHJKMNPQ
SV007 19 19 24.25 10 8 4.5 9.5 2.44 9.68 13.87 16 8 10 5.6 3/4" F.P.T. 10x16x1
SV009 19 19 24.25 10 8 4.5 9.5 2.44 9.68 13.87 16 8 10 5.6 3/4" F.P.T. 10x16x1
SV012 19 19 24.25 10 8 4.5 9.5 2.44 9.68 13.87 16 8 10 5.6 3/4" F.P.T. 10x16x1
SV015 21.5 21.5 32.25 10 8 5.75 12.1 2.85 8.45 15.87 20 14 16 8.1 3/4" F.P.T. 16x20x1
SV018 21.5 21.5 32.25 14 14 3.6 4.8 2.85 8.45 15.87 20 14 16 4.8 3/4" F.P.T. 16x20x1
SV024 21.5 21.5 39.25 14 14 3.6 4.8 2.8 14.95 18.87 20 18 20 4.8 3/4" F.P.T. 2
0x20x1
SV030 21.5 21.5 39.25 14 14 3.6 4.8 2.8 14.95 18.87 20 18 20 4.8 3/4" F.P.T. 20x20x1
SV036 21.5 26 43.25 15.5 14 6.5 4.2 2.75 10.77 18.87 24 22 24 4.2 3/4" F.P.T. 24x24x1
SV041 21.5 21.5 39.25 15.5 14 2 4.2 2.8 14.95 18.87 20 18 20 4.2 3/4" F.P.T. 20x20x1
SV042 21.5 26 43.25 15.5 14 6.5 4.2 2.75 10.77 18.87 24 22 24 4.2 3/4" F.P.T. 24x24x1
SV048 24 32.5 45.25 18 14 10 6 3.26 13.2 20.87 30 22 24 6 1" F.P.T. 24x30x1
SV060 24 32.5 45.25 18 14 10 6 3.26 13.2 20.87 30 22 24 6 1" F.P.T. 24x30x1
SV
070 26 33.25 58.25 18 15.5 10.8 7 2.92 13.36 25.87 30 30 32 7 1" F.P.T. 16x30x1 (2)
Width Depth Height
MODEL
Condenser
Water
Connections
Recommended
Standard Replacement
Nominal Filter Size
R/A Duct
Flg Width
R/A Duct
Flg Height
Filter
Rack
