Bosch TA035 - Typical Wiring Diagrams; Single Phase ECM Blower Motor Wiring; Status LEDs and Alarm Codes

6 720 220 046
Revised 03-11 Subject to change without prior notice
19
TA SeriesTypical Wiring Diagram

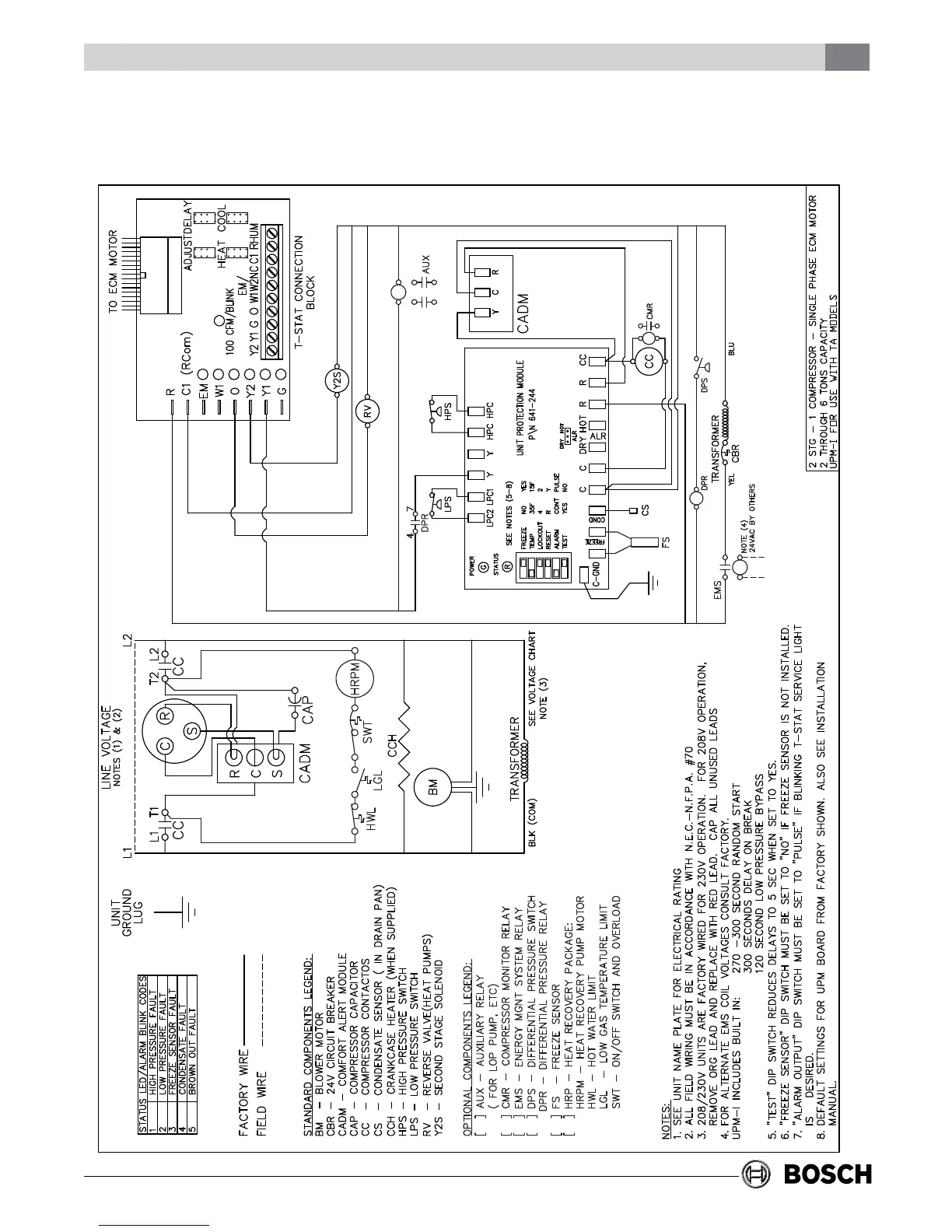

FIGURE 13
TYPICAL WIRING DIAGRAM
SinglePhaseECMBlowerMotor
