Bosch TA061 - Cooling Tower;Boiler Application; System Components and Connections

6 720 220 046
Revised 03-11 Subject to change without prior notice
17
TA Series
CoolingTower/BoilerApplication

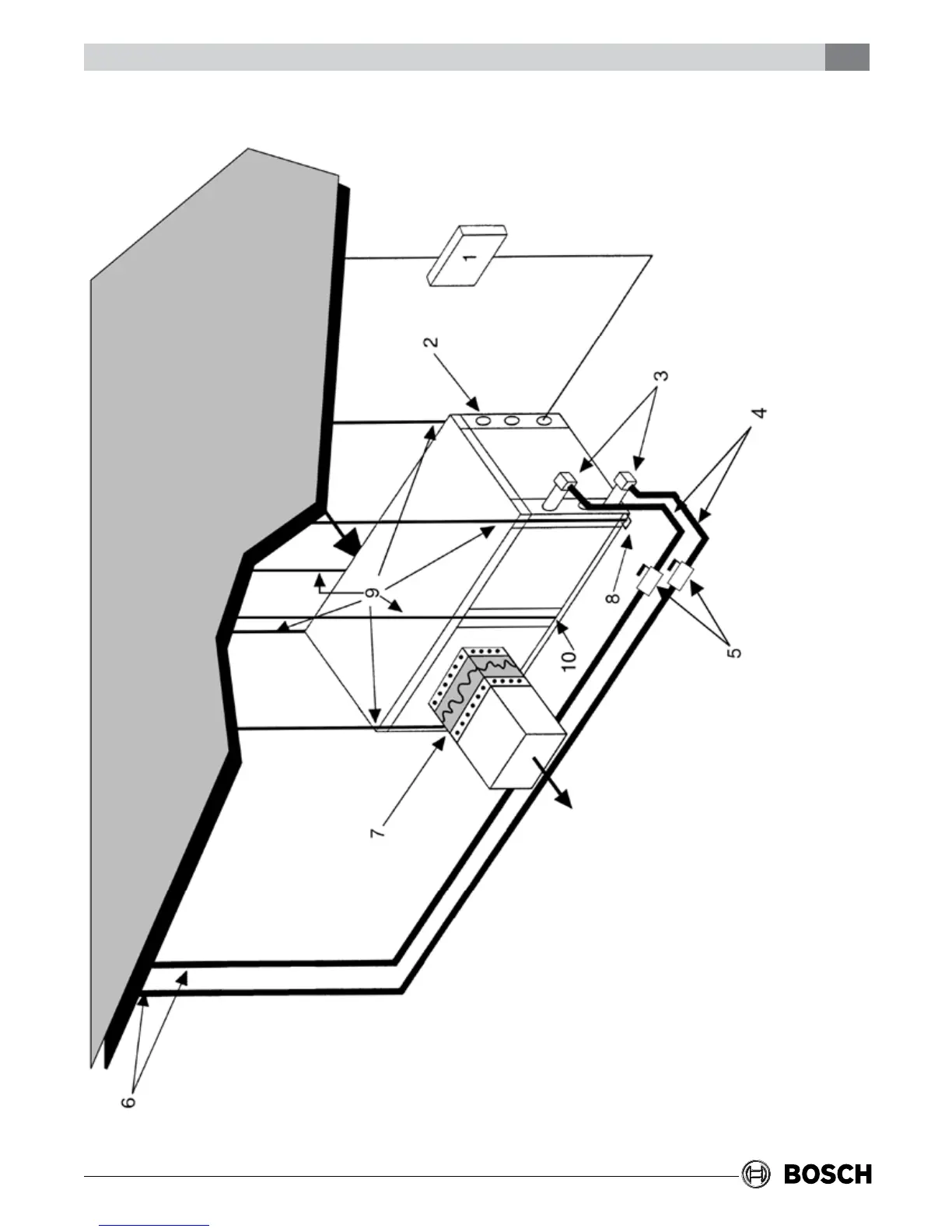

Figure11:CoolingTower/BoilerApplication
COOLING TOWER/BOILER APPLICATION 1. LINE VOLTAGE DISCONNECT (UNIT) 2. LOW VOLTAGE CONTROL CONNECTION 3. P/T PLUGS (Optional) 4. HOSE KITS (Optional) 5. BALL VALVES 6. SUPPLY AND RETURN LINES OF CENTRAL SYSTEM 7. FLEX DUCT CONNECTION 8. HANGING BRACKETS ASSEMBLY 9. THREADED ROD 10. HANGING BRACKET ASSEMBLY NOTE: SEE FIGURE #3 FOR CONDENSATE DRAIN CONNECTION
