Warning!
Trim ring can become deformed
If the trim ring is not turned completely, the screw slot on the
trim ring will not be aligned with the screw slot in the housing.
You cannot see the screw slot in the housing when you are
turning the screw in the slot in the trim ring. You can turn the
screw in the slot in the trim ring, but miss the screw slot on the
housing. Forcing the screw into the trim ring (without the screw
going into the screw slot in the housing) can deform the ring.
Replacing a Pendant Bubble
1. Using both hands, apply a firm counterclockwise (looking
up at the dome) rotational force on the pendant bubble
assembly to set the bubble latch.
2. Insert a small (2 mm) straight blade screw driver into the
release opening in the bubble trim ring to release the lock,
and then remove the screwdriver.

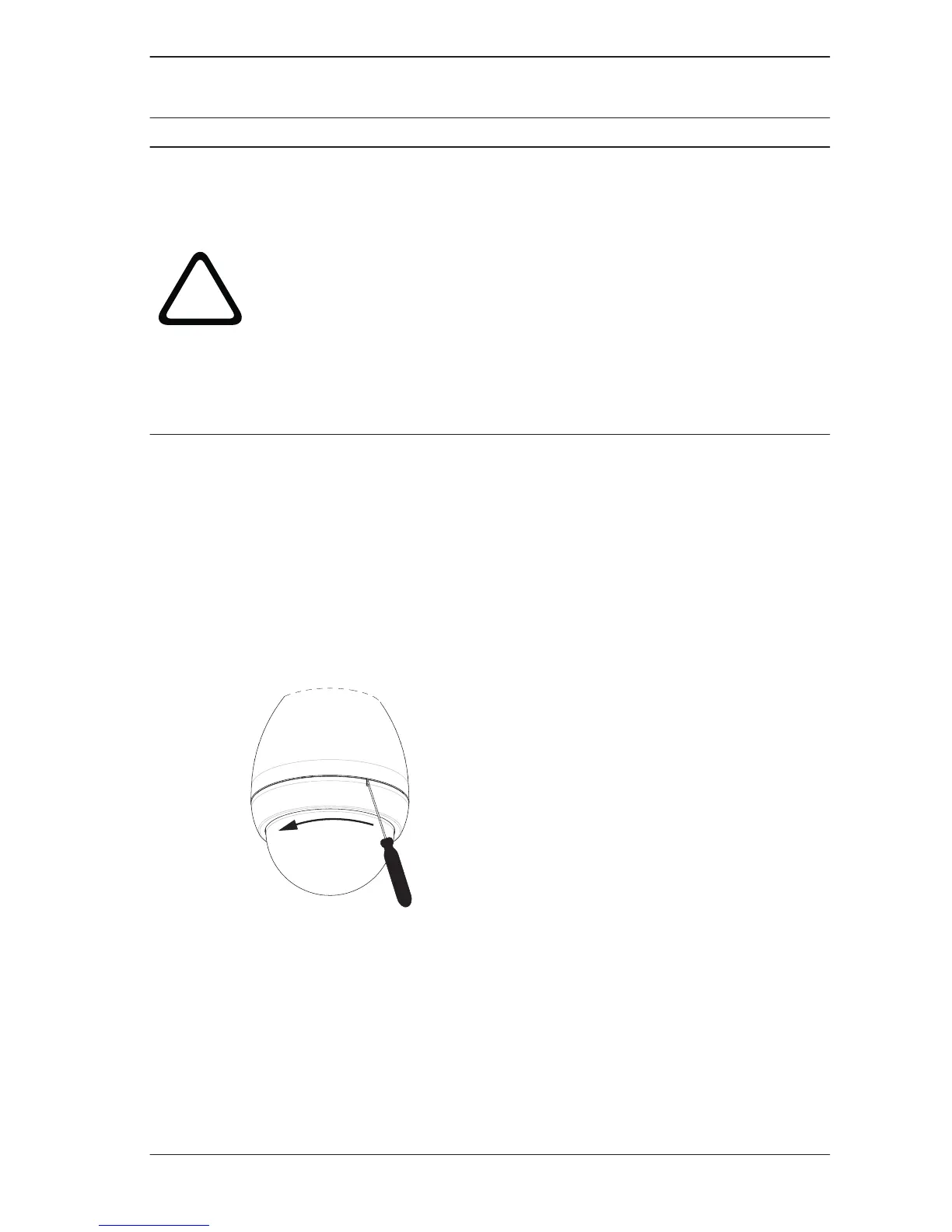

Figure 3.1: Pendant Bubble Release Opening
3. Firmly rotate the bubble counterclockwise approximately
20 degrees until the bubble assembly releases from the
pendant housing.
4. Locate the four tabs (item 1, below) inside the trim ring
that attach the trim ring to the bubble.
5. Gently push each tab out and down (away from the bubble)
to disengage the tabs.
3.4
AUTODOME Bubble
Replacement (VG4, VG5,
or 7000 Series)
Replacing an AUTODOME Bubble | en 17
Bosch Security Systems, Inc. 2013.06 | 2.1 | F.01U.288.194
